Lift Operation:
Before attempting to lift any vehicle, be
sure that:
a.) Vehicle individual axle weight does not exceed two lift
columns combined capacity.
b.) Lift forks are in secure contact with vehicle tires.
c.) Adequate overhead clearance is provided to raise
vehicle to desired height.
d.) Parking brake is released on vehicle.
e.) Adjustable forks must be equally spaced off centerline
of lift carriage, and adjusted to properly accommodate
the tire/wheel size.
f.) Ensure tires are properly inflated before lifting. DO NOT
exceed tire load rating when raising vehicle.
8. To Raise Lift:
a.) Ensuring indicators for desired columns are light in
green. Press up on joystick to raise vehicle until vehicle
tires clear the floor.
Check Fork Contact: Stop and check for secure fork
contact with tires, at all columns.
b.) Continue to raise the vehicle to desired height.
NOTE: While cycling the lift, you may observe the individual
columns slowing down and speeding up at various stages
of travel. This is a normal characteristic of the lift leveling
system.
Do Not go under vehicle unless all tires are in secure
contact with forks. Lower lift and repeat vehicle and/or lift
spotting and loading procedure if required.
c.) Press the Lower To Locks Button to lower columns onto
the locking latches.
While Using Lift: Avoid excessive rocking of vehicle
while on the lift.
Before Lowering Lift: Remove tool trays, safety stands,
etc. from area.
9. To Lower Lift:
a.) Ensuring indicators for desired columns are light in
green. Press up on joystick to raise vehicle off locks.
b.) Press down on joystick to lower lift. Pressing all the
way down is full speed lower while pressing part way
down is Slow Lower (1/3 speed). Observe that all
columns are lowering and vehicle remains level.
c.) Remain clear of forks and vehicle when lowering.
Observe pinch point WARNING decals.
d.) Reset the parking brake.
e.) Move all lift units away from the vehicle to provide an
unobstructed exit before removing the vehicle.

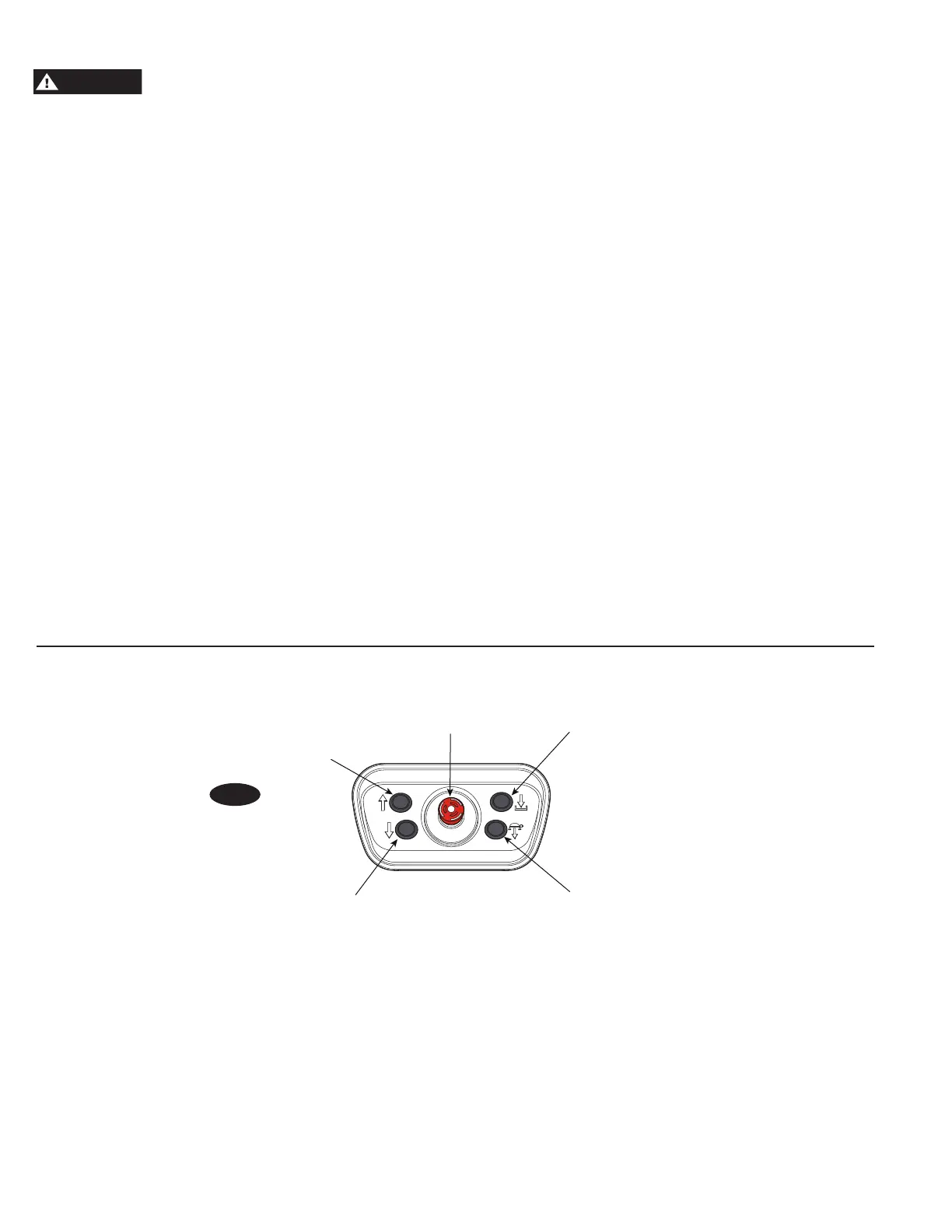

Column Mounted Motion Buttons
Standard Flex functionality:
The column motion buttons function only in single mode.
Single mode occurs prior to group operation and after
pressing the “resume button” which switch from grouped to
single mode.
E-STOP
(Emergency Stop)
Lower To Lock
Slower Lower
Down
Up
Flex Max functionality:
The column motion buttons function in all modes. It controls
all active columns.
Fig. 5a
