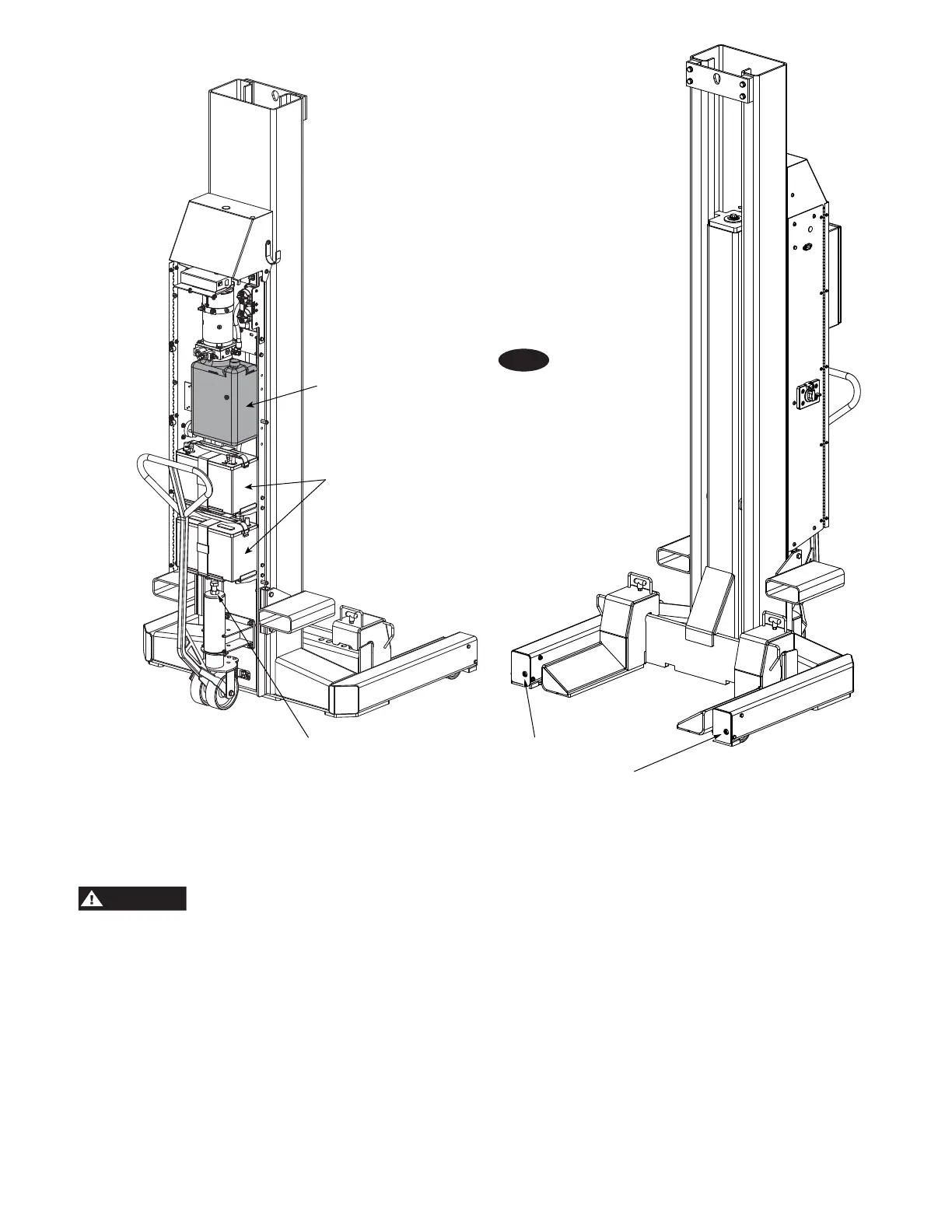

3
Power Unit Tank
Control Box And
Power Unit Cover
Removed For Clarity
Battery Locations
M20 Bolt
Adjust For Ground
Clearance
M10 Socket Head
Adjust For Ground
Clearance (if equipped)
Fig. 1
DO NOT use on asphalt. Lift must be
on concrete with a minimum strength of 3000PSI and a
minimum thickness of 4.5”. Maximum allowed floor slope is
1/8” per foot side to side of vehicle and 1/4" per foot front to
rear of vehicle. DO NOT use on a suspended floor structure
without specific approval from structural engineer.
Ensure vehicle tires are properly inflated before lifting.
DO NOT exceed tire load rating when raising vehicle.
DO NOT raise/lower only one side of a vehicle.
Lift only on same axle. DO NOT stagger between axles.
