Rotary SM122-100 Series User Manual

5
5. Remove the "hair pin" cotter from the clevis pin.
6. Remove clevis pin, .
7. Replace cylinder, then do items 1-6 in reverse.

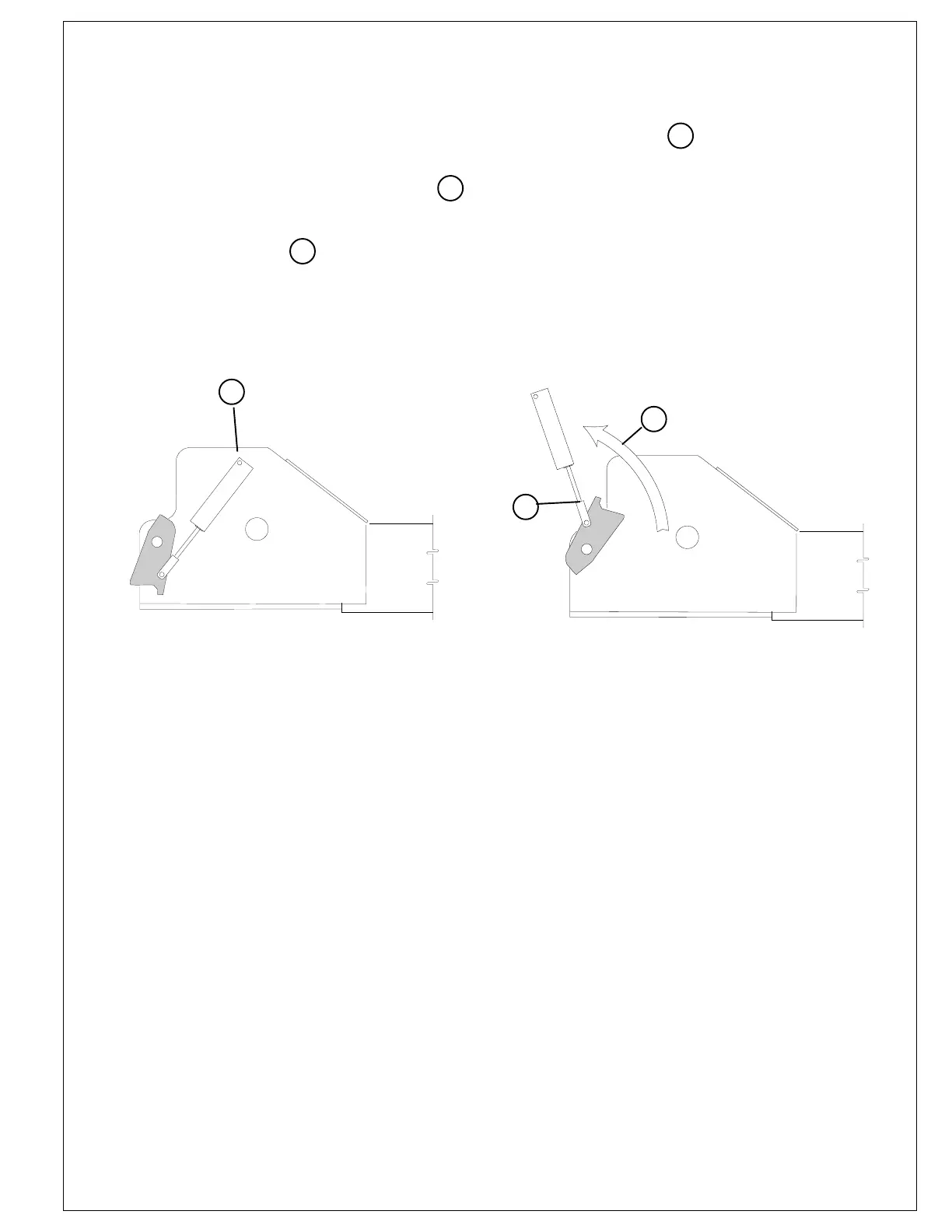

1. Lower lift onto blocks so that the latches are free to
rotate.
2. Remove air line from cylinder elbow.
3. Remove bolt that holds the cylinder to the yoke, .
4. Rotate the latch and cylinder assembly until the clevis
pin is above the yoke end, .
AIR CYLINDER REPLACEMENT
INSTRUCTIONS
1
2
3
1
3
2
