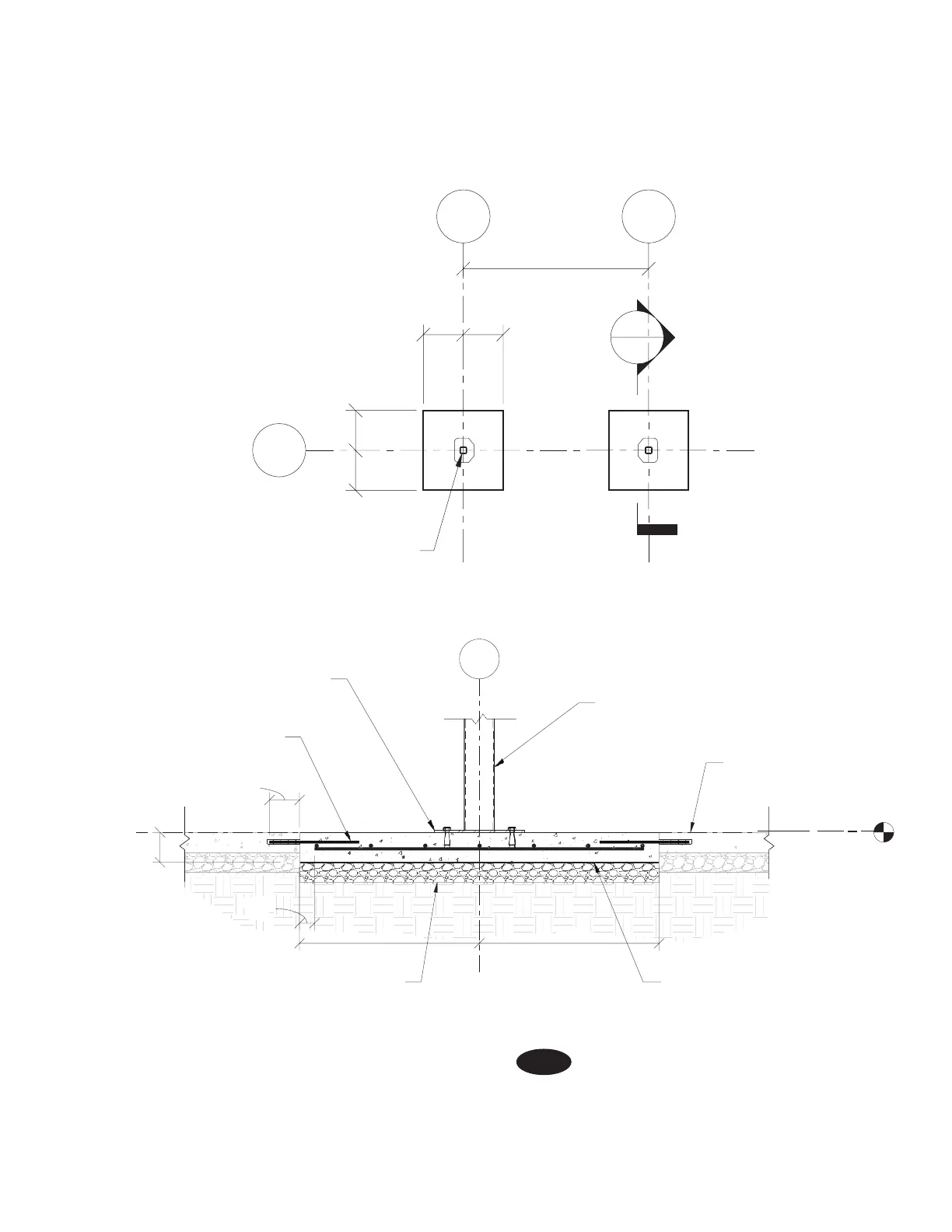

3' - 0" 3' - 0"
VERTICAL LEG OF LIFT
AS SPECIFIED
TYP
TYP
2
S-100
CL
LIFT BASE PLATE &
ANCHORS AS SPECIFIED
#4 x 1'-6" SMOOTH DOWEL
@ 16" O.C. CENTERED
IN EXIST SLAB W/OUT ADHESIVE
6"
EMBED
VERTICAL LEG OF LIFT
AS SPECIFIED
EXIST FLOOR SLAB-ON-GRADE
FIELD VERIFY THICKNESS
EXIST F.F.E.
0"
3" CLR
TYP
3' - 0"
3' - 0"
NEW 4" MIN COMPACTED
CRUSHED STONE BELOW
FOOTPRINT OF FOUNDATION
NEW 3,000 PSI (28-DAY STRENGTH) MIN
CONCRETE FOUNDATION CENTERED
ON EACH LIFT BASE PLATE
W/ #4 BARS @ 12" O.C. EACH WAY
CENTERED IN FOUNDATION
POSITION REINFORCING AS REQUIRED
TO MISS LIFT ANCHORS
CL
