3.5) Maintenance (Heavy) - related information
3.5.1) Turbocharger assy. - removal
Preparation:
-Drain oil
- Remove the air filter
- Remove turbocharger / intercooler connection

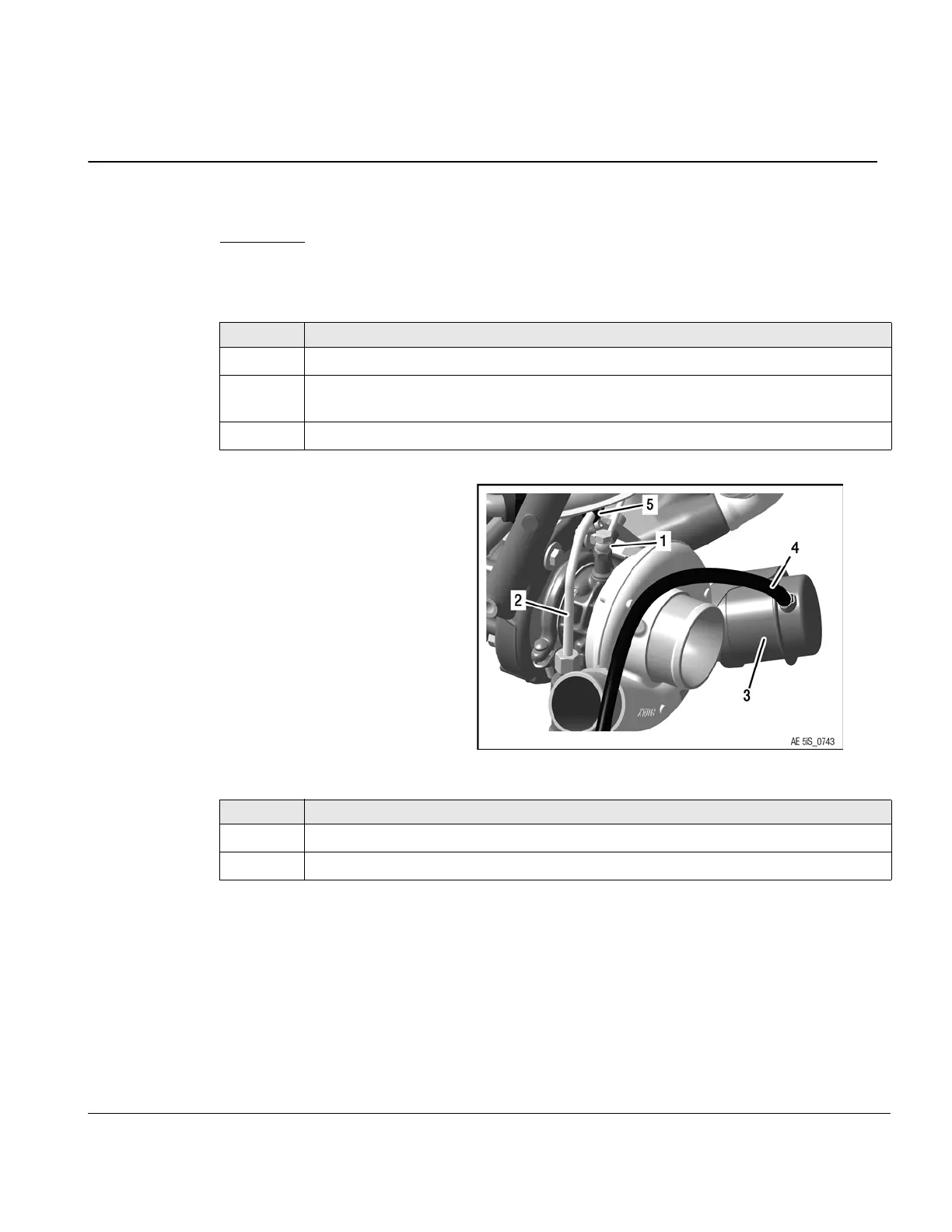

Fig. 2
Step Procedure
1 Disconnect the turbo pressure oil line and the suction oil line.
2
Remove the cable clamp (Allen screw M5x20 and lock nut) for supporting the
suction line on the turbocharger bracket.
3 Remove hose from wastegate regulator.
Step Procedure
4 Remove M8 hex. nuts and washers from turbocharger flange.
5 Remove M8x30 screws to disconnect turbocharger from exhaust manifold assy.
1 Turbo pressure oil line
2 Suction oil line
3 Wastegate regulator
4 Hose (wastegate regulator)
5 Cable clamp
