IDU-Duct 6
5. Accessories

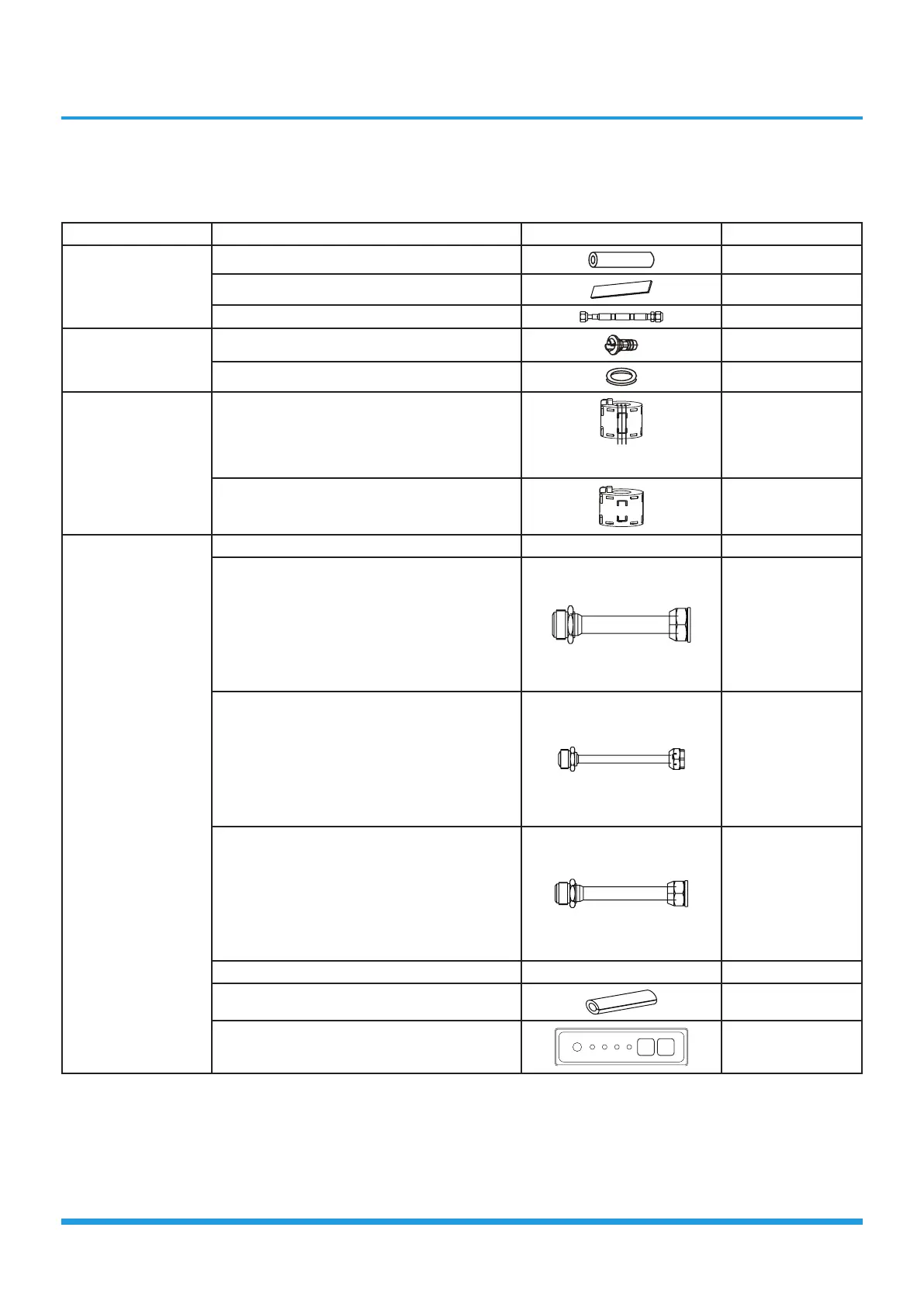

The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to in-
stall the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or equipment failure.
Name Shape Quantity
Tubing & Fittings
Soundproof / insulation sheath
2
Seal sponge (some models) 1
Orifice (some models)
1
Drainpipe Fittings
(for cooling & heating)
Drain joint (some models)
1
Seal ring (some models) 1
EMC Magnetic Ring
(some models)
Magnetic ring(Wrap the electric wires S1 & S2 ( P
& Q & E ) around the magnetic ring twice)
S1&S2(P&Q&E)
1
Magnetic ring(Hitch on the connective cable
between the indoor unit and outdoor unit after
installation.)
1
Others
Owner‘s manual&Installation manual - 1
Transfer connector(�12.7-�15.9)/(�0.5in-
�0.63in)(Packed with the indoor unit )
NOTE: Pipe size may differ from appliance
to appliance. To meet different pipe size
requirements, sometimes the pipe connections
need a transfer connector installed on the
outdoor unit.
1
(on some models)
Transfer connector(�6.35-�9.52)/(�0.25in-
�0.375in)(Packed with the indoor unit )
NOTE: Pipe size may differ from appliance
to appliance. To meet different pipe size
requirements, sometimes the pipe connections
need a transfer connector installed on the
outdoor unit.
1
(on some models)
Transfer connector(�9.52-�12.7)/(�0.375in-
�0.5in)(Packed with the indoor unit )
NOTE: Pipe size may differ from appliance
to appliance. To meet different pipe size
requirements, sometimes the pipe connections
need a transfer connector installed on the
outdoor unit.
1
(on some models)
Connecting wire for display (2m) - 1(on some models)
Cord protection rubber ring
1(on some models)
Display panel
*Just for testing purposes only
1(on some models-
KJR-120G,KJR-120H)
Optional accessories:
• There are two types of remote controls: wired and wireless.
• Select a remote controller based on customer preferences and requirements and install in an appropriate place.
• Refer to catalogues and technical literature for guidance on selecting a suitable remote controller.
