 Indoor Unit Disassembly 5 
1.2 Electrical Parts (Antistatic gloves must be worn.)
Procedure Illustration
1) Remove 3 screws of electronic
control box and 1 screw of earth
wire.(see CJ_MCD1_006)
2) Disconnect the connectors of
temperature sensor, pump, motor
and water level switch. (see CJ_
MCD1_006)
3) Remove the electronic control box
subassembly. (see CJ_MCD1_006)
4) Remove 2 screws of the main control
board and 2 screws of earth wire.
(see CJ_MCD1_007)
5) Disconnect connectors and then
remove the main control board. (see
CJ_MCD1_007)

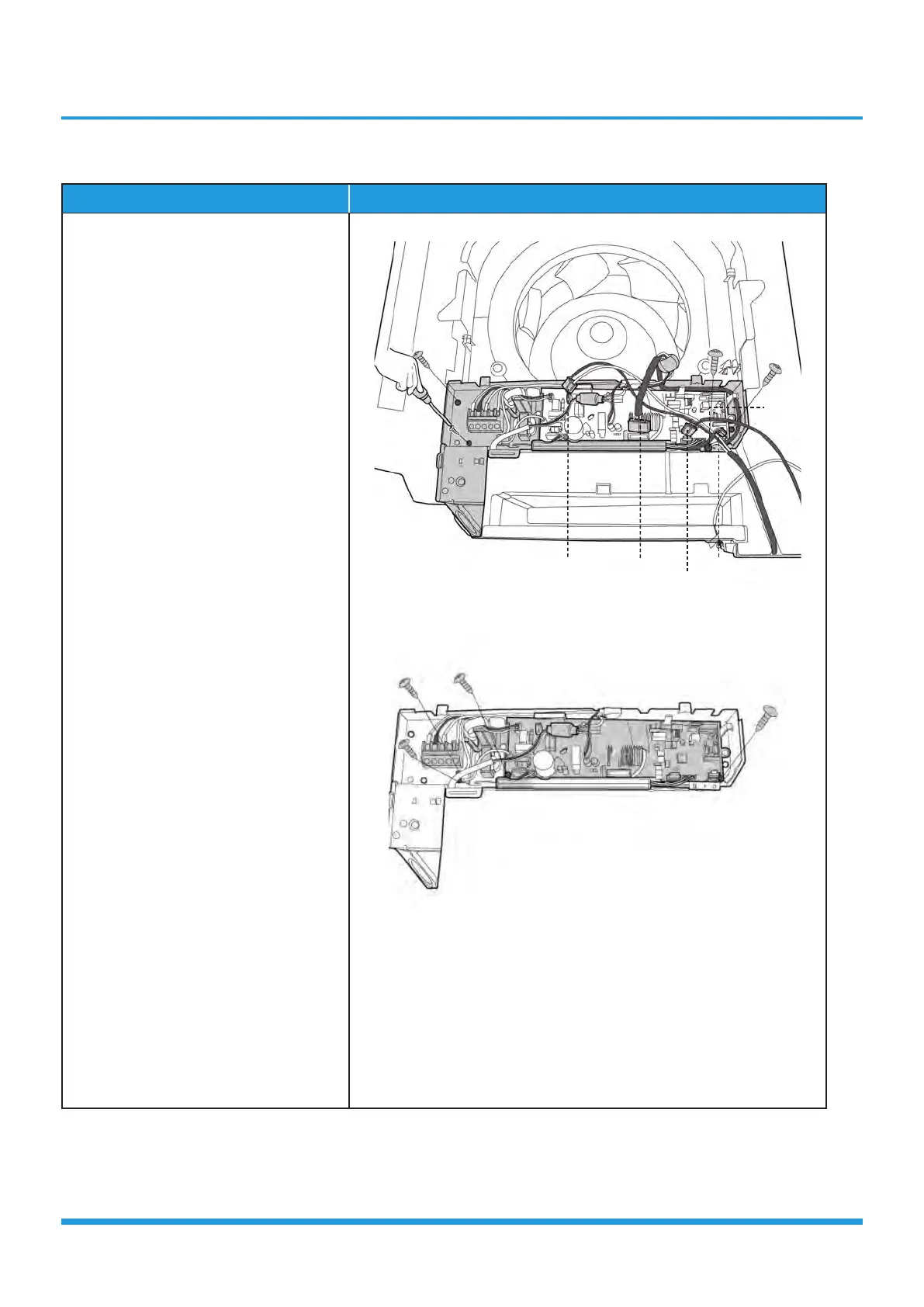

CJ_MCD1_006
CJ_MCD1_007
Note: This section is for reference only. Actual unit appearance may vary.
Pump
Water level switch
Temperature sensor
Earth wire
Fan motor
To Next Page
