49
FA ROTEX GW - 09/2012
12 x Technical data
Tab. 12-7 Resistance values of the temperature sensor
Q Heating output m
H
Flow heating network

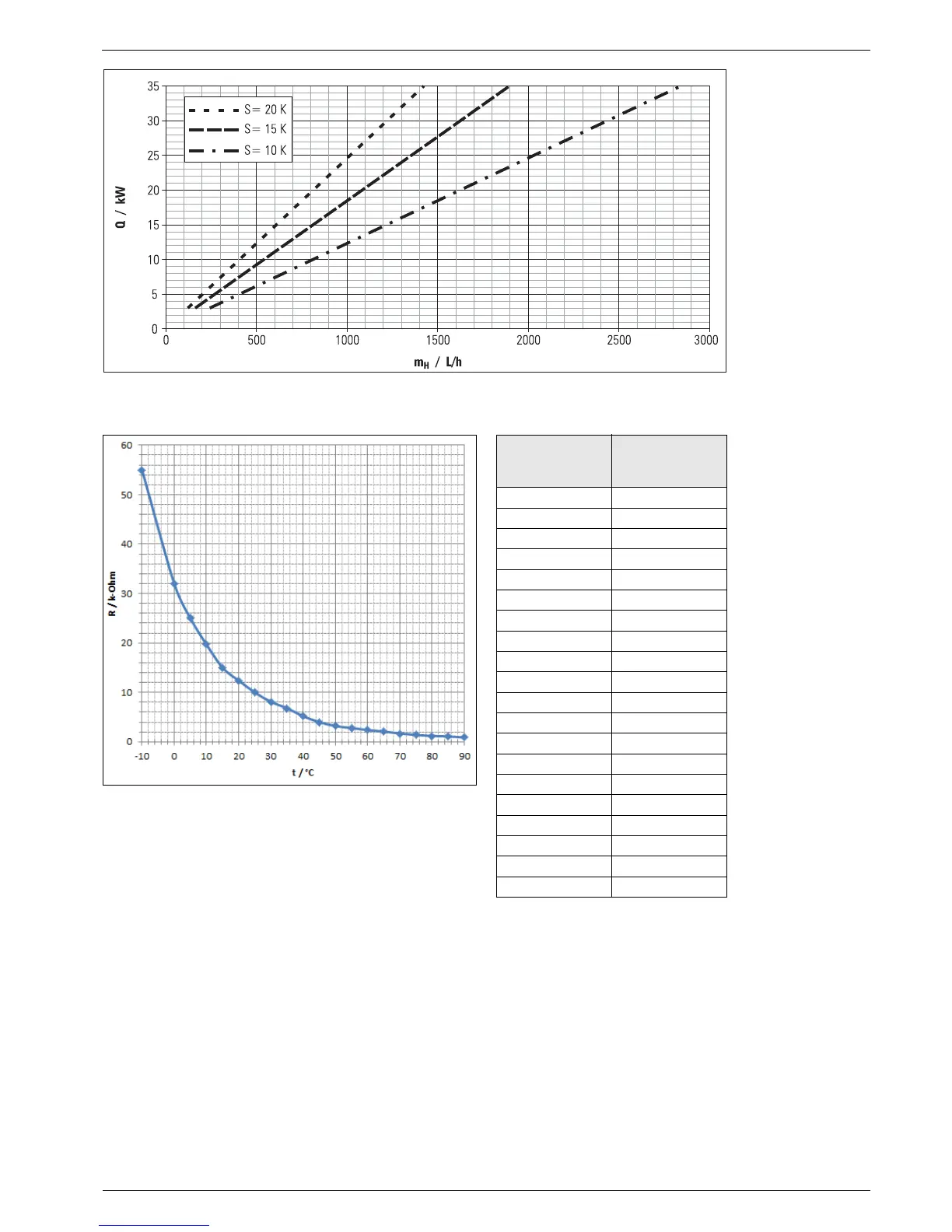

Fig. 12-5 Required throughput volumes dependent on the heating output and the design temperature spread
R Sensor resistance t Temperature
Fig. 12-6 Resistance characteristic line of the temperature sensor
Measured
temperature in
°C
Sensor
resistance in
Kilo-Ohm
(1
-10 55.0
032.0
525.0
10 19.7
15 15.0
20 12.4
25 10.0
30 8.1
35 6.8
40 5.2
45 4.0
50 3.2
55 2.8
60 2.4
65 2.1
70 1.7
75 1.4
80 1.2
85 1.1
90 0.9
(1 According to standard or manufacturer's de-
tails
