Rotex GW User Manual

48
FA ROTEX GW - 09/2012
12 x Technical data
Relative
burner
output
(RQ in %)
GW 22C GW 26C
Burner
load
(Q in kW)
Heating output
(P in kW)
80/60 °C
Heating output
(P in kW)
50/30 °C
Burner load
(Q in kW)
Heating output
(P in kW)
80/60 °C
Heating output
(P in kW)
50/30 °C
100 22.4 21.6 24.2 27.1 26.2 29.1
90 20.6 19.9 22.3 25.0 24.2 26.9
80 18.9 18.2 20.4 22.9 22.1 24.6
70 17.1 16.5 18.5 20.8 20.1 22.4
60 15.4 14.8 16.6 18.7 18.0 20.1
50 13.6 13.1 14.7 16.6 16.0 17.9
40 11.8 11.3 12.8 14.5 14.0 15.6
30 10.1 9.6 10.9 12.4 11.9 13.4
20 8.3 7.9 9.0 10.3 9.9 11.1
10 6.6 6.2 7.1 8.2 7.8 8.9
0 4.8 4.5 5.2 6.1 5.8 6.6

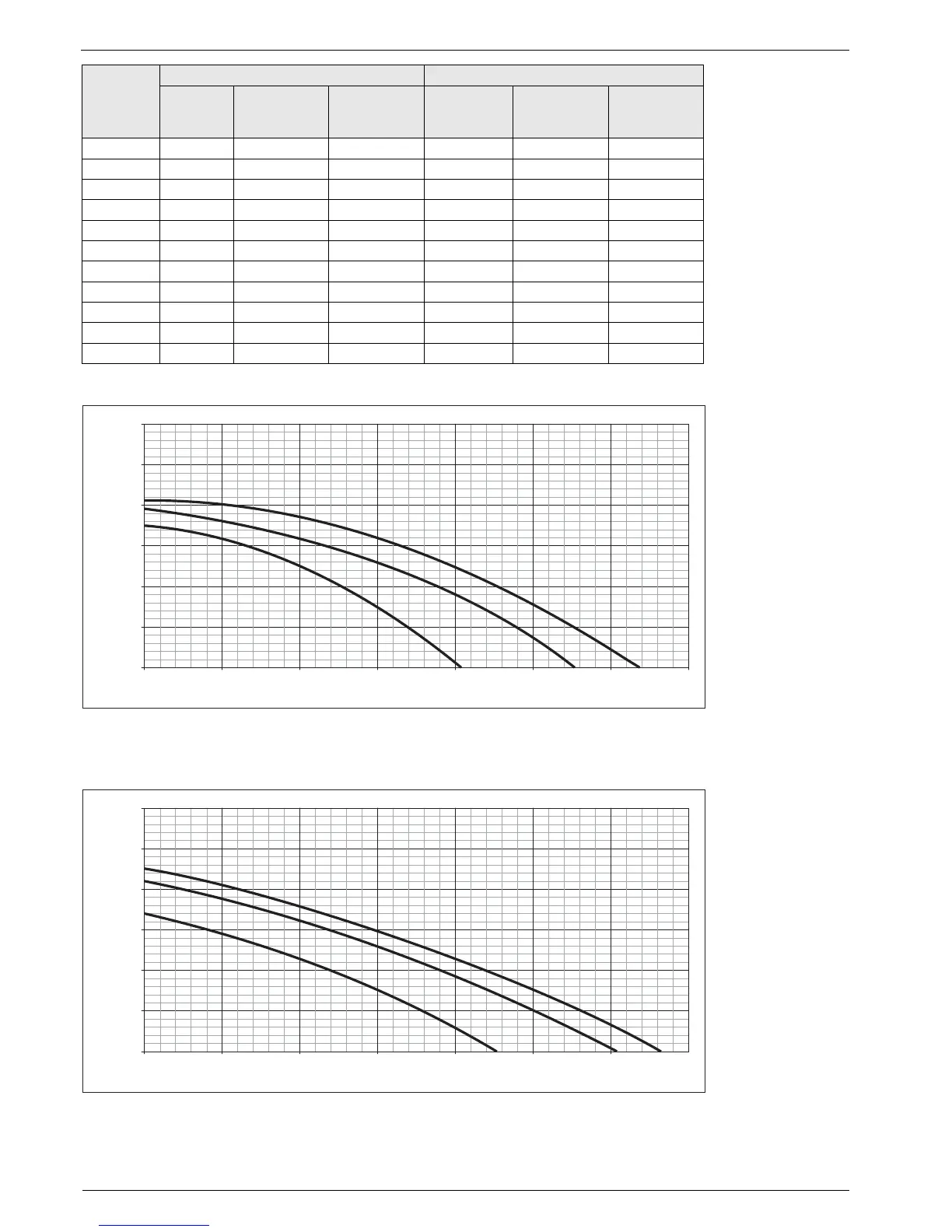

Tab. 12-6 Output limits on the ROTEX GW
' p
R
Remaining pumping height
m
H
Flow heating network
I, II, III Pump stages integrated heating circulation pump
Fig. 12-3 Residual delivery height ROTEX 22C (heating side)
m / L/h
H
I
II
III
p / mbarD
R
0
100
200
300
400
500
600
0 200 400 600 800 1000 1200 1400
' p
R
Remaining pumping height
m
H
Flow heating network
I, II, III Pump stages integrated heating circulation pump
Fig. 12-4 Residual delivery height ROTEX GW 26C (heating side)
m / L/h
H
III
III
p / mbarD
R
0
100
200
300
400
500
600
0 200 400 600 800 1000 1200 1400
