3.3 Indoor unit
3.3.1 To unpack the indoor unit
a
a
a General safety precautions, indoor unit installation manual,
operation manual and addendum book for optional
equipment
INFORMATION
Do NOT throw away the upper cardboard cover. On the
outside of the cardboard cover, the installation pattern is
printed.

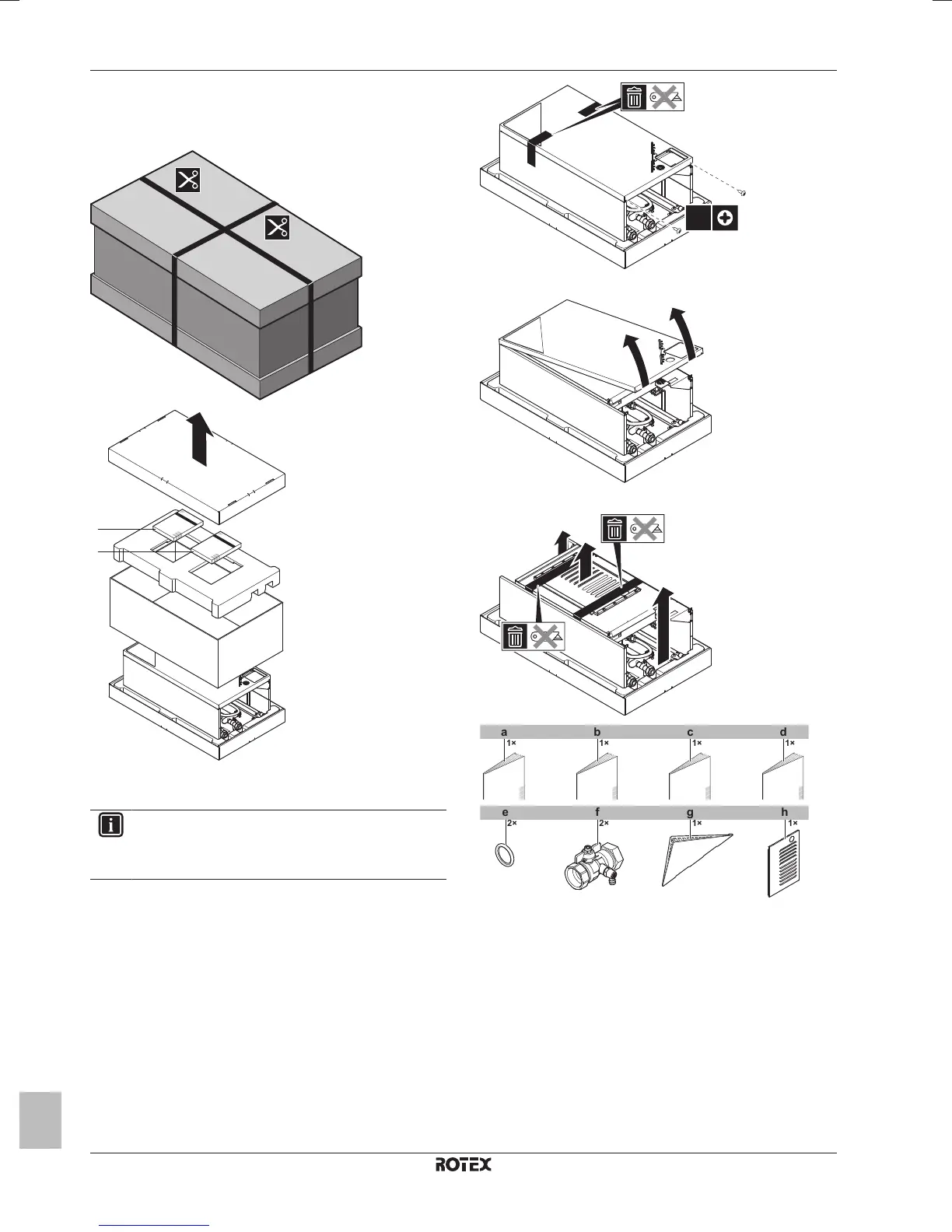

3.3.2 To remove the accessories from the
indoor unit
The general safety precautions, the indoor unit installation manual,
the operation manual and the addendum book for optional
equipment are located in the upper part of the box. Follow the
procedure below to remove the other accessories.
1 Remove the tape.
2×
2 Tilt the bottom side of the front panel upwards and remove it.
3 Remove the accessories.
g
e+f
h
2× 1× 1×
1× 1× 1× 1×
a b c d
f
2×
e g
h
a General safety precautions
b Addendum book for optional equipment
c Indoor unit installation manual
d Operation manual
e Sealing ring for shut-off valve
f Shut-off valve
g User interface cover
h Top plate of indoor unit
4 About the units and options
