Touchline, quick guide
The Roth Touchline underoor heating system consists of 1 - 5
control devices and a number of room thermostats.
The control device can operate functions such as pump stop/start,
boiler enable signal, actuator motioning and cooling regulation
from heat pumps.
NB! All of the Touchline controller terminal outputs are designed
as 24V or 230V potential relay switches.
The Touchline system will therefor work as an switch/distributor
for external components, when voltage is added to the terminal
outputs.

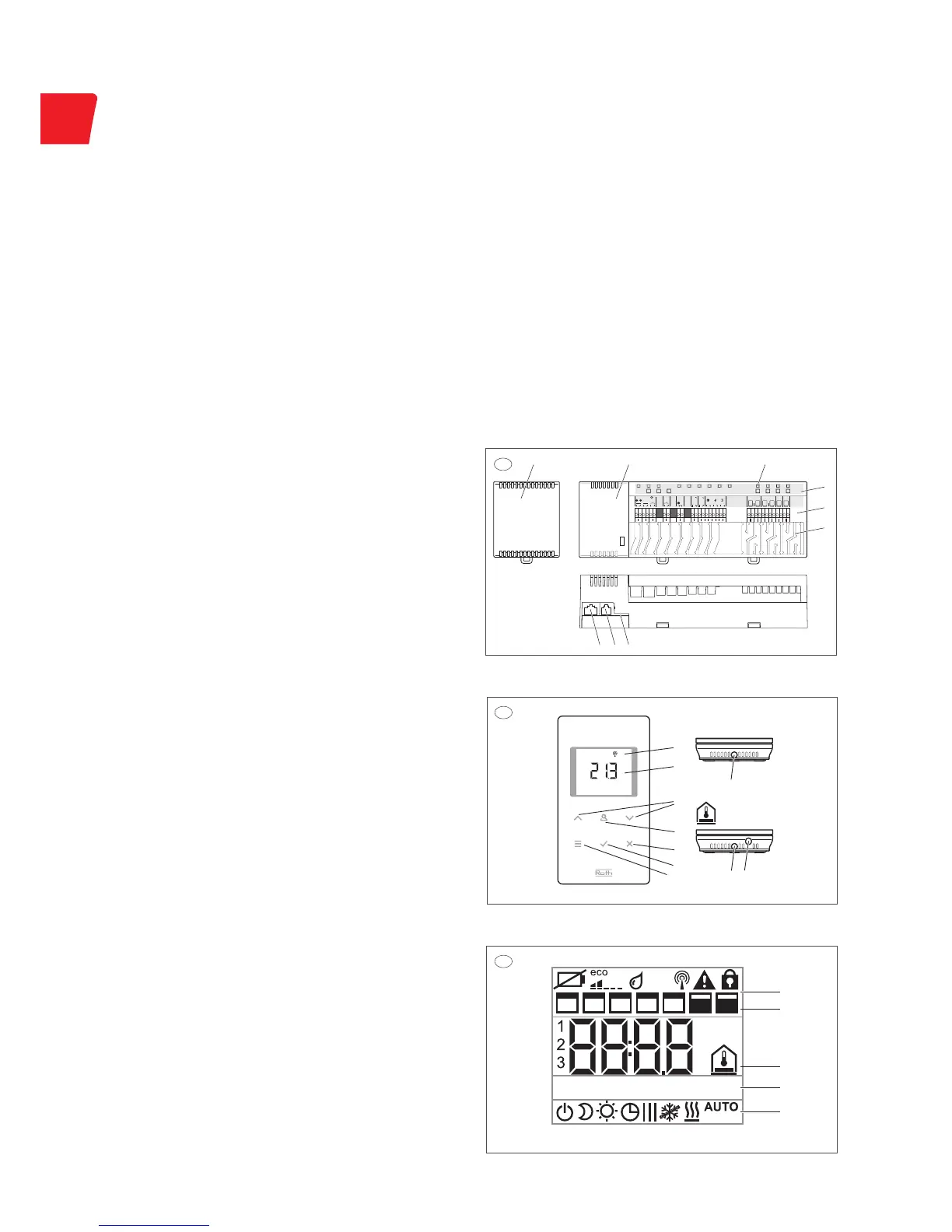

1. Summary: control device
1. Transformer 230V to 24V AC.
2. Wireless control device.
3. The LED illuminates when heating is required and
ashes during pairing and connecting.
4. Use pushbuttons for pairing and connecting.
5. Terminals/outputs.
6. Stress relief for wiring.
7. Micro SD card reader for rmware updates.
8. External antenna input.
9. LAN cable input (optional).
2a. Summary: Touchline thermostat
1. Wireless system connection symbol (ON).
2. Temperature setpoint and actual temperature value, time
setting, week program and oor temperature setting on display.
3. Arrow tabs for time and date setting and other value changes.
4. New multi function tab.
5. Menu tab, mode and parameter selection.
6. Back tab.
7. OK tab.
8. Opening: To open the wireless room thermostat, use a 5 mm
Phillips screwdriver.
9. IR sensor (IR model only).
2b. Summary: Touchline display
10. Battery alarm, eco-indicator, dew point, general alarm and lock.
11. Days of the week for time schedule settings.
12. Room/oor temperature.
13. Help text for conguration.
14. Modes and setting.
1
2a
2b
789
1
CH 1CH 3
24V 24V
CH 2
24V
24V 24V 24V
25 26
27
28
29 30
31
32 35 3633 34
3
4
5
6
2
03
11
01
12
02
13
14
15 16
17
20
230 V
24 V
Trafo
Pump
230 V
in
eco
24 V
%H
c/o in
out
0604 05
c/o out
0807
18 19
1009
c/o in
230 V
/TB
N
L
NNL L
CH 4
°C
2
3
4
1
5
7
6
IR
8
89
°C
1 64 52 3 7
%
RESET TIMEDATETEMP SERV
10
12
11
13
14
The thermostats are available with and without oor sensors (IR).
The Roth Touchline system is easy to use and can be controlled
with an Android or iOS app. The most commonly used settings are
listed below.
If you need the complete user manual, this is available to down-
load at www.roth-uk.com
Content:
 Quick start (Installer)
› User settings (user)
 Extended settings (Installer)
