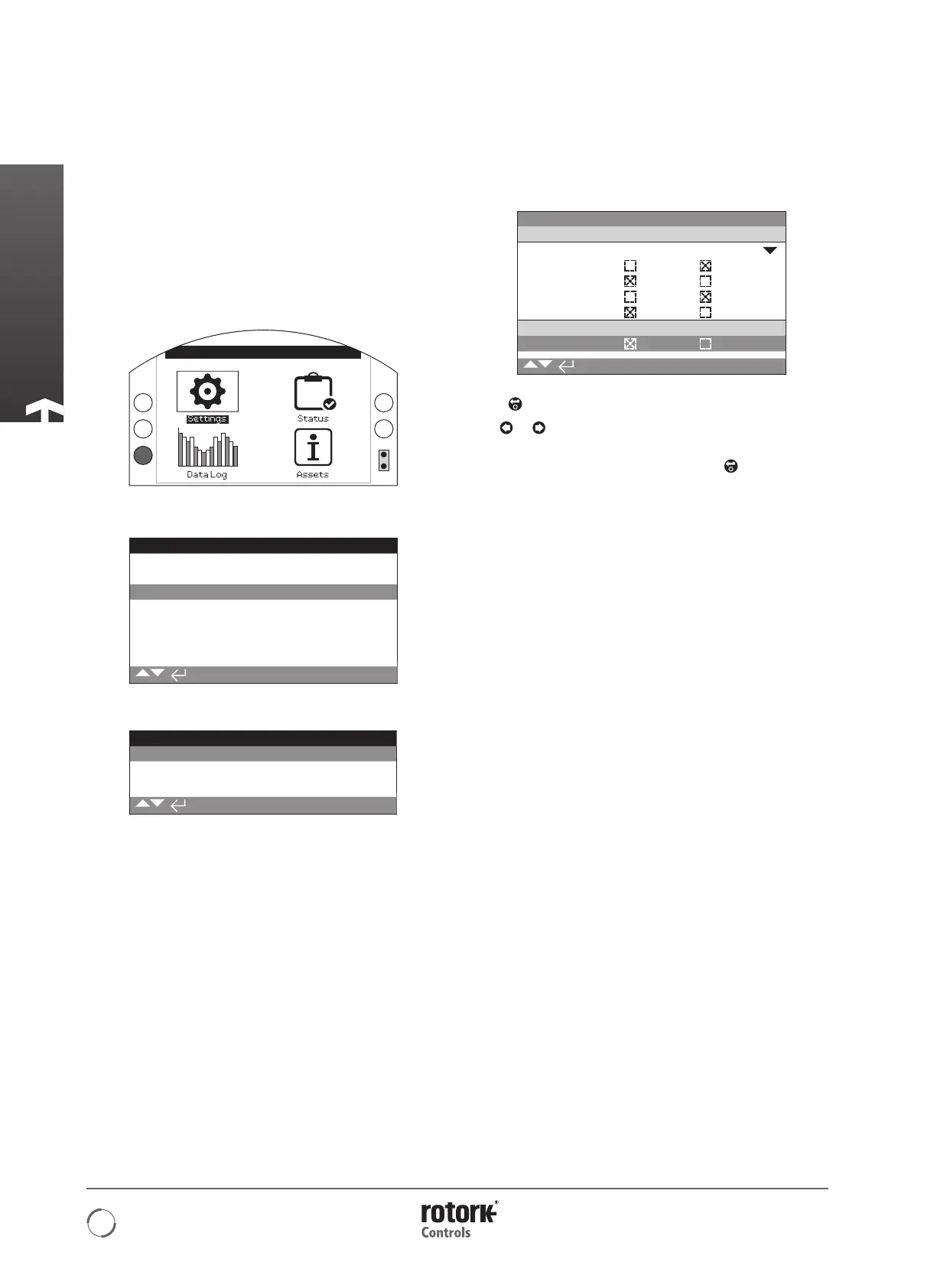

5 - Enabling the Remote Hand Station Mode on the IQ3
NOTE: The following settings are to be carried out at the IQ3
display only. Settings in section 6 can be carried out at the
RHS display.
Please refer to PUB002-040 (IQ3 full configuration manual)
for the IQ3 menu structure and PUB095-001 (Rotork
Bluetooth
®
Setting Tool Pro manual) for instructions on using
the Rotork Bluetooth
®
Setting Tool Pro.
5.1 Navigate to the Settings menu
Open Limit
5.2 From the main list, select Control
Settings
Limits
Indication
Control
ESD
Security
Defaults
5.3 Next select Local
Control
Local
Remote
Interrupter Timer
5.4 From the Local control menu, navigate to the Remote
Hand Station section and highlight ‘Enabled’.
Stopped
Local Control
Vandal Disabled
Setting Tool Yes No
Maintained
Yes No
Delay Control
Yes No
Loss Of HMI
Stayput Remote
Remote Hand Station
Enabled
On Off
6/6
Press
(enter ROTACT as the password).
Use
or to enable or disable the Remote Hand Station
mode.
Once the required mode is checked, press
to confirm.
The selected mode will be saved and shown as checked on
the setting entry.
