Chapter 13 Seat and Guide Carbide Inserts:
Carbide Profile Tips:

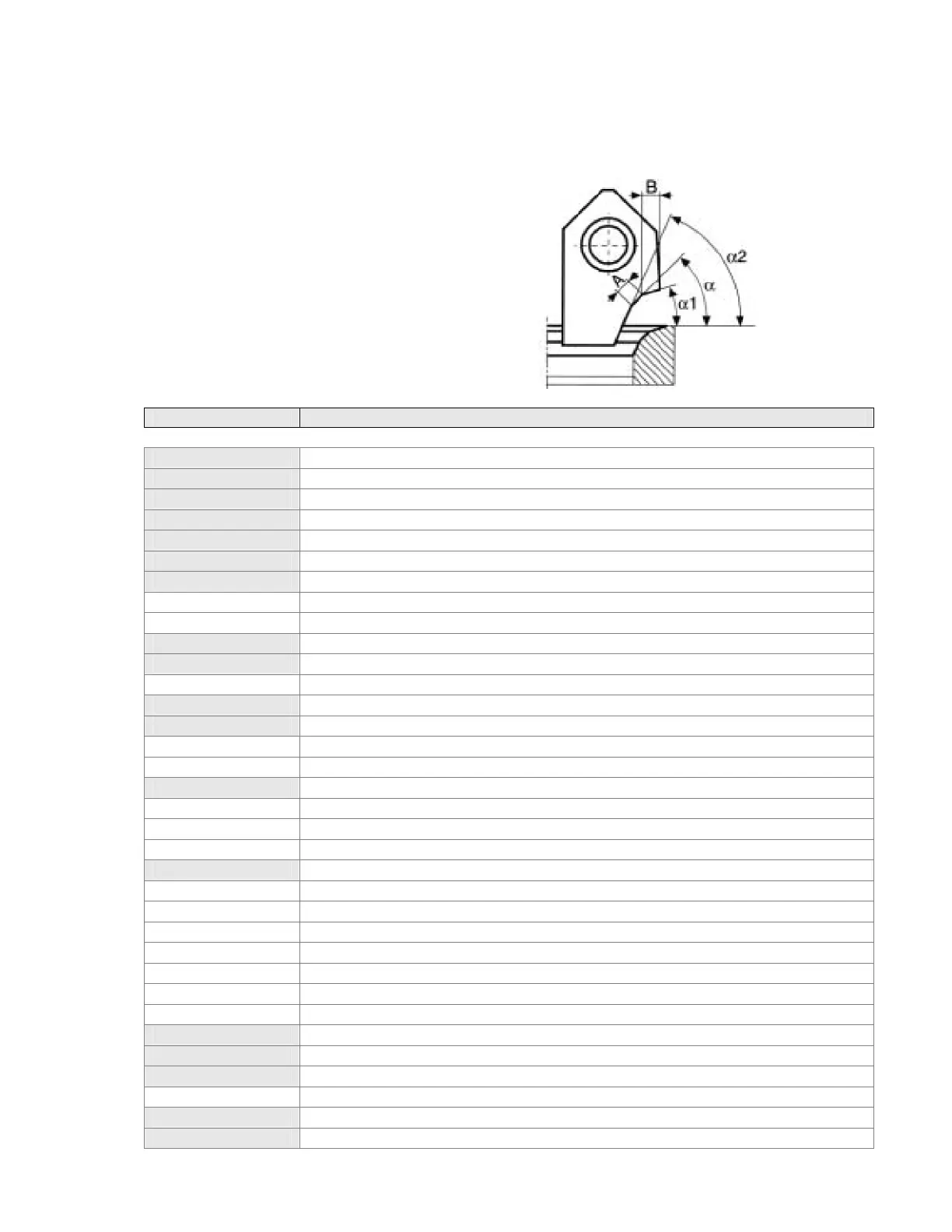

Replacement carbide tips for forming valve seats are
individually specified by: Seat angle & seat width,
top angle & top width, and throat angle.
Identify the proper tip for your application. The
chart on this page, and those following, provide this
information, as well as cross-reference data to allow
you to convert from part numbers used by other
suppliers.
Part Number Description
RCA 001 Carbide Seat Insert 30-45-60 / 1.2 -1.0
RCA 002 Carbide Seat Insert 30-45-60 / 2.0 -1.0
RCA 003 Carbide Seat Insert 30-45-60 / 1.2 -1.3
RCA 004 Carbide Seat Insert 30-45-60 / 1.6 -1.3
RCA 005 Carbide Seat Insert 37-45-52 / 2.0 -1.3
RCA 006 Carbide Seat Insert 30-45-52 / 2.0 -1.3
RCA 007 Carbide Seat Insert 37-45-52 / 1.8 -1.5
RCA 008 Carbide Seat Insert 15-45-60 / 1.8 -1.5
RCA 009 Carbide Seat Insert 30-45-52 / 1.8 -1.5
RCA 010 Carbide Seat Insert 30-45-60 / 2.0 -1.5
RCA 011 Carbide Seat Insert 30-45-60 / 3.0 -1.5
RCA 012 Carbide Seat Insert 30-45-52 / 1.2 -1.6
RCA 013 Carbide Seat Insert 30-45-60 / 1.2 -1.6
RCA 014 Carbide Seat Insert 30-45-60 / 1.4 -1.6
RCA 015 Carbide Seat Insert 15-45-60 / 1.6 -1.6
RCA 016 Carbide Seat Insert 30-45-52 / 1.6 -1.6
RCA 017 Carbide Seat Insert 30-45-60 / 2.0 -2.2
RCA 018 Carbide Seat Insert 30-45-52 / 1.8 -1.6
RCA 019 Carbide Seat Insert 15-45-60 / 2.0 -1.6
RCA 020 Carbide Seat Insert 30-45-52 / 2.0 -1.6
RCA 021 Carbide Seat Insert 30-45-60 / 2.0 -1.6
RCA 022 Carbide Seat Insert 30-45-60 / 3.0 -1.6
RCA 023 Carbide Seat Insert 30-45-60 / 3.0 -1.8
RCA 024 Carbide Seat Insert 30-45-52 / 1.2 -1.9
RCA 025 Carbide Seat Insert 30-45-60 / 1.2 -1.9
RCA 026 Carbide Seat Insert 30-45-60 / 1.6 -1.9
RCA 027 Carbide Seat Insert 30-45-52 / 1.8 -1.9
RCA 028 Carbide Seat Insert 30-45-52 / 2.0 -1.9
RCA 029 Carbide Seat Insert 30-45-60 / 2.0 -1.9
RCA 030 Carbide Seat Insert 30-45-70 / 1.6 -2.0
RCA 031 Carbide Seat Insert 30-45-75 / 1.6 -2.0
RCA 032 Carbide Seat Insert 30-45-60 / 0.6 -2.2
RCA 033 Carbide Seat Insert 30-45-60 / 2.0 -2.3
RCA 034 Carbide Seat Insert 30-45-60 / 2.0 -2.5
