The seat post must not be pulled out of the frame above the minimum insertion
depth mark.

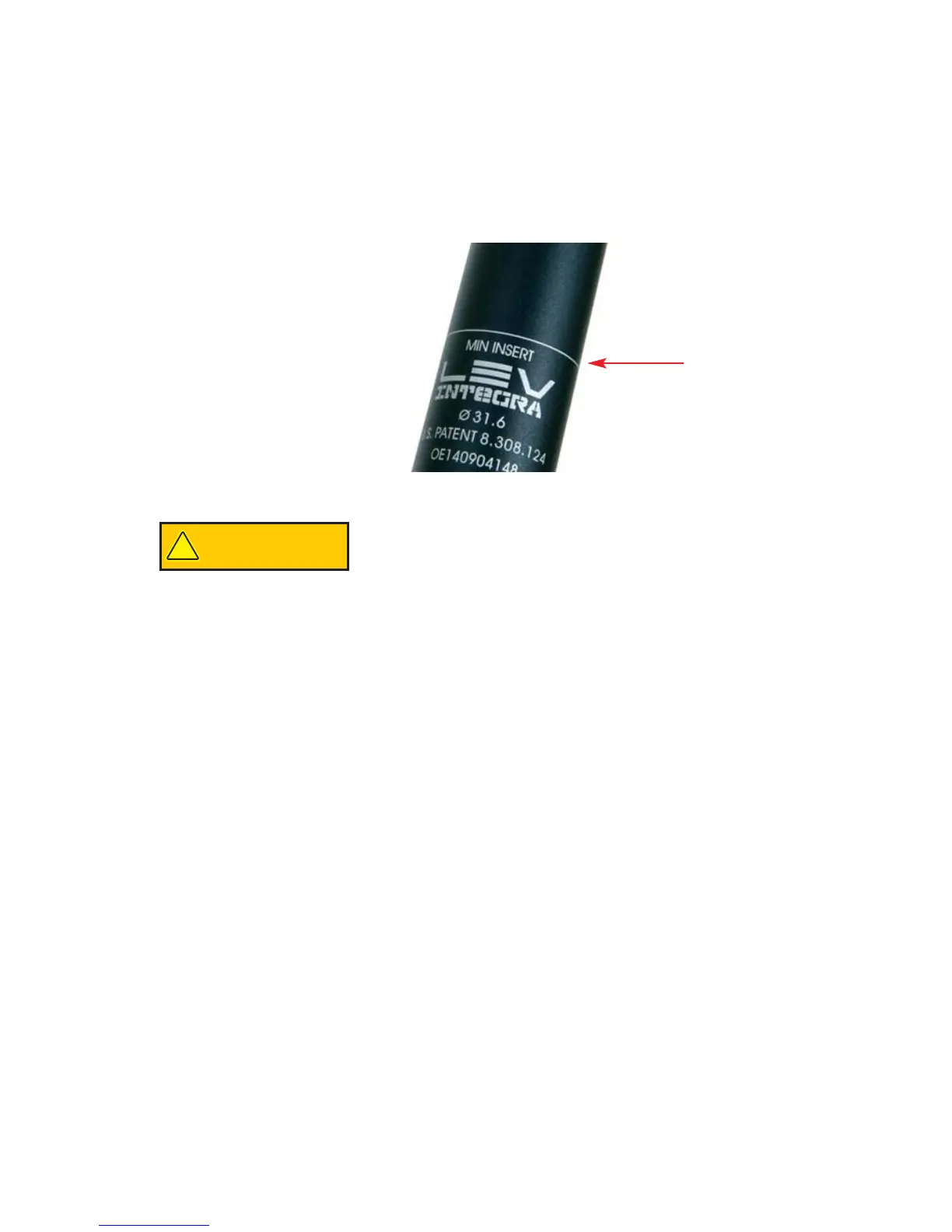

Figure 8: Minimum insertion depth mark on the seat post (MIN INSERT)
Not observing the minimum insertion depth can lead to
the seat post and the frame breaking. This can result in
a fall or an accident.
6.3 Using the quick release lever and quick release
axle bolt
6.3.1 Seat post quick release lever
The quick release lever for the seat post is not labelled. You can tell whether it is
open or closed due to its design. The figure below shows it in its closed position
ready for use.
