Roundup VCT-1000 - Installation

7P/N 1010807 Rev. I 06/12
VERTICAL CONTACT TOASTER
A.J. Antunes & Co.
Figure 2. Installing Bun Chute
Bun Chute
Yellow
Support
Rod
Hook Bun Chute
over rear bottom
Conveyor Cover
Yellow Support Rod

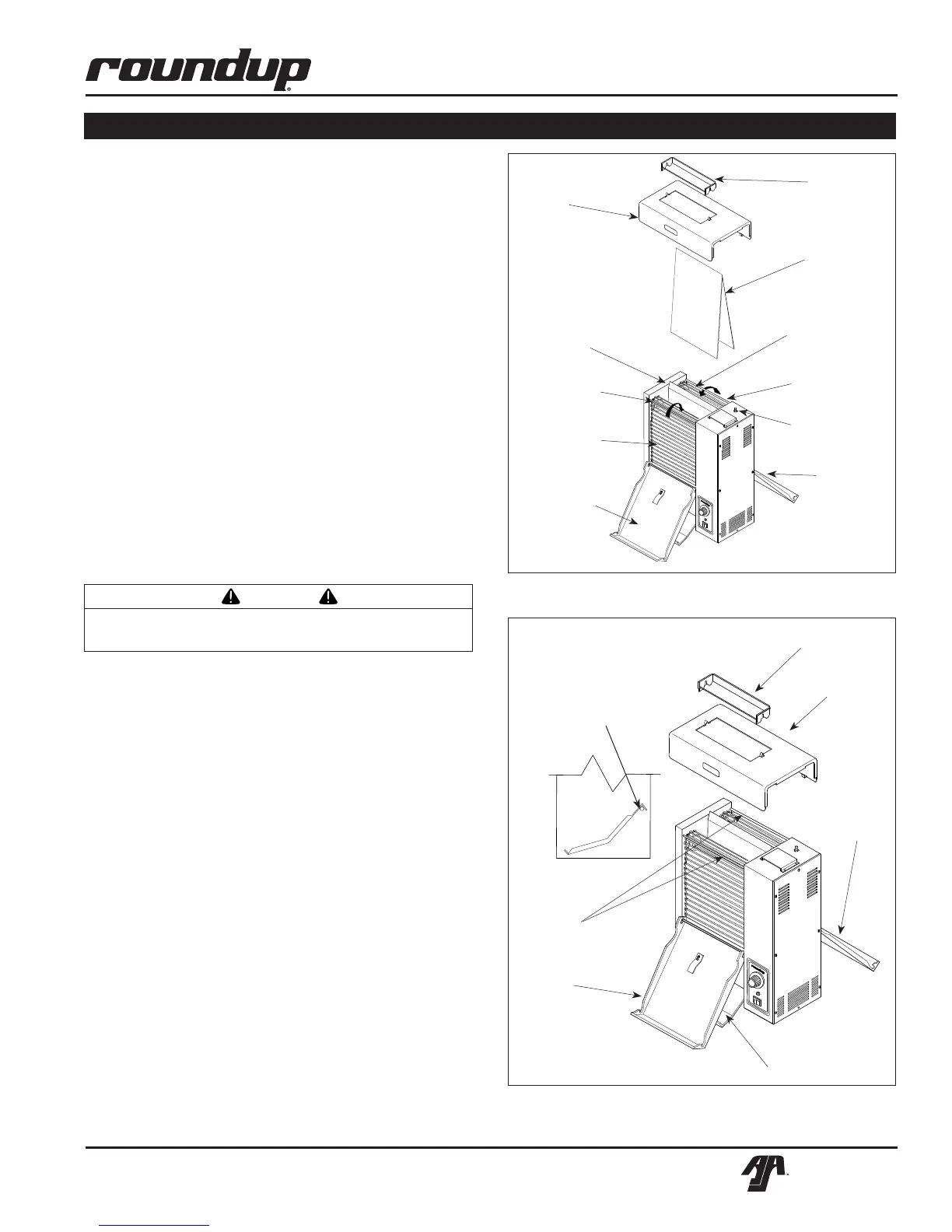

Figure 1. Toaster and Accessories
Heat
Shield
Heat
Shield
Conveyor
Cover Assy.
(rear)
Yellow
Support Rod
(front)
Conveyor
Cover Assy.
(rear)
Bun Feeder
Conveyor
Cover Assy.
(front)
Unpacking
1. Remove unit and all packing materials from
shipping carton.
2. Open the large box. It should contain:
• BunFeeder(Figure1).
• BunChute(Figure2)
• TwoReleaseSheets(Figure1).
• AuthorizedServiceAgencyDirectory
• Owner’sManual
3. Remove all packing materials and protective
coverings from the unit and parts.
NOTE: If any parts are missing or damaged,
contact Antunes Technical Service IMMEDIATELY at
1-877-392-7854.
Assembling the Unit
NOTE: The factory has pre-installed a Release
Sheet over the Platen (Figure 1). Verify that it is
properly in place before proceeding.
1. Install the Bun Feeder (Figure 1) and Bun Chute
(Figure 2).
NOTE: Make sure Heat Shield Assembly is prop-
erly seated and engages the Conveyor Interlock
Safety Switch (see Figure 1). The conveyors will
not rotate unless the Heat Shield is in place and
correctly engages the Conveyor Interlock Safety
Switch.
NOTE: Check the Release Sheet to make sure it
is not caught in the conveyor. Additional Release
Sheets can be purchased through your Authorized
Service Agency under P/N 7000249 (3-pack) or
7000250 (10-pack).
INSTALLATION
Release
Sheet
Yellow
Support Rod
(rear)
Bun
Feeder
Conveyor
Cover Assy.
(rear)
Shown without option-
al Roller Tensioners
and Belt Wraps.
Shown without optional
Roller Tensioners and
Belt Wraps.
CAUTION
Failure to use Release Sheets may result in damage
to the unit and loss of warranty coverage.
Rear
Conveyor
Belt Chain
Front Conveyor
Belt Chain
Platen
Conveyor
Interlock Switch
