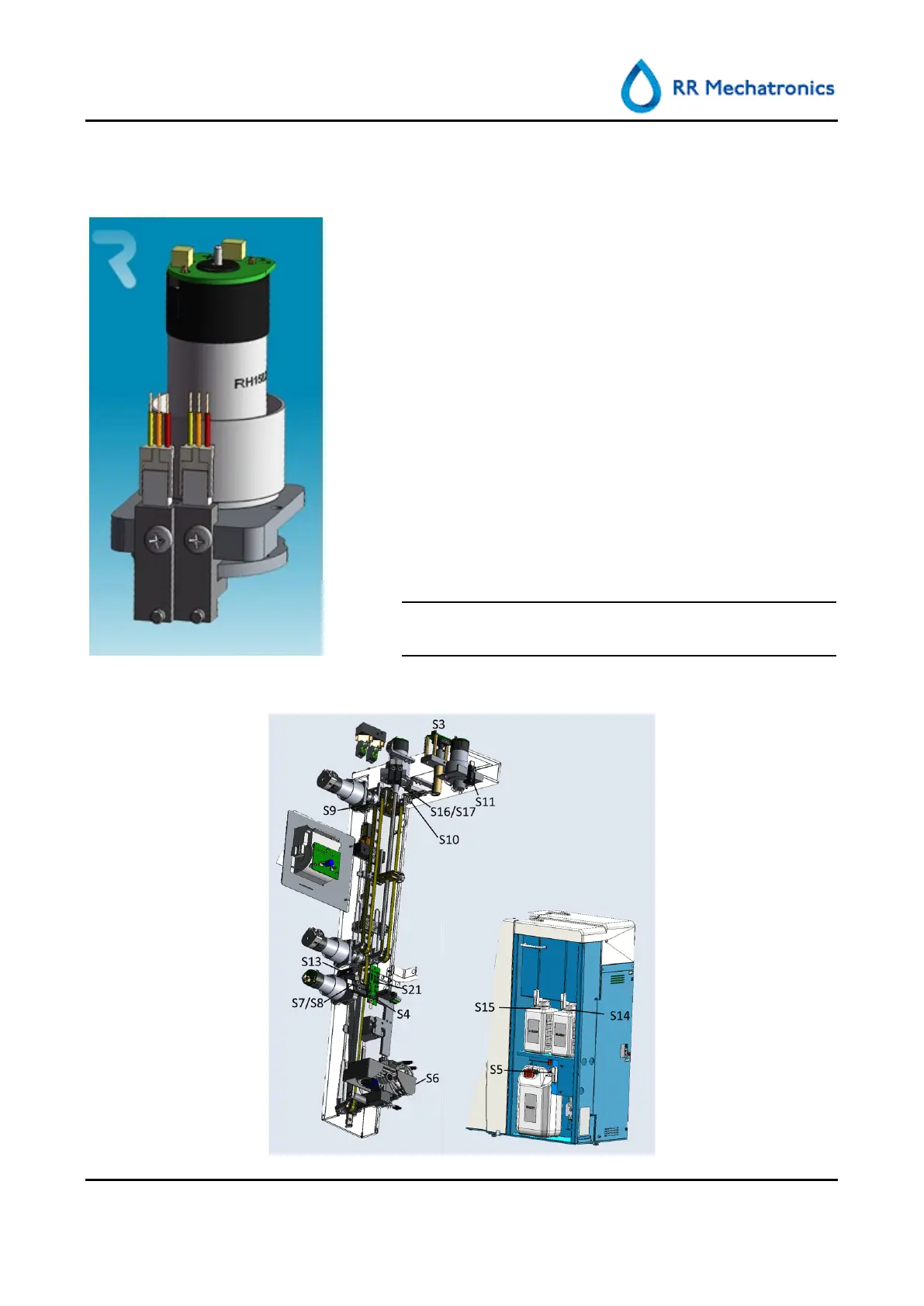

3.7.2. Principle of Motor with sensors attached
When motor need to be replaced;
• Unplug the motor connections from the motor PC
board and the attached sensor(s).
• Disassembly the motor bracket by unfasten the
screws from the motor bracket.
• Pull the motor assembly loose.
• Remove the sensor(s).
• Remove "the coupling" from the motor axe.
•
Remove the screws which hold the motor attached to
the motor bracket.
• Replace the motor or sensor(s) and fasten the
screws.
• Re-install and fasten "the coupling".
• Re-install the sensor(s).
• Re-install the motor connection and the sensor(s)
connection(s).
Note: "the coupling" can be a disk, a pulley or a
mechanical connection to an assembly.
3.7.3. Label information sensors
