CHAPTER 3 | INSTALLATION AND OPERATION

Connecting Speakers in Stereo Mode

NOTE: When connecting stereo speakers, verify that the Stereo/Bridge (SE/

BTL) mode switch for the associated Zone is set to “SE”.

Stereo speaker pairs use both output channels (left and right) for each Zone.

• Odd-numbered channels should be used to connect to the left speaker.

• Even-numbered channels should be used to connect to the right speaker.

The CP-16i supports up to eight stereo speaker pairs, each one associated with

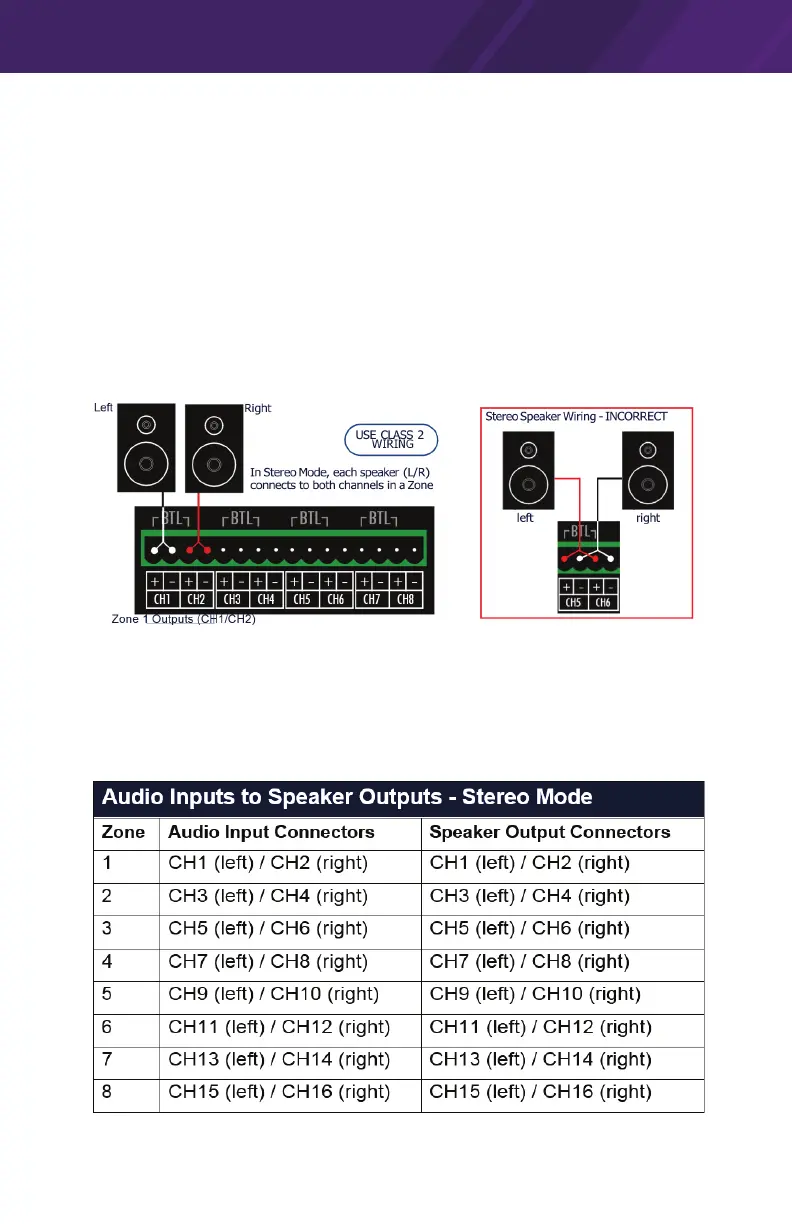

a Zone (1-8). This diagram illustrates the wiring connection from both Zone

output channels to a stereo speaker pair:

NOTE: If incorrect wiring is used there is a risk of electrical shock and a re

hazard.

The table below illustrates the direct correlation between the audio inputs and

the speaker outputs in Stereo Mode:

RTI Cool Power CP-16i - Connecting Speakers in Stereo Mode; Audio Inputs to Speaker Outputs - Stereo Mode
