CHAPTER 3 | INSTALLATION AND OPERATION

Connecting Speakers in Bridge Mode

NOTE: When connecting a speaker to a “bridged” input, verify that the Stereo/

Bridge (SE/BTL) mode switch for the associated Zone is set to “BTL”.

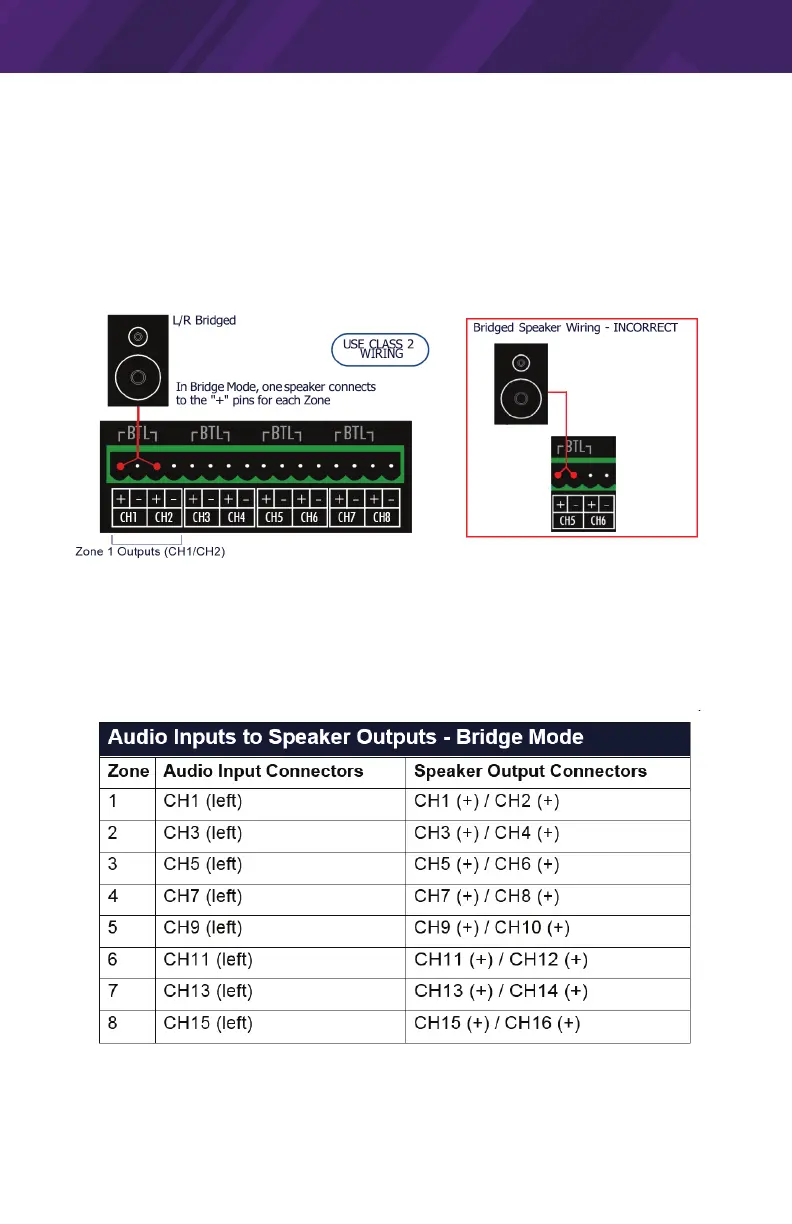

In Bridge Mode, both channels in a Zone are connected to a single speaker, via

the positive (“+”) pins for both output channels:

NOTE: If incorrect wiring is used there is a risk of electrical shock and a re

hazard.

The table below illustrates the direct correlation between the audio inputs and

the speaker outputs in Bridge Mode:
