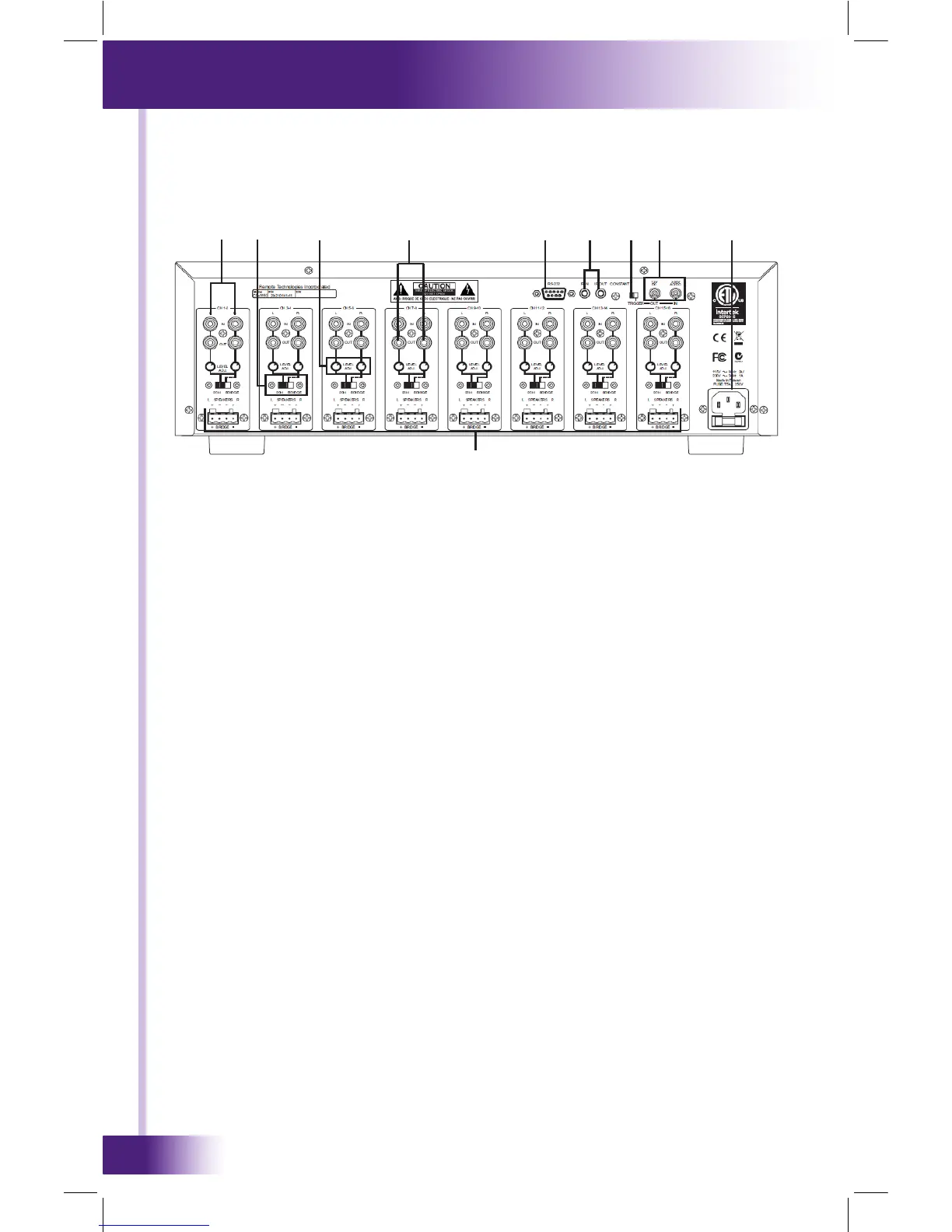

CP-1650 REAR PANEL
5. Source Inputs
Eight (8) sets of left and right RCA jacks for audio signal from audio
sources.
6. 2 CH/Bridge Switches
Eight (8) slide switches allow the CP-1650 to operate in different modes
depending on the number of speakers that are connected to the unit.
Note: do not use 4 ohm speakers in Bridge Mode.
7. Input Level Adjusters
Sixteen adjusters capable of independently controlling each channel
of the CP-1650. These controls effect the speaker level output. When
levels are turned to their maximum position, the input sensitivity is:
1W/4ohm = 100mV and 50W/4ohm = 700mV
Note: make sure the controls are turned to their full, clockwise
position before turning on the CP-1650 for the rst time.
Note: in the Bridge Mode, only the input level controls of L,
(Left) CHANNELS are operative. Channel indicators are printed
above each audio source box on the rear of the unit.
8. Loop Outputs
Each output corresponds to an input on the CP-1650 for all 16 channels.
The loop outputs can be used to connect up to 2 CP-1650’s together if
using a cascaded system.
CHAPTER 2 | FEATURES AND DESCRIPTION
