RTK SR-3300 - Page 45

Einbau- und Betriebsanleitung
Installation and Operating instructions
SR3300-8010
SR-3300
Page 45 07/2018

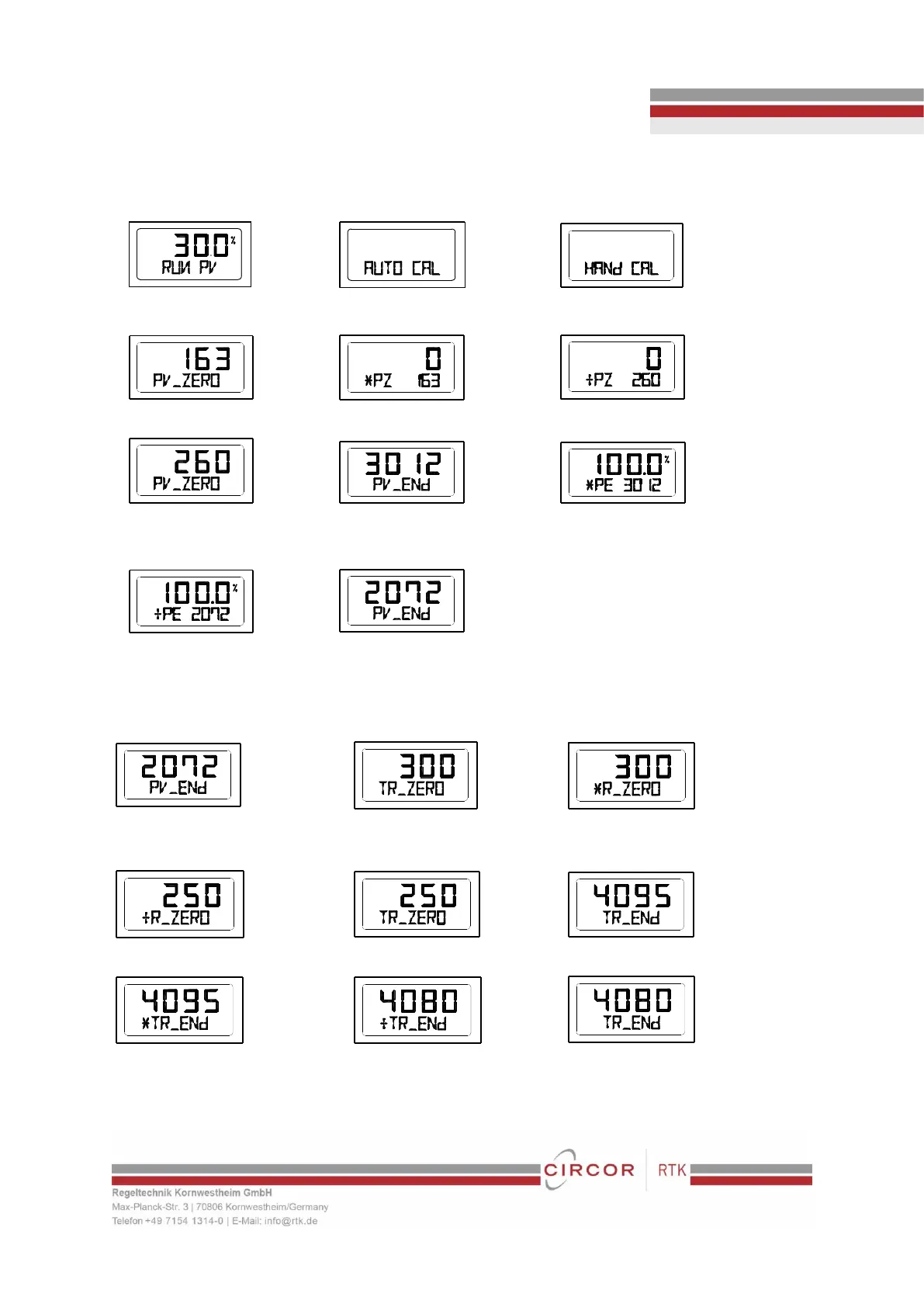

6.3.4.1 Zero-Point (PV_ZERO) and End-Point (PV_END) for Valves
PZ_ZERO adjusts the zero point of the valve, and PV_END adjusts the end point of the valve.
6.3.4.2 Zero-Point (TR_ZERO) and End-Point (TR_END) for Transmitter
TR_ZERO adjusts the zero point of the transmitter (4-20mA feedback), and TR_END adjusts the end point of the transmitter (4-
20mA feedback)
⇨
<ENTER>
6 seconds
⇨
<DOWN>
3 times
⇨
<ENTER>
⇨
<ENTER>
⇨
<UP>/<DOWN>
⇨
<ESC>
Zero Adjustment
<ENTER>
⇨
<DOWN>
⇨
<ENTER>
⇨
<UP>/<DOWN>
End Adjustment
<ENTER>
⇨
<ESC>
⇨
<DOWN>
⇨
<ENTER>
⇨
<UP>/<DOWN)
Zero Adjustment
Match feedback signal
with 4mA
<ENTER>
⇨
<ESC>
⇨
<DOWN>
⇨
<ENTER>
End Adjustment
⇨
<UP>/<DOWN)
⇨
<ESC>
Match feedback signal
with 20mA
<ENTER>
