Einbau- und Betriebsanleitung
Installation and Operating instructions
SR3300-8010
SR-3300
Page 49 07/2018

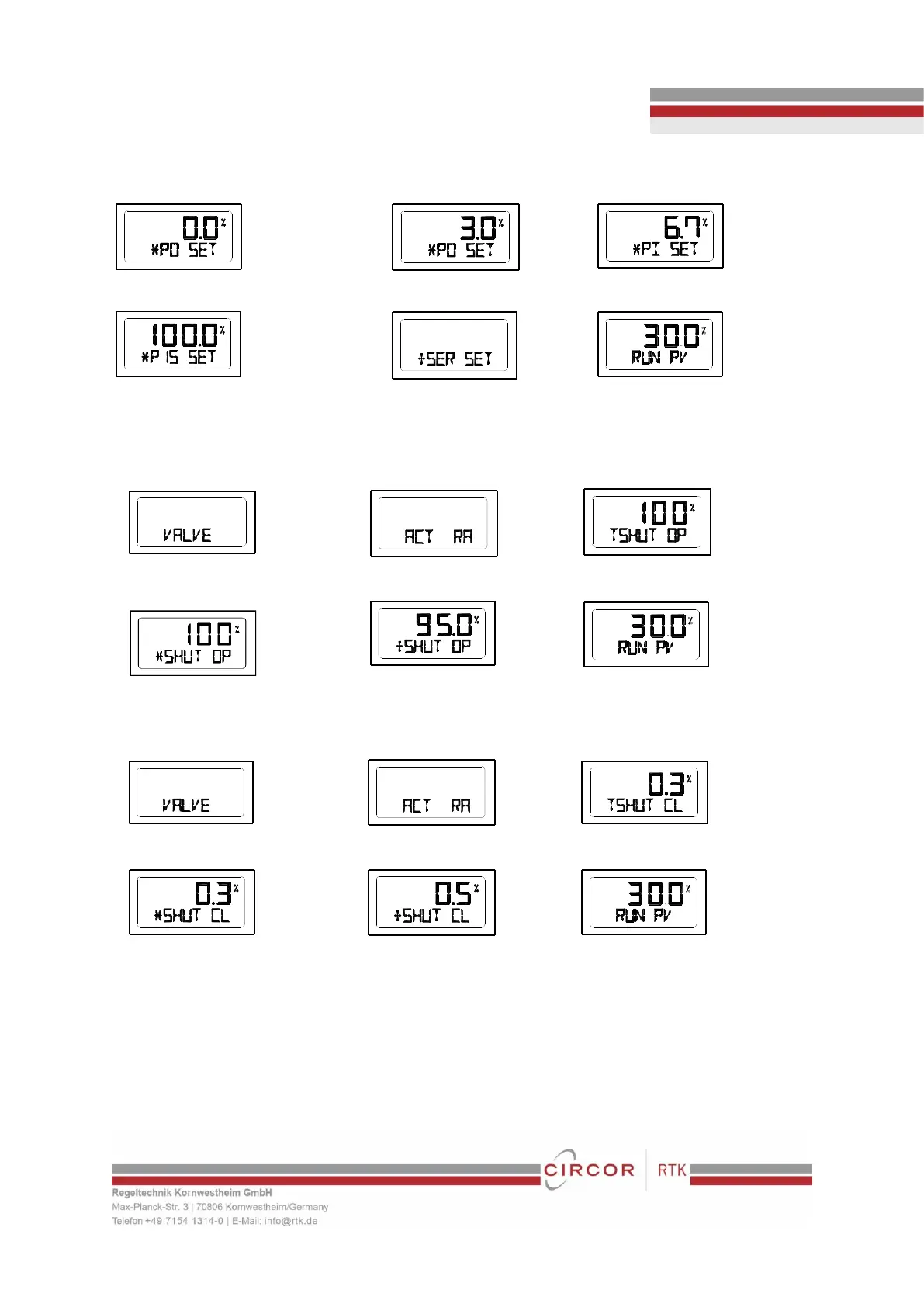

6.3.5.4 Tight Shut Open (TSHUT OP)
Tight Shut Open allows the valve to open completely as the input signal reaches around 20mA.
6.3.5.5 Tight Shut Close (TSHUT CL)
Tight Shut Close allows the valve to close completely as the input signal reaches around 4mA.
⇨
<UP>/<DOWN>
⇨
<ENTER>
⇨
<UP><DOWN>
<ENTER>
<ENTER>
⇨
<ENTER>
⇨
<ESC>
3 times
Repeat step if
necessary
⇨
<ENTER>
6 seconds
⇨
<DOWN>
3 times
⇨
<ENTER>
⇨
<UP>/<DOWN>
⇨
<ESC>
3 times
<ENTER>
⇨
<ENTER>
6 seconds
⇨
<DOWN>
4 times
⇨
<ENTER>
⇨
<UP>/<DOWN>
⇨
<ESC>
3 times
