ES-2310C User Manual
Publication date: Aug., 2010
Revision A5
130
Function name:
802.1p Setting
Function description:
This function will affect the priority of VLAN tag. Based on priority of VLAN tag,
it can arrange 0~8 priorities, priorities can map to 4 queues of the switch
(queue 0~3) and possess different bandwidth distribution according to your
weight setting.
Parameter description:
802.1p Priority Mapping:
Each Priority can select any of Queue 0 ~ Queue 3. In Default, Priority 0
is mapping to Queue 0, Priority 1 is mapping to Queue 0, Priority 2 is
mapping to Queue 1, Priority 3 is mapping to Queue 1, Priority 4 is
mapping to Queue 2, Priority 5 is mapping to Queue 2, Priority 6 is
mapping to Queue 3, and Priority 0 is mapping to Queue 3.

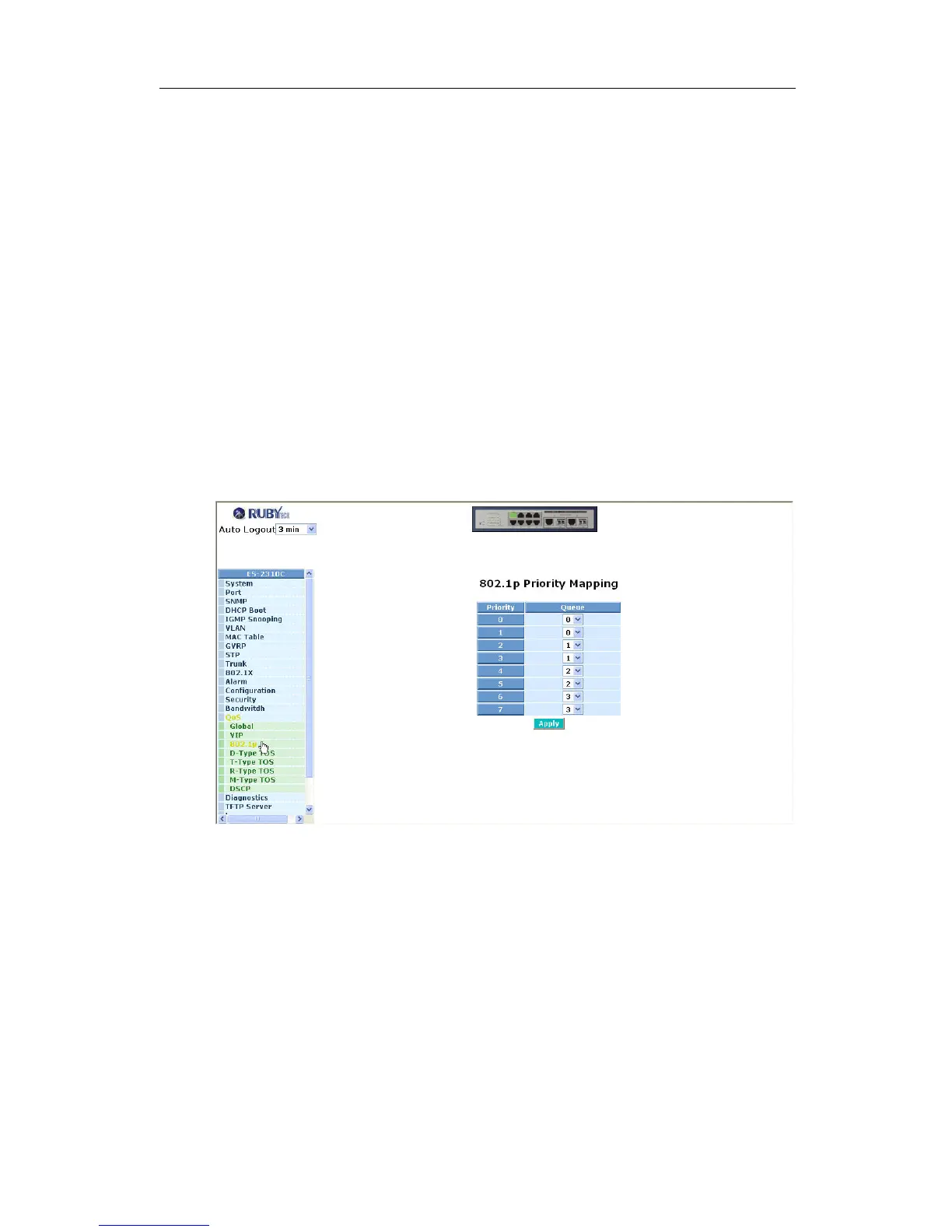

Fig. 3-65
