BERGER LAHR, YKA3722MA from Shenzhen YAKO Automation Technology Co.,
Ltd., JK-2HB402M from Beijing Jektechnology Co., Ltd., Q2HB44MC(D) and
Q3HB64MA from Shenzhen Baishan Mechatronics Co., Ltd.
(2). The drivers with common-anode input signals, such as YKA2304ME from
Shenzhen YAKO Automation Technology Co., Ltd., Q2HB34MB and Q2HB44MA(B)
from Shenzhen Baishan Mechatronics Co., Ltd.

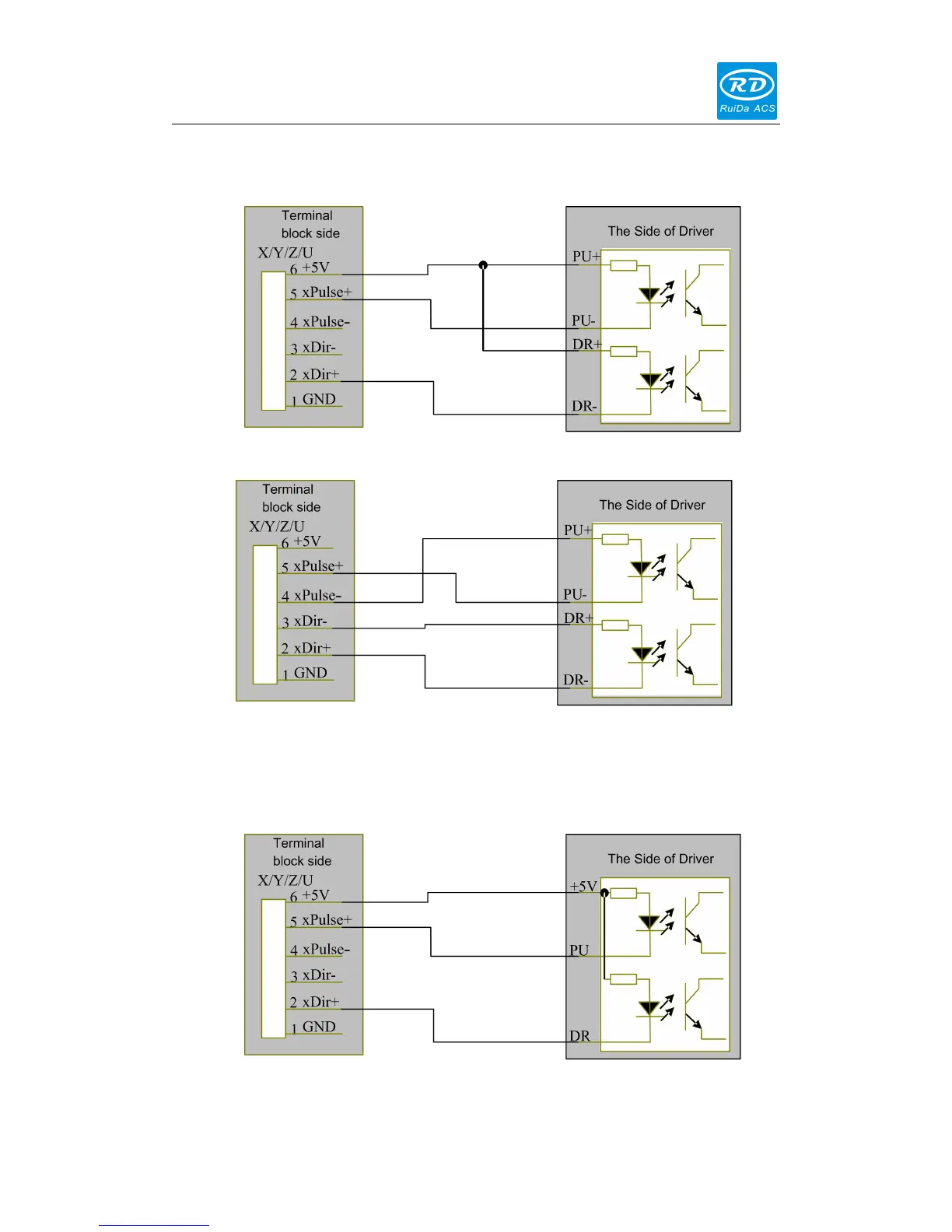

Figure: 6.3-3 Three Inputs, Valid Falling Edge and Common Anode Connection
Figure: 6.3-1 Four Inputs, Valid Falling Edge and Common Anode Connection
Figure: 6.3-2 Four Inputs, Valid Falling Edge and Differential Connection
