Ruida Technology RDLC320 - 10.3 Multi-controller Connects to PC via Concentrator

RDLC320 Controller User Manual
43 / 45
© 2016 Ruida Technology. All Rights Reserved.

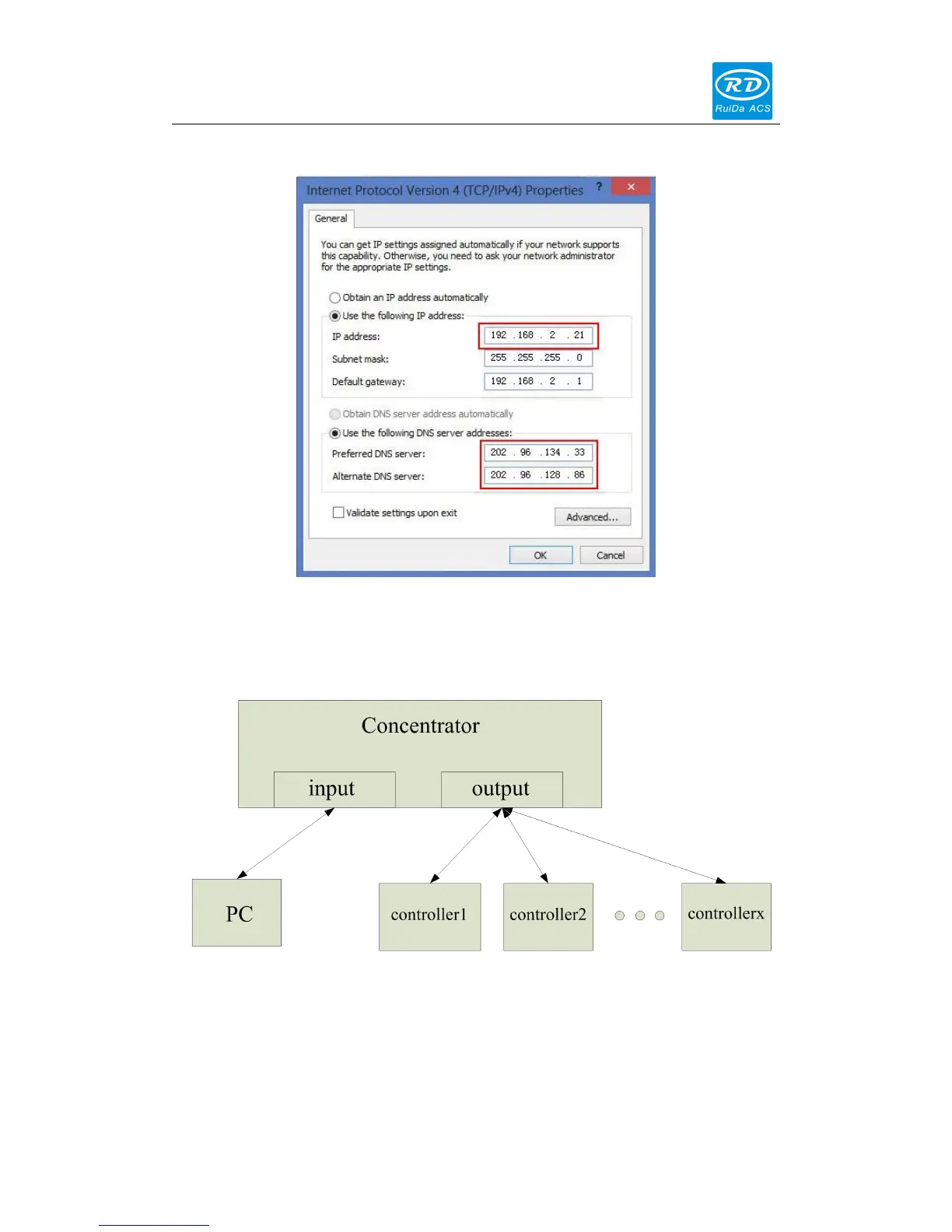

(3) Configure the second NIC IP address and DNS server. See as follows:
10.3 Multi-controller Connects to PC via Concentrator.
(1) PC connects the input of the concentrator. Multi-controller connects to the
output of the concentrator.
(2) Different IP address should be configured for each controller. But all of the
IP address should be set between 192.168.001.100-192.168.001.149
(3) Set the PC IP address between 192.168.001.2-192.168.001.049.
