2.2 Panel Dimension
The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm.

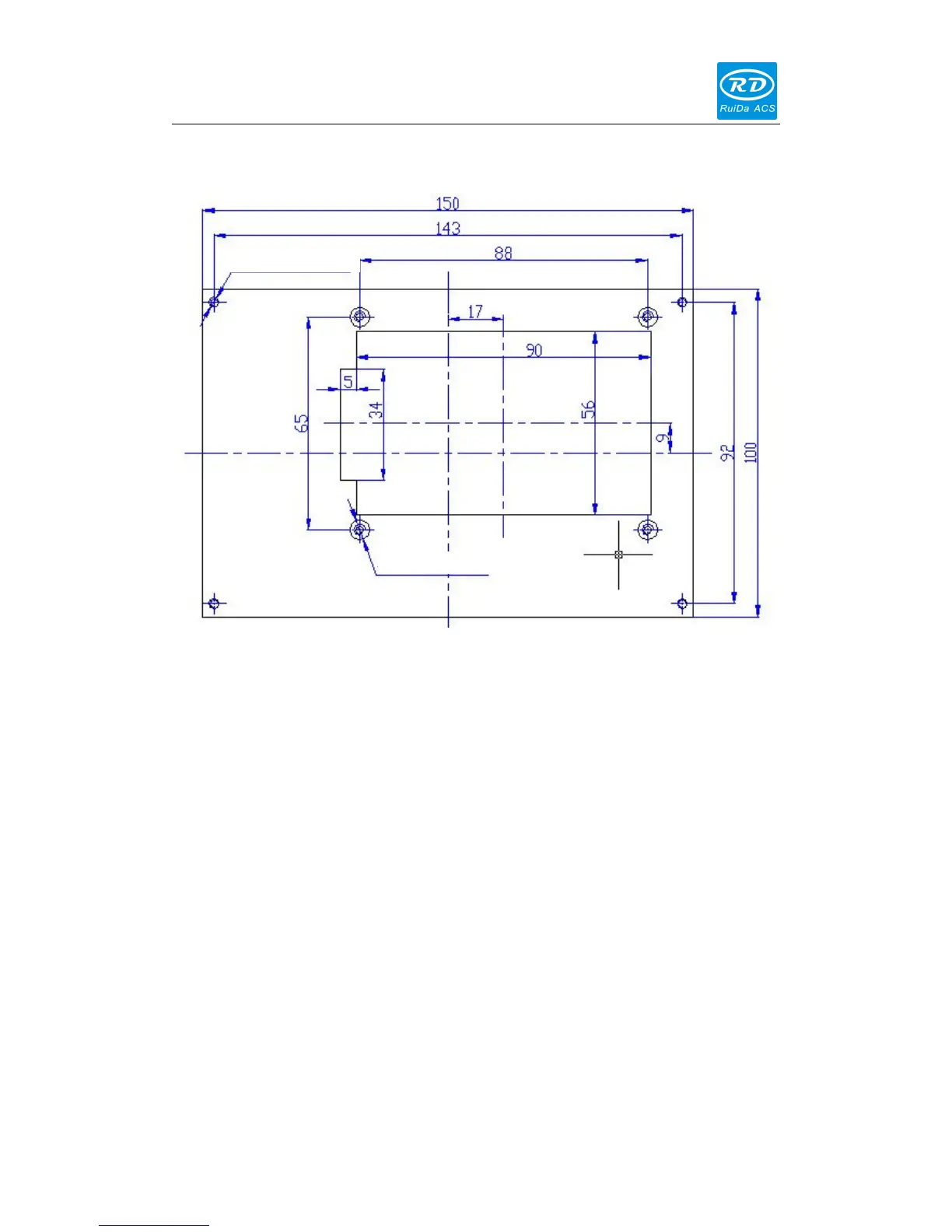

Figure: 2.2-1
4-M3 Stud rivet, 10 high
4-M3 Stud rivet, 8 high
