RDLC320 Controller User Manual
7
/
45
© 2016 Ruida Technology. All Rights Reserved.
Chapter 2 Installation Dimension
2.1 Installation dimension of IO Interface Board

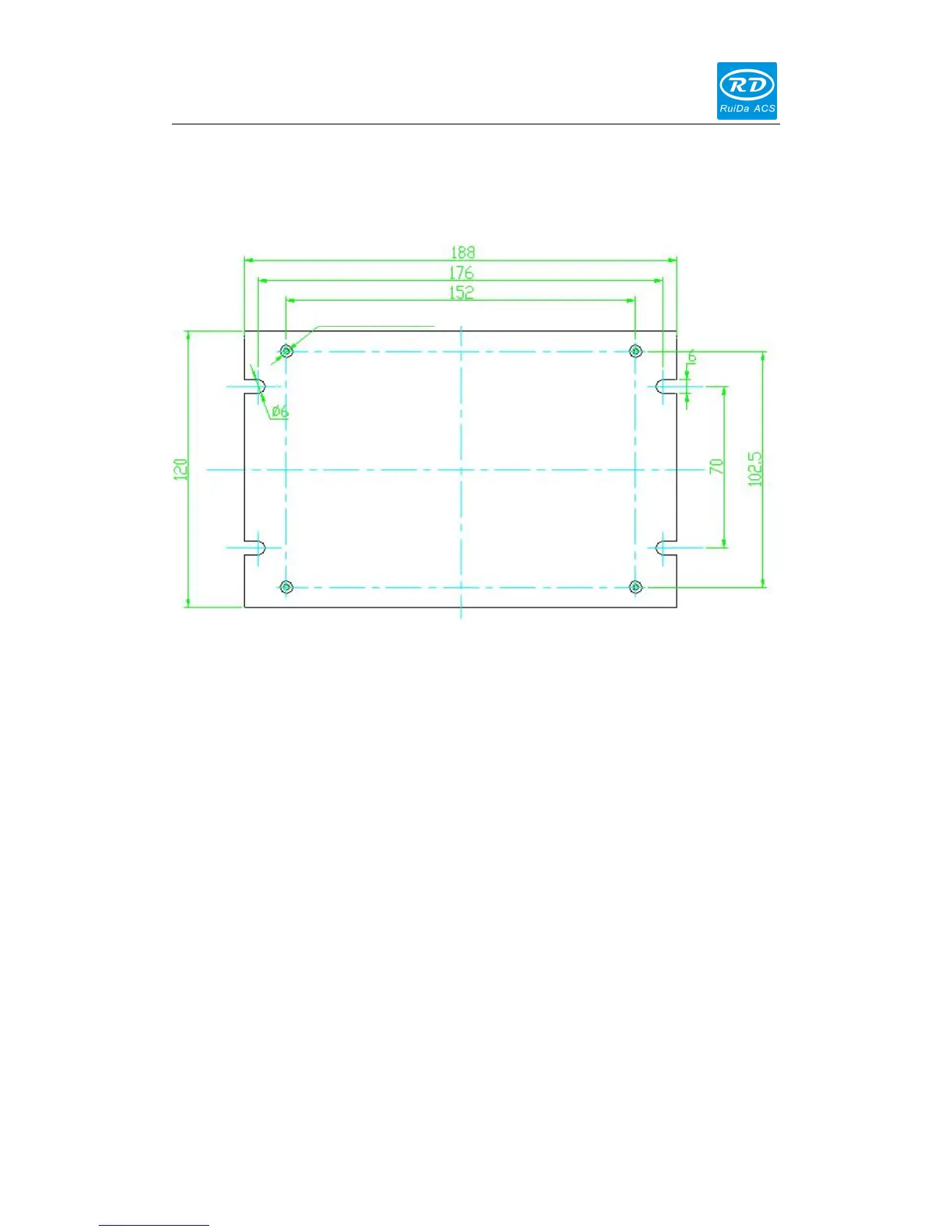

The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm.
Figure: 2.1-1
4-M3 Stud rivet, 4 high
