1.6 Operating Instructions

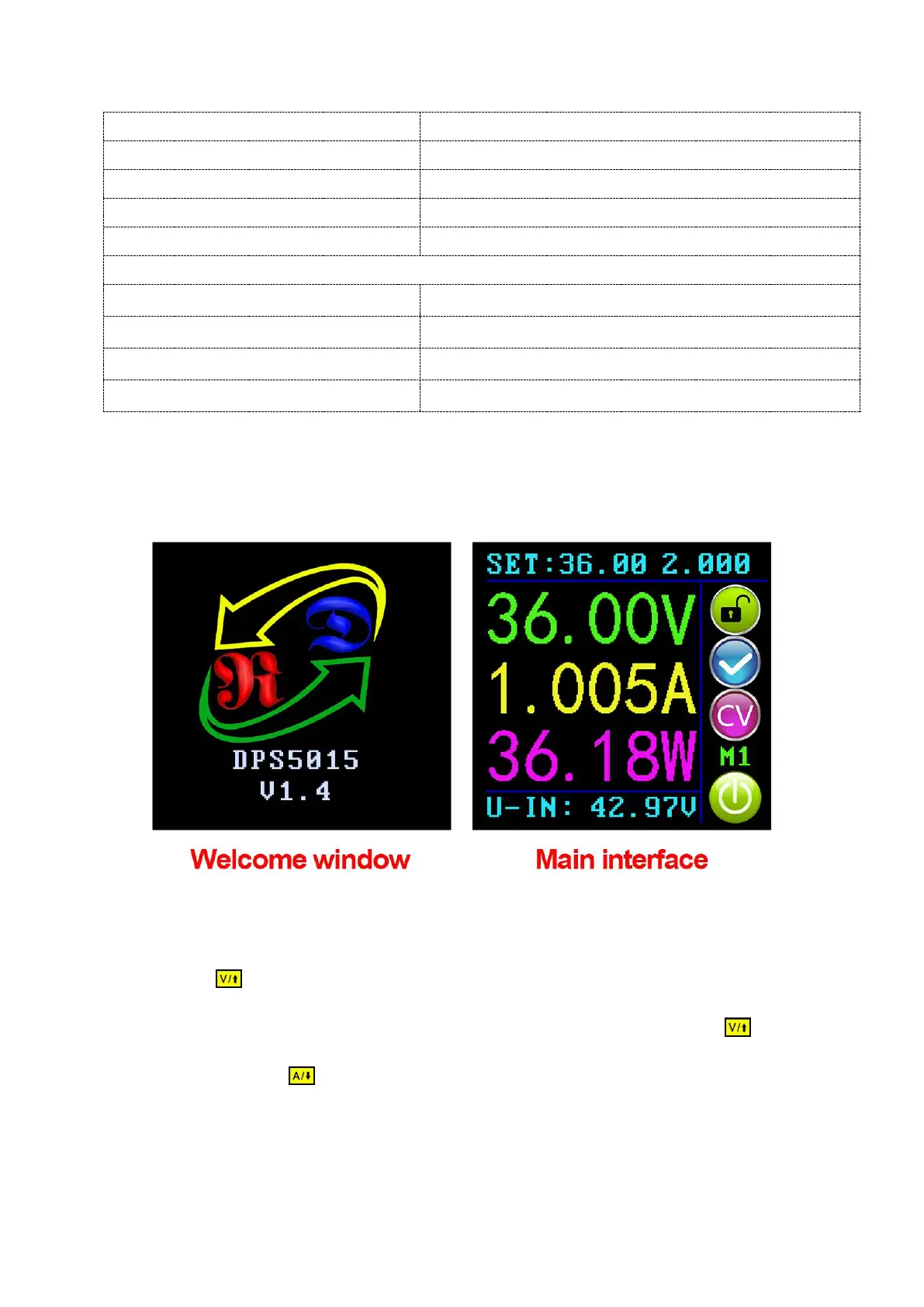

When the unit is first powered on, the Welcome screen is displayed followed shortly by
the Main Interface screen.
1.6.1 Fast Voltage and Current Setting
Press key to enter the fast Voltage setting mode. Press the rotary control to cycle
through the characters available, place the cursor at the required character, turn the rotary
control clockwise increases the value and anticlockwise decreases the value. Press key
to save the data and exit, alternatively, after 1 minute of inactivity the setting mode will exit
automatically. Press key to set the output Current limit using the same procedure.
G:The preset value of the output Voltage
L:The preset value of the output Current Limit
H:The actual value of the output Voltage
M: Keypad locked or unlocked prompt
I:The actual value of the output Current
N:Normal or abnormal status prompt
J:The actual value of the output Power
O:Constant Voltage or Constant Current status prompt
K:The actual value of the input Voltage
P: Data Group number in use prompt
Q: Output enabled or disabled prompt
V:Preset Over-Power protection value
W:Preset screen brightness level
T: Preset Over-Voltage protection value
X: Preset Data Group number.
U:Preset Over-Current protection value
Y:The actual value of the output Voltage and output Current
