Ruijie 5310-E Series User Manual

Hardware Installation and Reference Guide Product Overview
8
1. System Status LED
2. MGMT Port LED
3. USB Port
4. Console Port
5. Management Port
6. 10/100/1000Base-T Ethernet Port
7. GE SFP Port
8. GE SFP Port LED
9. 10GE SFP+ Port
10. 10GE SFP+ Port LED
Back Panel

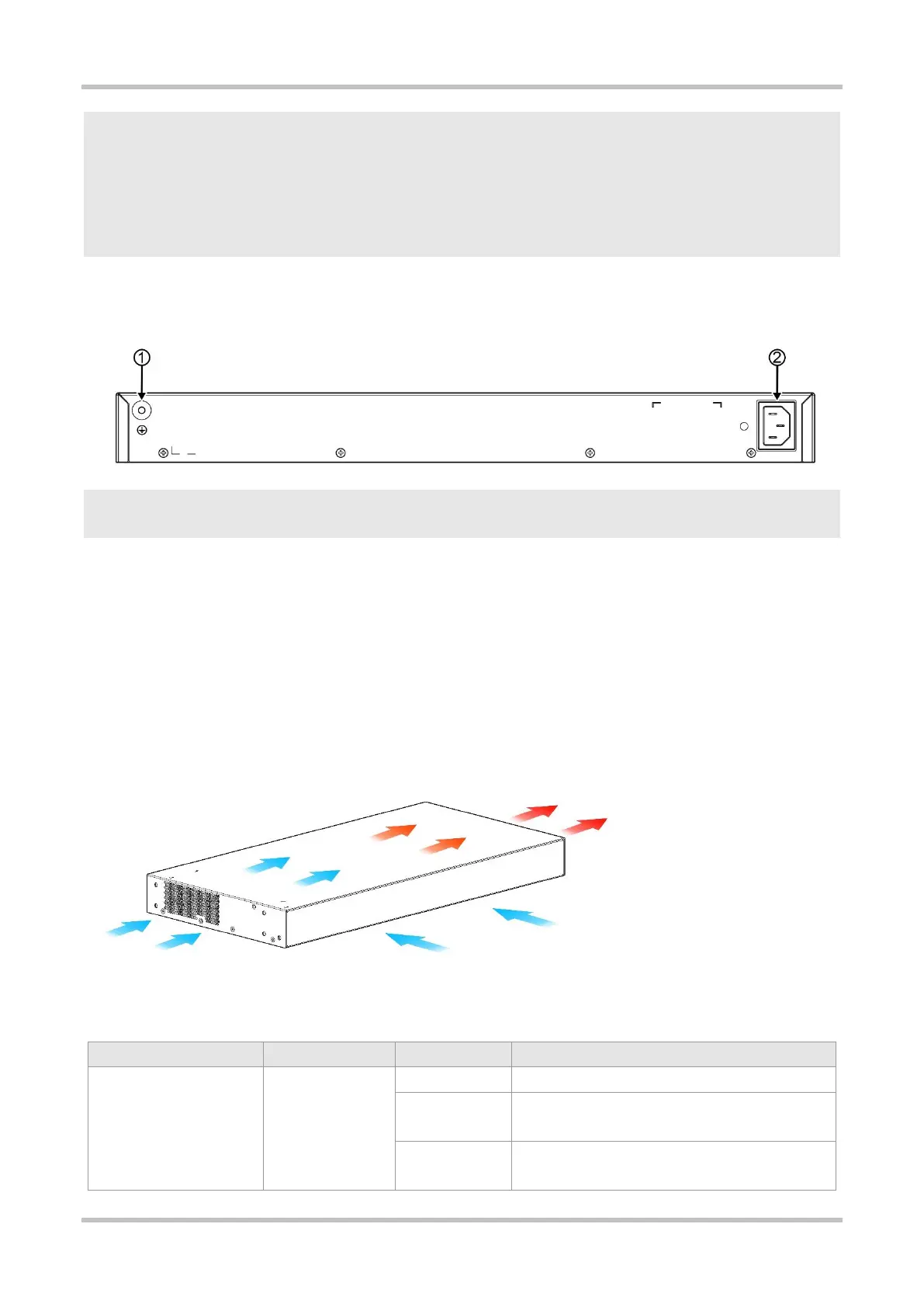

Figure1-7 Back Panel of RG-S5300-24GT2SFP2XS-E
1. Grounding Stud
2. AC Power Plug
Power Supply
The RG-S5300-24GT2SFP2XS-E switch has a built-in power supply module. The back panel has an AC power plug.
Cooling
The RG-S5300-24GT2SFP2XS-E switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a minimum
clearance of 100 mm (3.94 in.) around the device for air circulation.
Figure 1-8 Airflow Direction
LED
Function
Panel ID
Color
Status
System Status LED
Status
Off
System is not powered on.
Blinking Green (3
Hz)
System is being initialized. Continuous blinking
indicates a fault.
Blinking Green
(10 Hz)
System is being located.

Ruijie 5310-E Series Specifications

General

Brand	Ruijie
Model	5310-E Series
Category	Switch
Language	English
