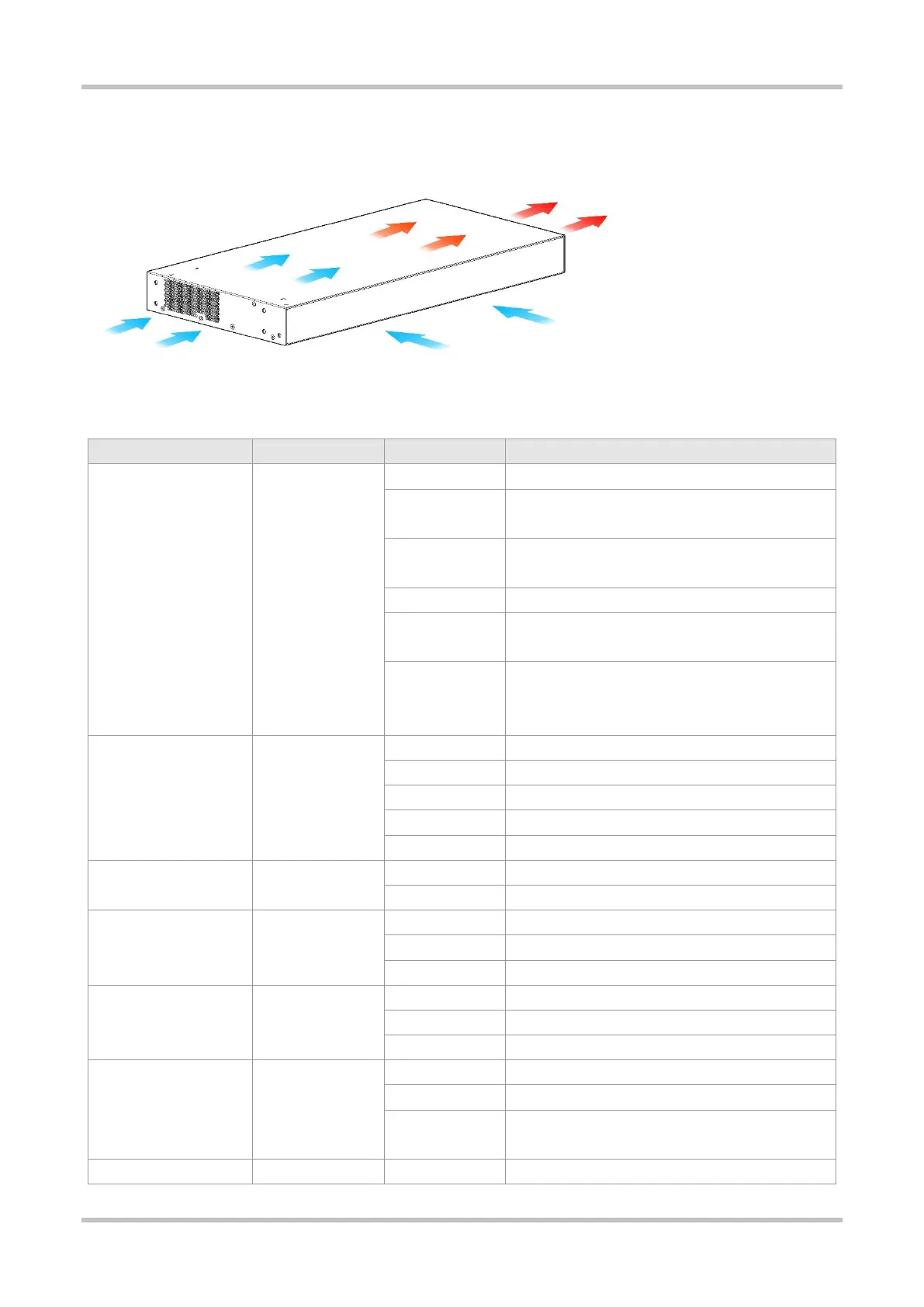

Figure 1-32 Airflow Direction
LED
Function
Panel ID
Color
Status
System Status LED
Status
Off
System is not powered on.
Blinking Green (3
Hz)
System is being initialized. Continuous blinking indicates
a fault.
Blinking Green (10
Hz)
System is being located.
Solid Green
System is operating normally.
Solid Yellow
The temperature at the air intake and exhaust vents
exceeds the threshold.
Solid Red
1. The temperature at the air intake and exhaust vents
well exceeds the threshold.
2. The system is not functioning properly.
Management Port LED
MGMT
Off
No link is detected for this port.
Solid Green
The port has made a successful 1000 Mbps link.
Blinking Green
The port is sending and receiving traffic at 1000 Mbps.
Solid Yellow
The port has made a successful 10/100 Mbps link.
Blinking Yellow
The port is sending and receiving traffic at 10/100 Mbps.
LED Mode Indicator
LED Mode
Solid Green
Switching status
Solid Yellow
PoE status
10GE SFP+ Port LED
27F to 28F
Off
No link is detected for this port.
Solid Green
The port has made a successful 1/10 Gbps link.
Blinking Green
The port is sending and receiving traffic at 1/10 Gbps.
GE SFP Port LED
25F to 26F
Off
No link is detected for this port.
Solid Green
The port has made a successful 1000 Mbps link.
Blinking Green
The port is sending and receiving traffic at 1000 Mbps.
10/100/1000Base-T
Ethernet Port LED
1F to 24F
Off
No link is detected for this port.
Solid Green
The port has made a successful 10/100/1000 Mbps link.
Blinking Green
The port is sending and receiving traffic at 10/100/1000
Mbps.
PoE Status LED
1F to 24F
Off
PoE is disabled.
