Ruijie 5310-E Series User Manual

Hardware Installation and Reference Guide Product Overview
42

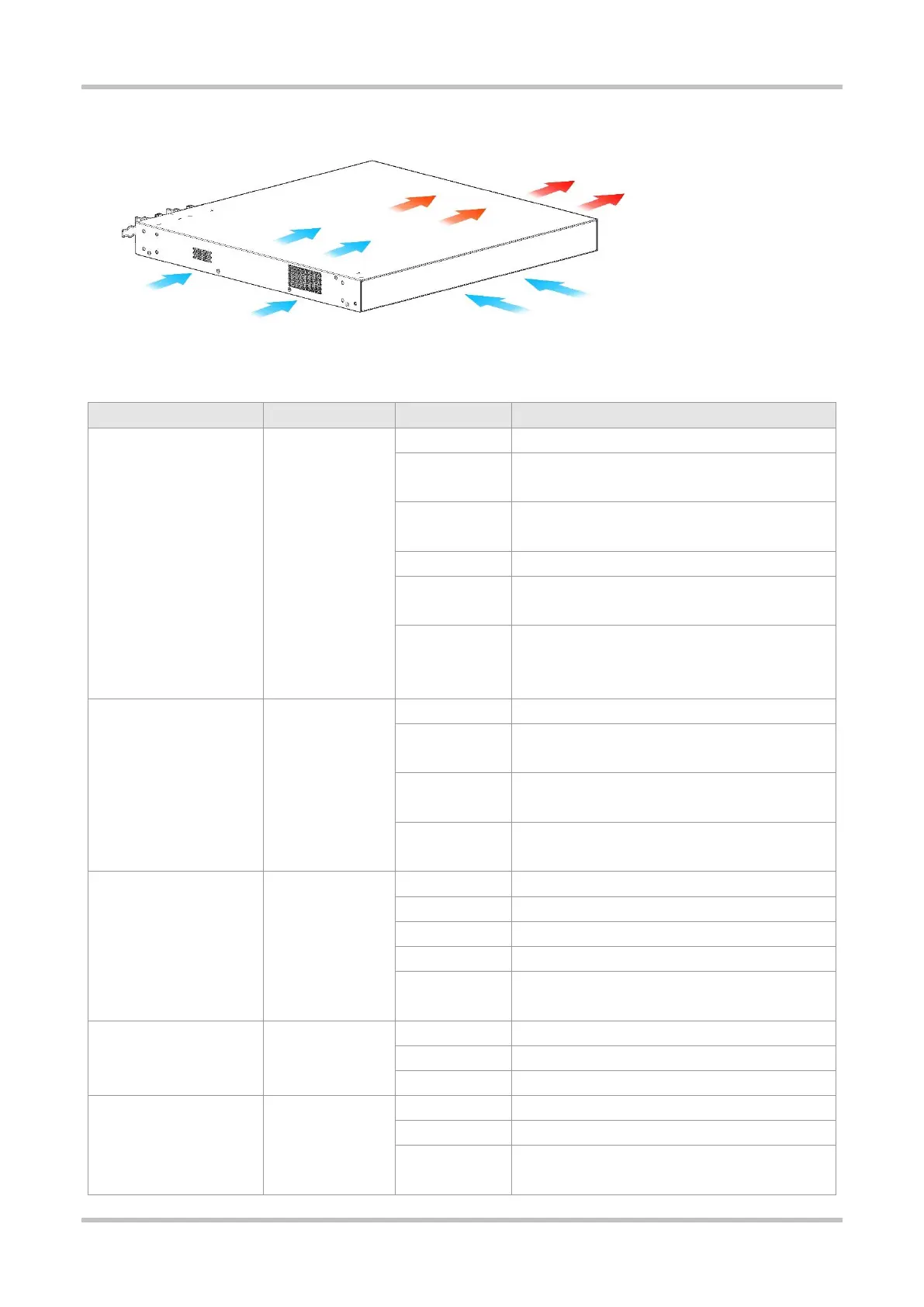

LED
Function
Panel ID
Color
Status
System Status LED
Status
Off
System is not powered on.
Blinking Green (3
Hz)
System is being initialized. Continuous blinking
indicates a fault.
Blinking Green
(10 Hz)
System is being located.
Solid Green
System is operating normally.
Solid Yellow
The temperature at the air intake and exhaust vents
exceeds the threshold.
Solid Red
1. The temperature at the air intake and exhaust vents
exceeds the threshold greatly.
2. The system is not functioning properly.
Power Supply Status LED
PWR1/PWR2
Off
The power supply module is not seated.
Solid Green
The power supply module is seated and providing
power to the switch.
Solid Yellow
The model of the power supply module is not
supported or cannot be identified.
Solid Red
The redundant power supply module is not functioning
properly or not connected with the AC power cord.
Management Port LED
MGMT
Off
No link is detected for this port.
Solid Green
The port has made a successful 1000 Mbps link.
Blinking Green
The port is sending and receiving traffic at 1000 Mbps.
Solid Yellow
The port has made a successful 10/100 Mbps link.
Blinking Yellow
The port is sending and receiving traffic at 10/100
Mbps.
10GE SFP+ Port LED
25F to 28F
Off
No link is detected for this port.
Solid Green
The port has made a successful 1/10 Gbps link.
Blinking Green
The port is sending and receiving traffic at 1/10 Gbps.
GE SFP Port LED
1F to 24F
Off
No link is detected for this port.
Solid Green
The port has made a successful 100/1000 Mbps link.
Blinking Green
The port is sending and receiving traffic at 100/1000
Mbps.
