Ruijie RG-ES100 Series User Manual

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview
Front Panel

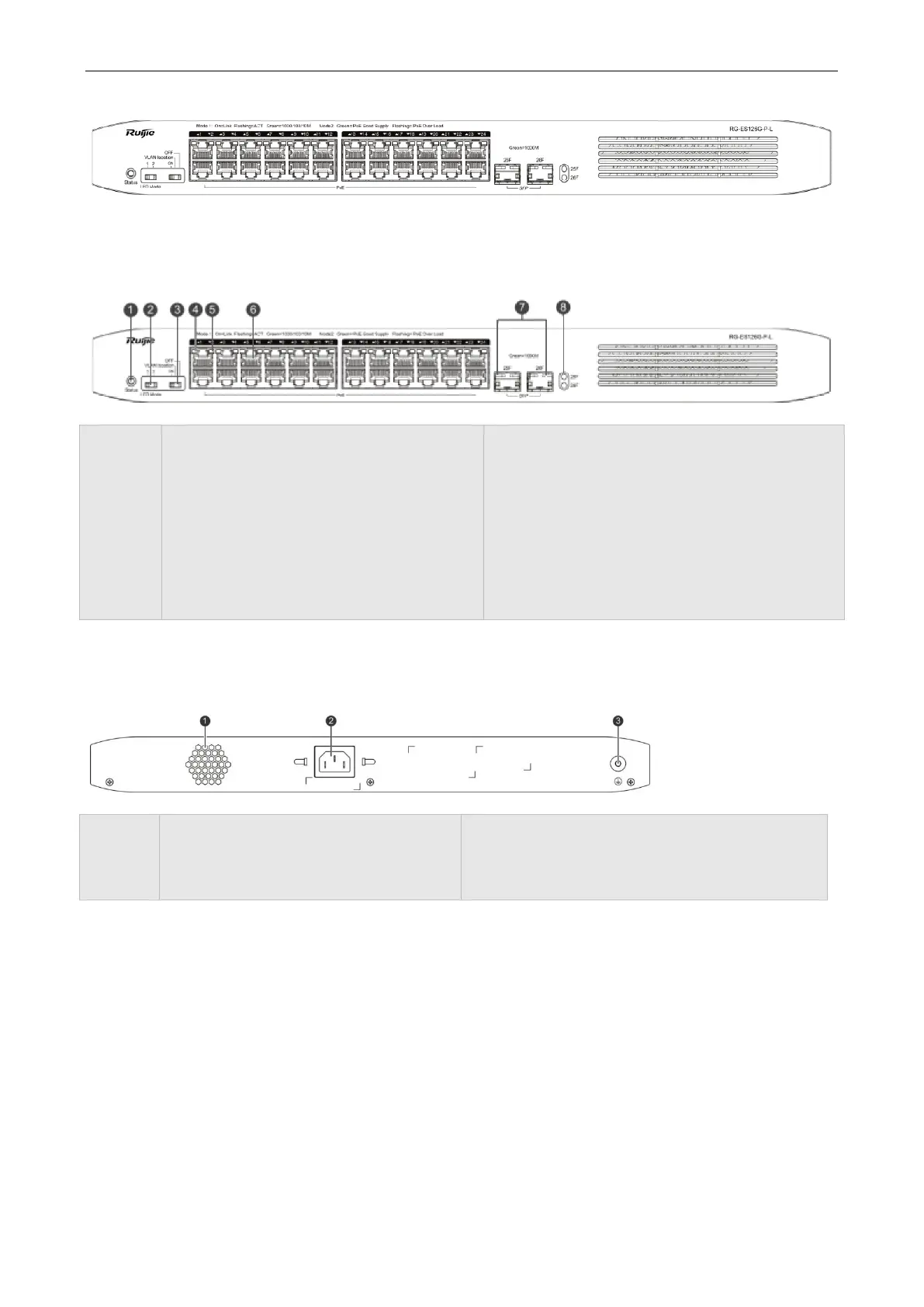

Figure 1-5 Front Panel of RG-ES126G-P-L
Note:
1. System status LED
2. Port Mode LED Switch-Over Button
3. Working Mode Switch-Over Button
4. Copper port status LED
5. Copper port status LED
6. 10/100/1000Base-T auto-sensing Ethernet port
7. 1000Base-X SFP port
8. SFP port status LED
Back Panel
Figure 1-6 Back Panel of RG-ES126G-P-L
Note:
1. Vent
2. AC power port
3. Grounding pole
Heat Dissipation
The RG-ES126G-P-L adopts turbine fans for heat dissipation, thereby ensuring normal function of the device in the
specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow
air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents. Figure 1-7
shows the flow scheme of heat dissipation.
Figure 1-7 Flow Scheme of Heat Dissipation
