This device relies on the separate protective earthing terminal.
The device installation shall be permanently connected to building earth by a skilled person.
Heat Dissipation
RG-NBS3200-48GT4XS adopts side-to-rear heat dissipation, thereby ensuring normal function of the device in the
specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to
allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

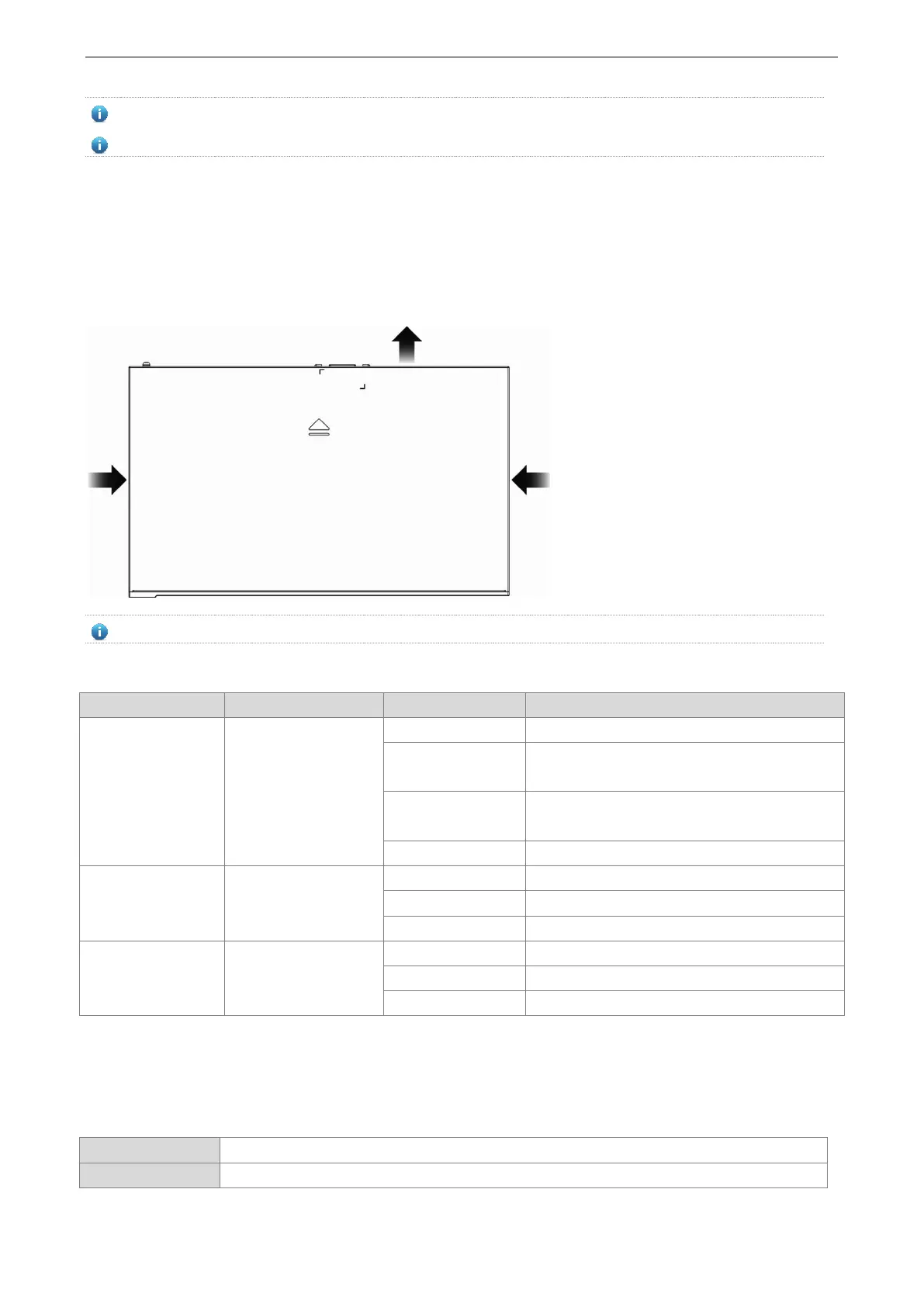

Figure 1-16 Flow Scheme of Heat Dissipation
When you install devices, reserve 1U (44.45 cm) distance space between neighbor devices to allow air circulation.
LED
LED
Panel Identification
State
Meaning
System status LED
Status
Off
The switch is not receiving power.
Blinking green
(0.5Hz)
The switch is running, but is not connected to
Ruijie Cloud.
Blinking green
(10Hz)
The switch is being upgraded or initialized.
Solid green
The switch is connected to Ruijie Cloud.
10/100/1000Base-T
Ethernet port status
LED
1-48
Off
The port is not connected.
Solid green
The port is connected at 10/100/1000 Mbps.
Blinking green
The port is receiving or transmitting traffic.
SFP+ port status
LED
49F-52F
Off
The port is not connected.
Solid green
The port is connected.
Blinking green
The port is receiving or transmitting traffic.
1.5 RG-NBS3200-48GT4XS-P
Technical Specifications
Model
RG-NBS3200-48GT4XS-P
CPU
Built-in CPU, dual-core processor, 1GHz
