Hardware Installation and Reference Guide Installing the Switch
33

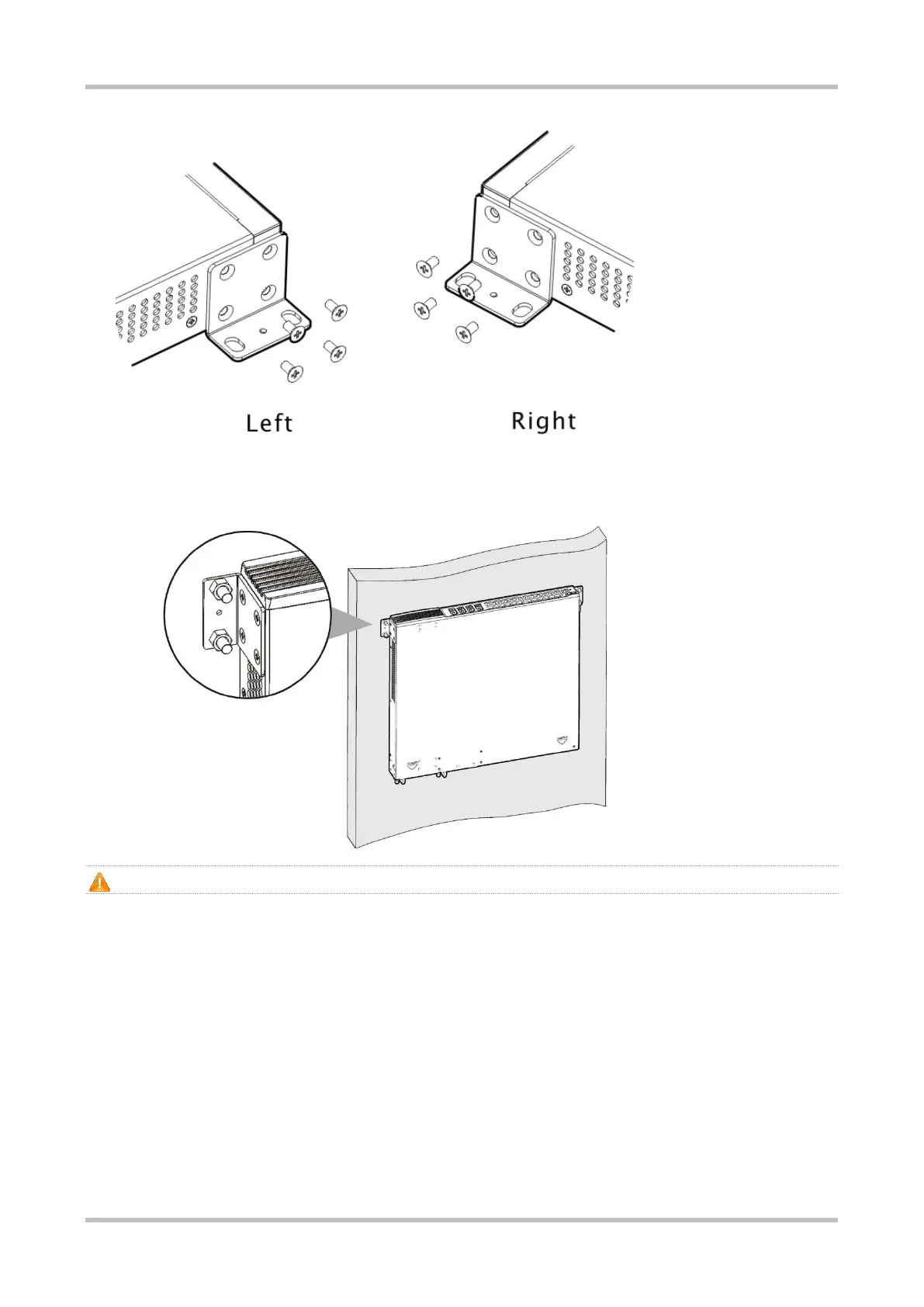

2. Use expansion screws to secure the switch to a wall.
Figure 3-5 Securing the Switch to the Wall
If wall mount is adopted, the device can only be mounted on a concrete or non-flammable surface.
3.3.3 Mounting the Switch on a Workbench
In many cases, users do not have a standard 19-inch rack. The common solution is to place the switch on a clean workbench.
1. Attach the four rubber pads to the four corners at the bottom of the switch.
Figure 3-6 Attaching the Rubber Pads to the Four Corners
