Hardware Installation and Reference Guide Appendix D — Cabling Recommendations in Installation
52
during commissioning.
The power cords cannot be bundled on the guide rails of moving parts.
The power cables connecting moving parts such as door grounding wires should be reserved with some access after assembled.
When the moving part reaches the installation position, the remaining part should not touch heat sources, sharp corners, or
sharp edges. If heat sources cannot be avoided, high-temperature cables should be used.
When using screw threads to fasten cable terminals, the bolt or screw must be tightly fastened, and anti-loosening measures
should be taken, as shown in Figure D-4.

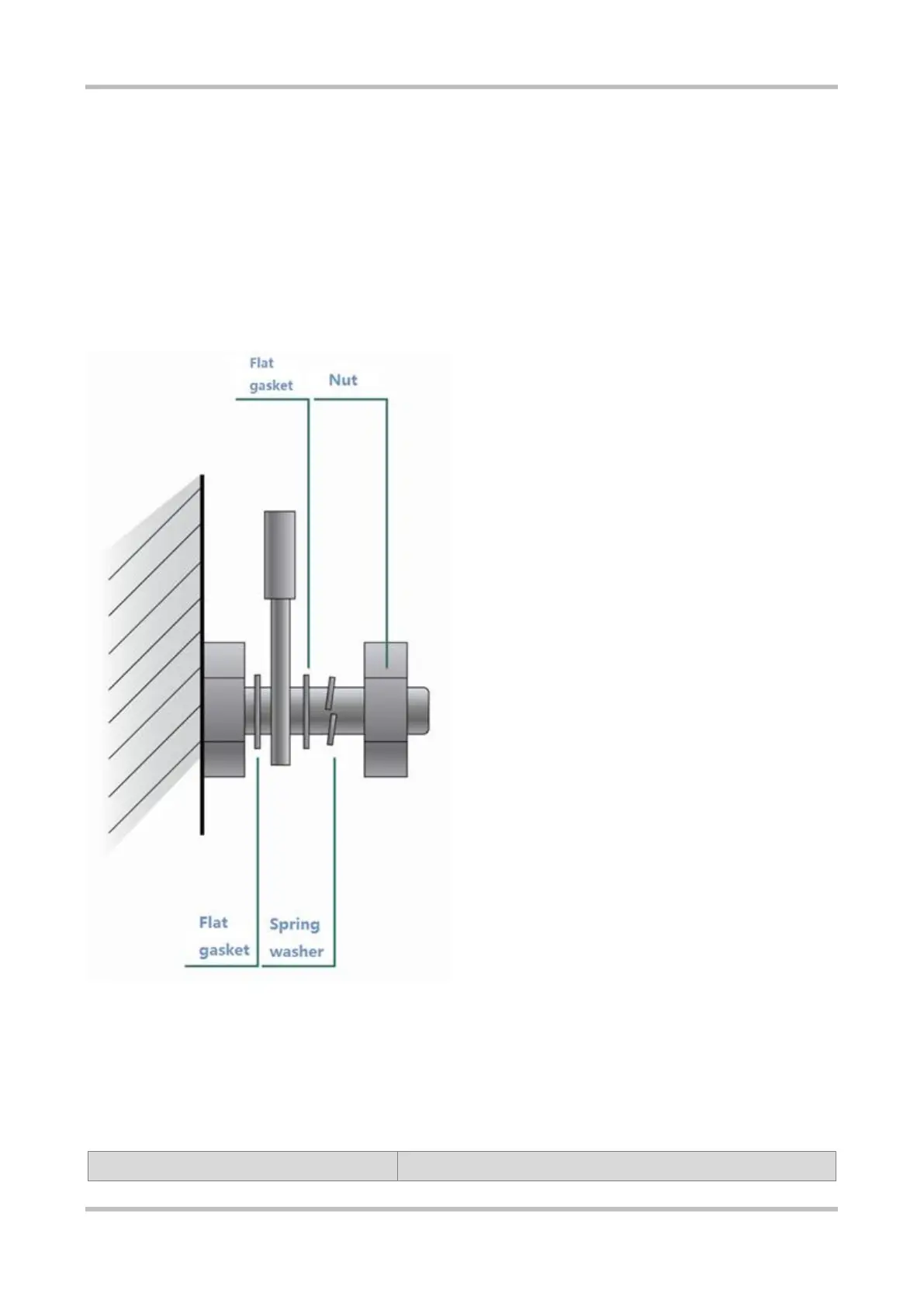

Figure D-4 Cable Fastening
The hard power cable should be fastened by the terminal connection area to prevent stress.
Do not use self-tapping screws to fasten terminals.
Power cables of the same type and in the same cabling direction should be bundled up into cable bunches, with cables in cable
bunches clean and straight.
Binding by using buckles should be performed according to Table D-1.
Cable Bunch Diameter (mm)
