Hardware Installation and Reference Guide Verifying Operating Status
36

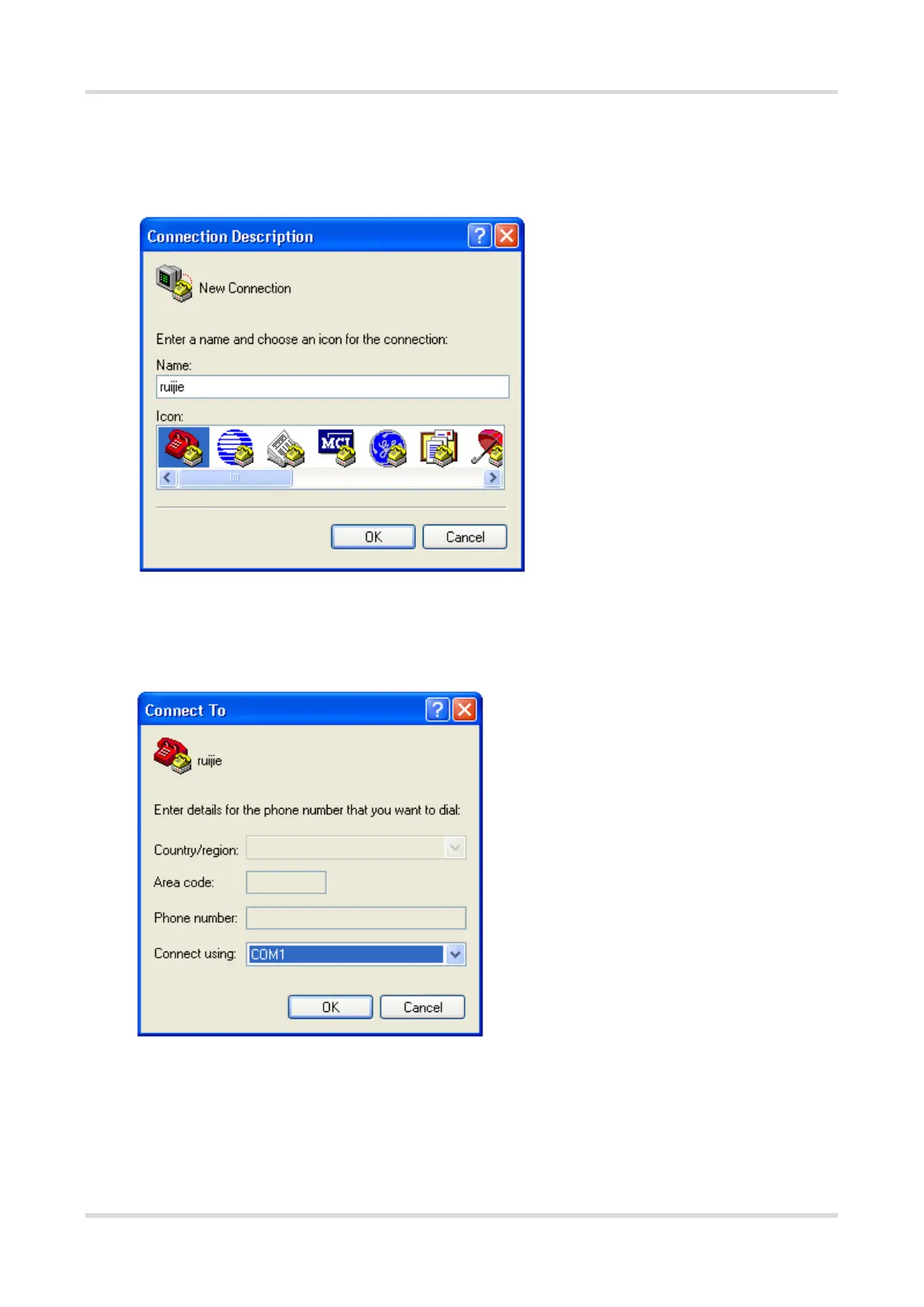

Figure 4-2 Schematic diagram of the configuration environment
(3) Enter the name of the new connection and click OK. A window appears as shown in Figure 4-3. In the column
of Connect Using field, select the serial port you want to use.
Figure 4-3 Schematic diagram of the configuration environment
(4) After the serial port is selected, please click OK. The Serial Port Parameter Setting window is displayed, as
shown in Figure 4-4. Set the baud rate as 9600, data bit as 8, parity check as none, stop bit as 1, and flow
control as none.
