Ruijie RG-S6150-X Series User Manual

Hardware Installation and Reference Guide Appendix
46
2
Input Receive Data-
Output Transmit Data-
3
Output Transmit Data+
Input Receive Data+
6
Output Transmit Data-
Input Receive Data-
4, 5, 7, 8
Not Used
Not Used

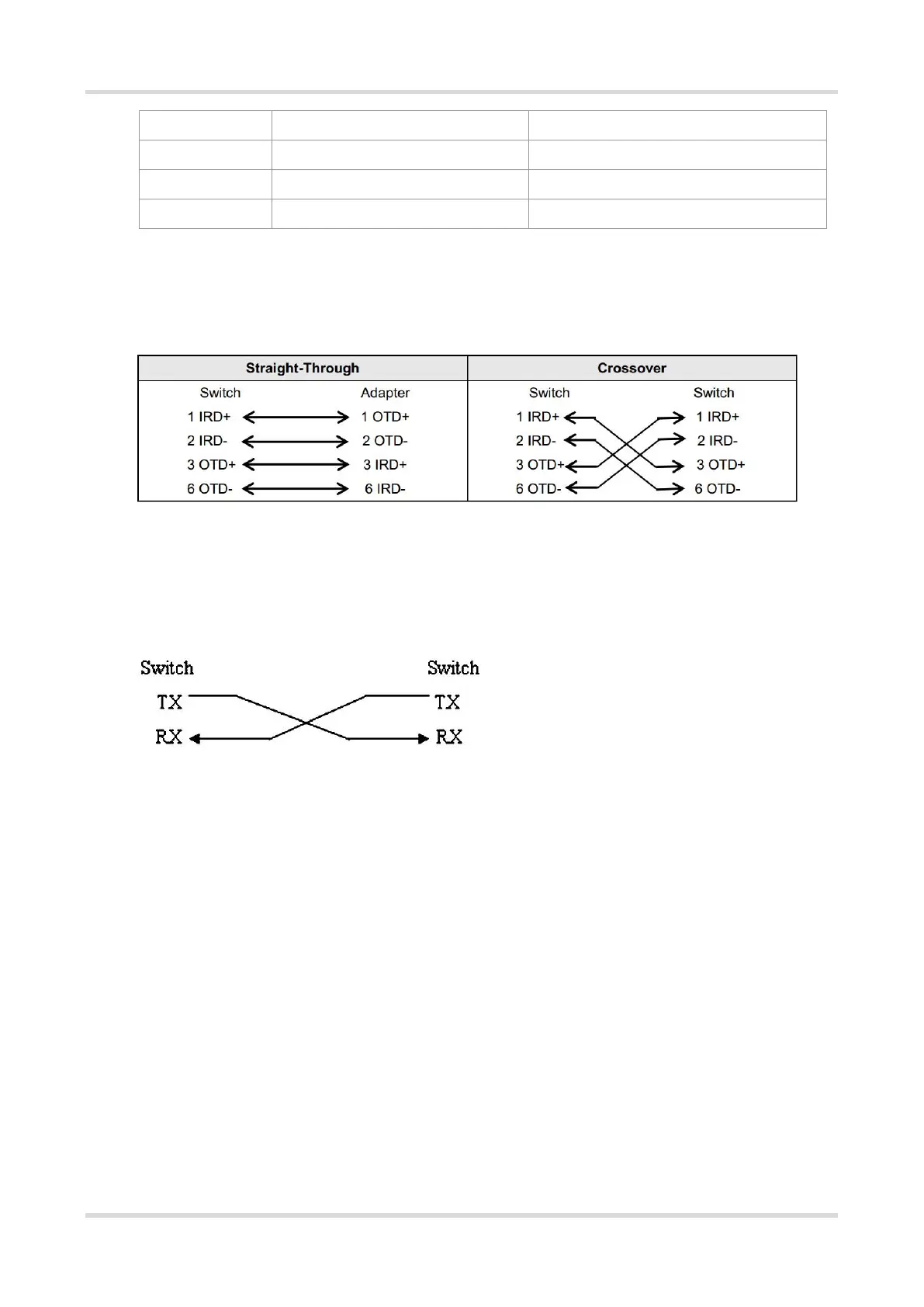

Figure 7-2 shows the feasible connections of the straight-through and crossover twisted pairs of the 100BASE-
TX.
Figure 7-2 Connection of the twisted pairs of the 100BASE-TX
Fiber Connection
For the fiber ports, select single-mode or multiple-mode fibers for connection according to the fiber module
connected. Figure 7-3 shows connection of fiber cables:
Figure 7-3 Fiber Connection
