Hardware Installation and Reference Guide Appendix
57

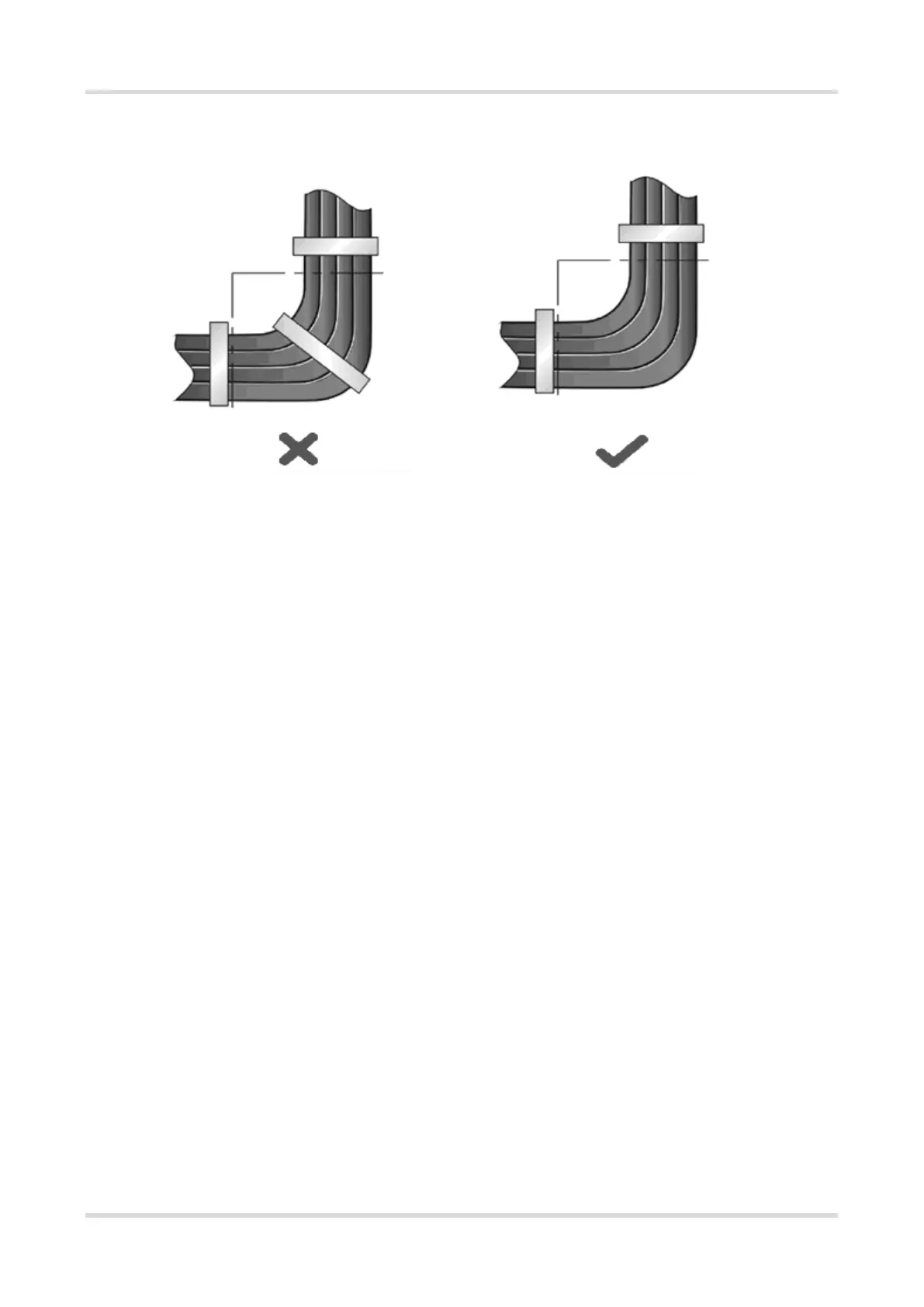

Figure 7-8 Bundling up cables (3)
Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of
the cabinet or cabling slot. The proper position indicates a position that will not affect device running or cause
device damage or cable damage during commissioning.
Power cords cannot be bundled on the guide rails of moving parts.
The power cables connecting moving parts such as door grounding wires should be reserved with some
access after assembled to avoid suffering tension or stress. When the moving part reaches the installation
position, the remaining part should not touch heat sources, sharp corners, or sharp edges. If heat sources
cannot be avoided, high-temperature cables should be used.
When using screw threads to fasten cable terminals, the bolt or screw must be tightly fastened, and anti-
loosening measures should be taken, as shown in Figure 7-9.
Figure 7-9 Cable fastening
