Ruijie RG-WLAN Series Web-Based Configuration Guide

Configuration Guide Configuring Web Management
Add a WLAN: Click WLAN Configuration Wizard to open the window of Figure 31. Configure parameters
according to the wizard and click Finish to finish the addition operation.
Edit a WLAN: Click Edit in the table above to open the window of Figure 31. Configure parameters according to
the wizard and click Finish to finish the editing operation.
Delete a WLAN: Click Delete in the table above and click OK in the displayed dialog box to finish the deletion
operation.

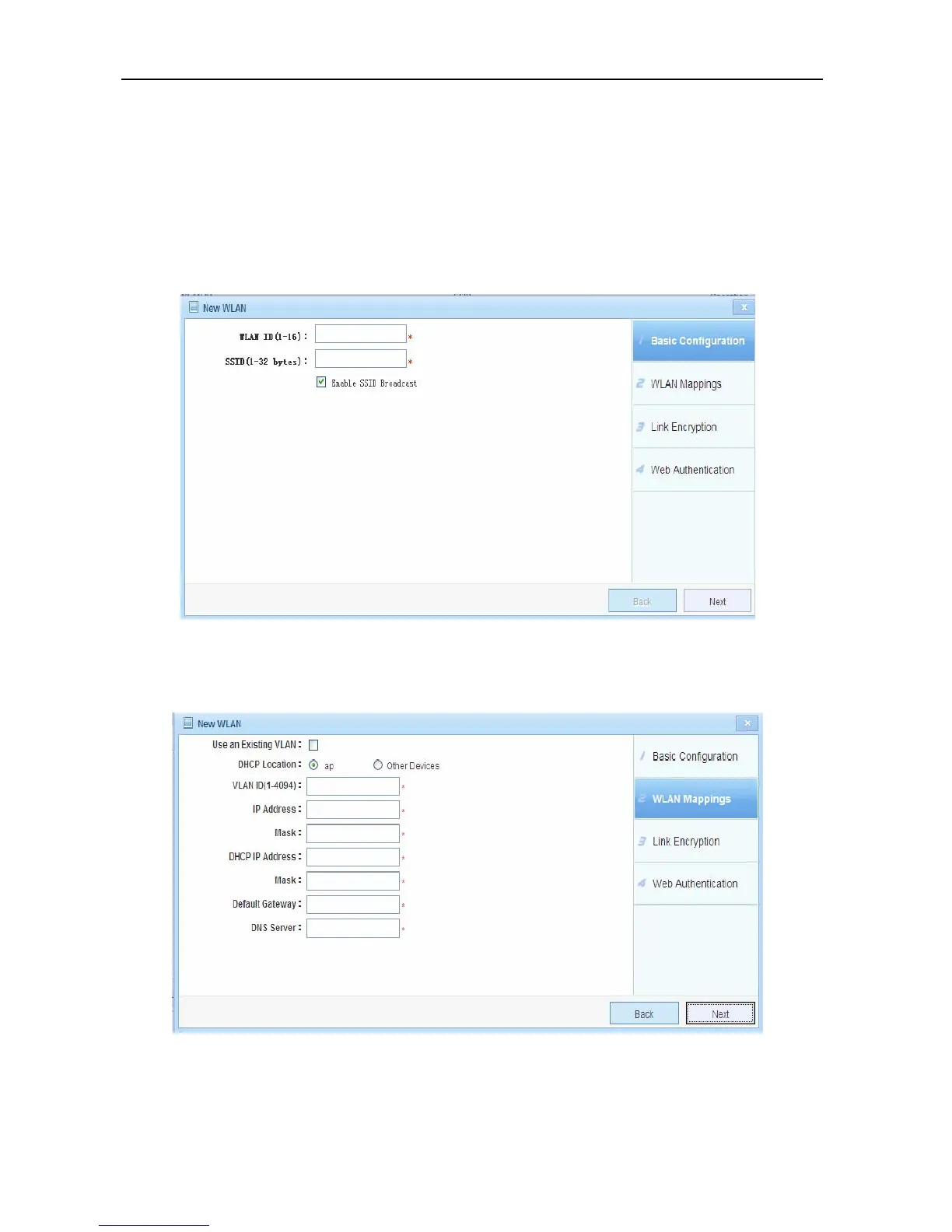

Figure 31 WLAN Configuration Wizard
Configure basic information: Set parameters to create a WLAN.
Figure 32 WLAN Configuration Wizard
WLAN mapping information: Configure mappings between WLAN and VLAN for the specified AP group.
