Ruijie RG-WLAN Series Web-Based Configuration Guide

Configuration Guide Configuring Web Management
ACL Validity Time

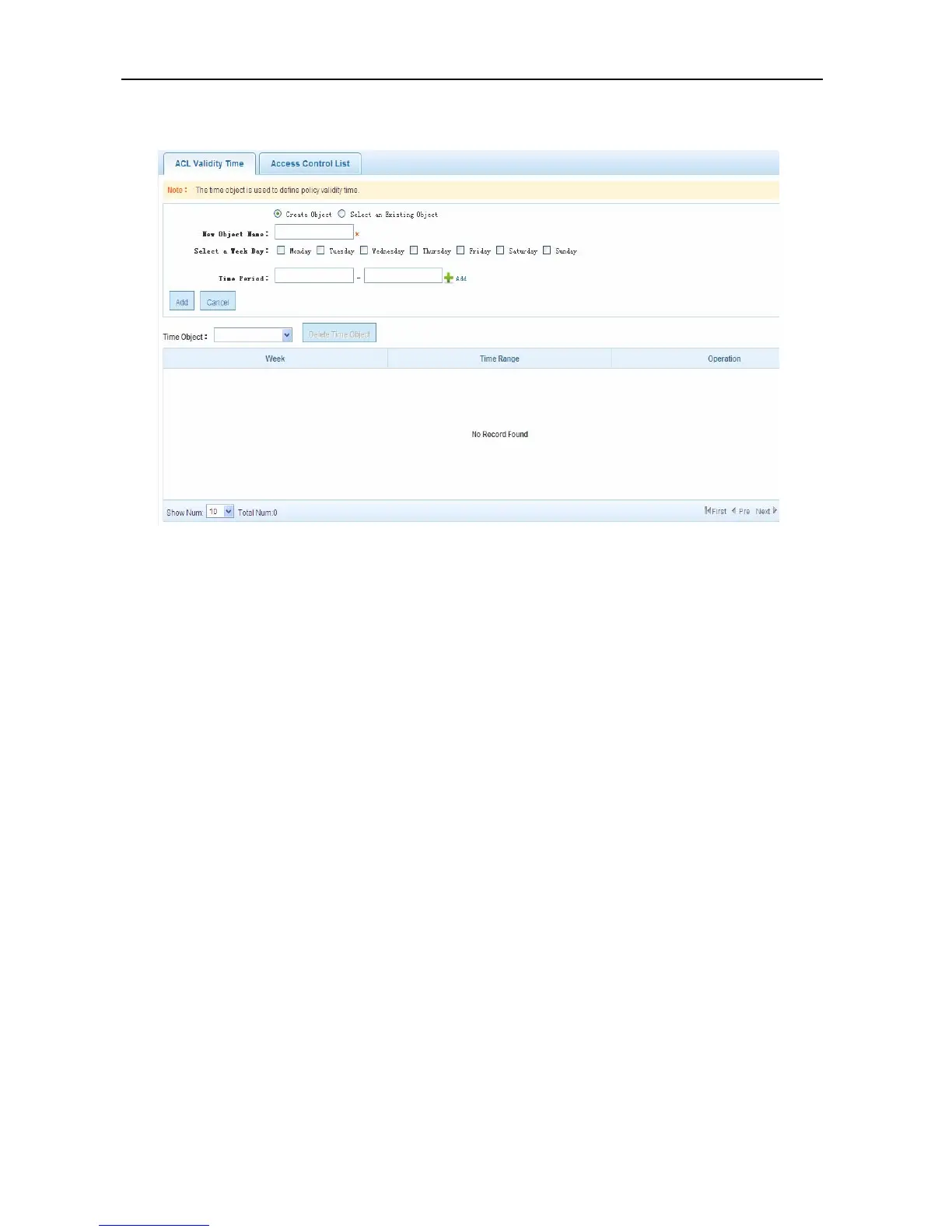

Figure 37 ACL Validity Time
Configuration description:
Add a time object: Tick Create Object, enter parameters into the form, and click Add to finish the addition
operation.
Edit a time object: Tick Select an Existing Object, edit parameters, and click Add to finish the editing operation.
Delete a time object: Select a time object from the Time Object pull-down list, click Delete in the table above,
and click OK in the displayed dialog box to finish the deletion operation.
Edit a time range: Click Edit in the table above, modify parameters in the upper form on the page, and click Edit
to finish the editing operation.
Delete a time range: Click Delete in the table, and click OK in the displayed dialog box to finish the deletion
operation.
