TECHNICAL MANUAL FOR THE RDR BL3 - V1.1 DRIVE ROLLER Rev. 21/09/2018 page 16
Warning the extra short version of the Drive Rollers could be a little noisier, as noise dampeners removed to
achieve smaller roller lengths.

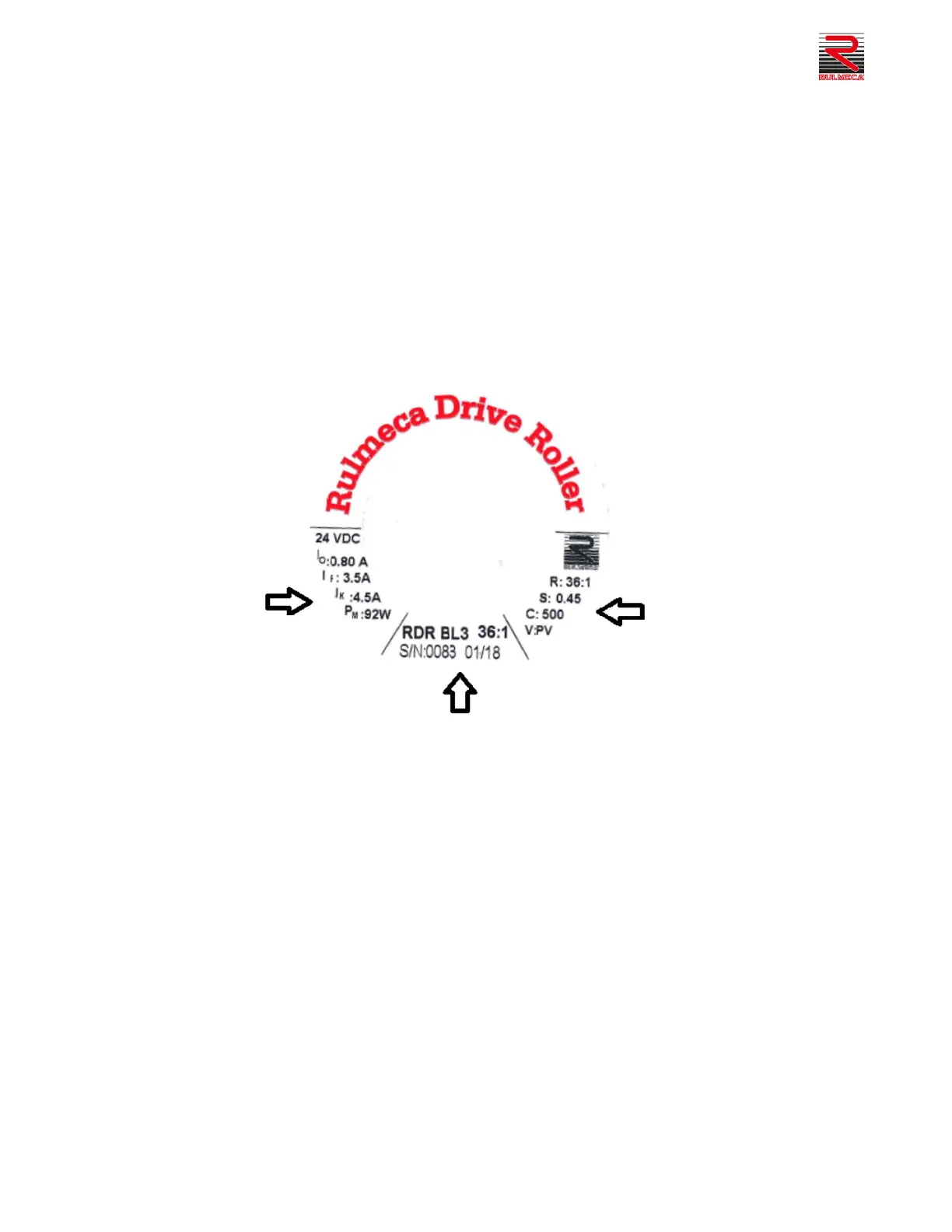

6.3 Labelling Drive Roller
Each RDR Drive Roller has an adhesive identifying label placed on the plastic head on the cable output side.
The information on the label enables all the manufacturing data on the Drive Roller to be traced.
If you require information, contact Rulmeca Customer Care, quoting the serial number of the Drive Roller (S/N) so
that you can obtain the information more easily.
IDENTIFYING DATA
TYPE – REDUCTION
SERIAL NUMBER –
MONTH/YEAR
DRIVE MOTOR PERFORMANCE
R: REDUCTION RATIO
S: MAXIMUM SPEED
C: ROLLER LENGTH
V: CONTROL HEAD
MOTOR ELECTICAL DATA
I
O
: NO LOAD CURRENT
I
F
: NOMINAL CURRENT
I
K
: MAXIMUM CURRENT
P
M
: MOTOR POWER
