MODEL
53515/53615/63515/63615/73515/73615
46
3.8. A
ssembly & Part
s
Constructio

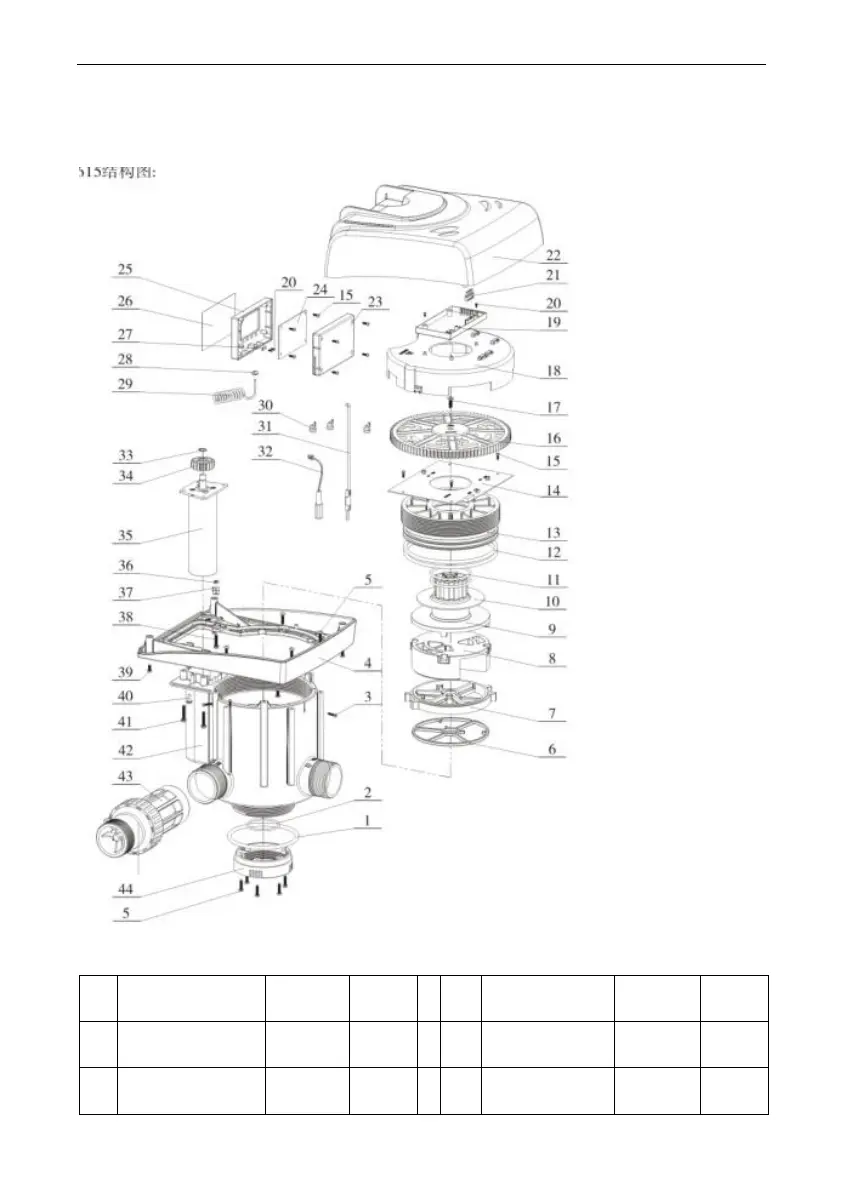

n figure of 5
3615
53615 V
alve Body
Components
and Part
No.:
Item
No.
Description
Part No.
Quantity
Item
No.
Description
Part No.
Quantity
1
O-ring
104.6X5.7
8378146
1
23
Cover
8315016
1
2
O-ring 48.9X2.62
8378071
1
24
Display Board
6381003
1
49
51
Table of Contents
Default Chapter
4
Table of Contents
4
Notice
5
1 Product Overview
7
Main Application &Applicability
7
Product Characteristics
7
Service Condition
10
Product Structure and Technical Parameters
11
Installation
14
2 Basic Setting & Usage
18
The Function of PC Board
19
Basic Setting & Usage
20
3 Applications
24
Flow Chart
24
The Function and Connection of PC Board
26
Signal Output Connector
28
Interlock
32
Pressure Relief Output
32
Remote Handling Connector
33
Interlock System
33
Series System
34
System Configuration and Flow Rate Curve
34
Parameter Settlement
37
Parameter Enquiry and Setting
39
Trial Running
44
Trouble-Shooting
45
Assembly & Parts
50
4 Warranty Card
59
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
