MODEL：F67Q/F71Q/F68Q/F69Q/F116Q/F117Q
33
Use interlock cable to connect the black socket of one valve with the blue
socket of another valve in series.
One system with several valves, if interlock cable is disconnected, the
system is divided into two individual system.

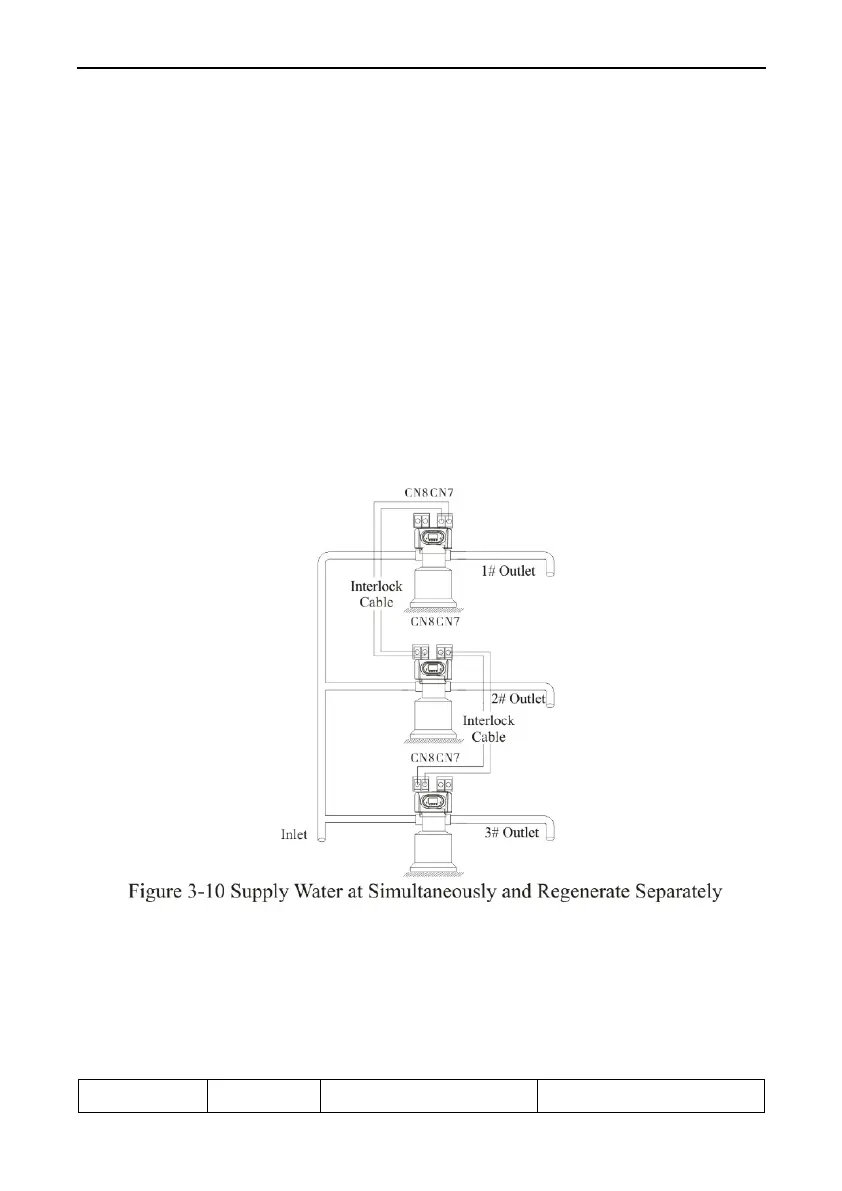

C. Double (Multiple) Valves, Supply Water Simultaneously
and Regenerate Separately
It only needs to connect the two or more valves by interlock cables. The
wiring refers to Figure3-10.
3.3 System Configuration and Flow Rate Curve
A.Product Configuration
Commonly used tank size and filter material volume configuration for
filter system
Tank Size Volume of Carbon Filter Sand Filter
