E. Interlock System
2 or more than 2 valves are interlocked connecting in one system
and all valves are in service but regenerate individually. The wiring refer
to Figure3-12.

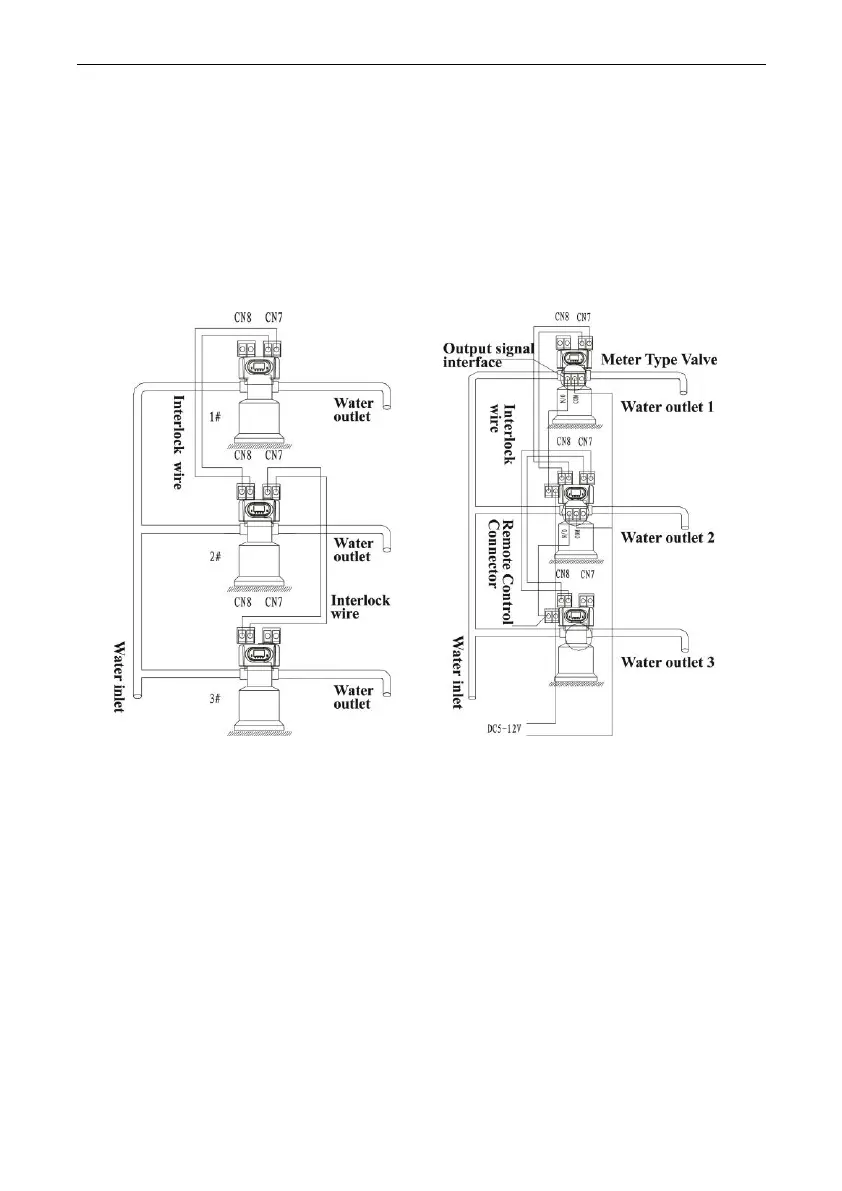

Figure 3-12 Interlock system Figure 3-13 Series system
F. Series System
This is a 2 or more than 2 valves system, all in service, with one flow
meter for the entire system. For the time type valve, the regeneration
time should be set and adjusted to the Max; for the volume type valve,
connect its signal output connector with the remote handle connector of
the time-type valve. That can realize the function of supplying water
simultaneously and regenerating orderly. The wiring refer to Figure 3-13:
