MODEL: N74A1-63510/N74A3-63610/N74B1-63510B/N74B3-63610B
25

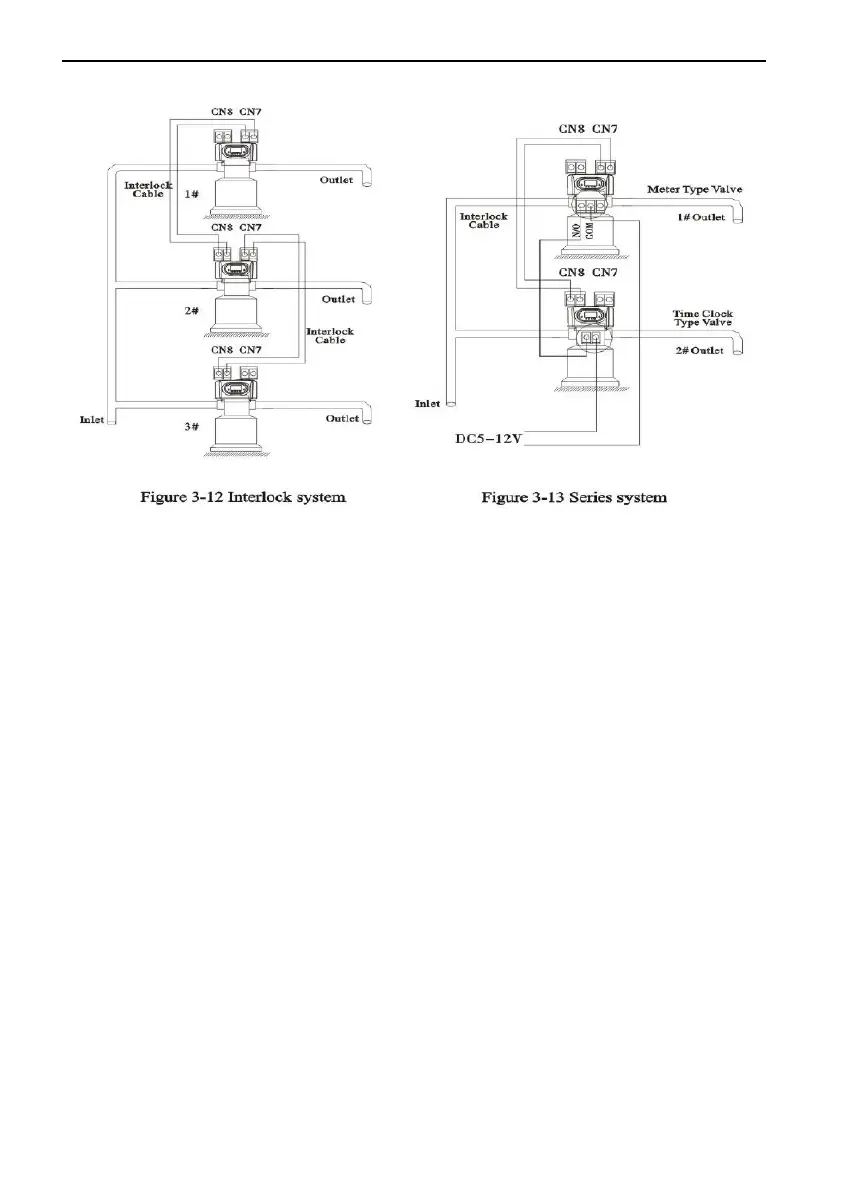

F. Series System
This is a 2 or more than 2 valves system, all in service, with one flow
meter for the entire system. For the time type valve, the regeneration time
should be set and adjusted to the Max; for the meter type valve, connect its
signal output connector with the remote handle connector of the time clock
type valve. That can realize the function of supplying water simultaneously
and regenerating orderly. The wiring refers to Figure 3-13.
