Runxin N74A3 - System Configuration and Flow Rate Curve; Product Configuration; Flow Rate Characteristic; Pressure-Flow Rate Curve

MODEL: N74A1-63510/N74A3-63610/N74B1-63510B/N74B3-63610B
26
3.3.System Configuration and Flow Rate Curve
A. Product Configuration
Product configuration with tank, resin volume, brine tank and injector.
Tank Size
（mm）
Resin
Volume
（L）
Flow
Rate（t/h）
Brine Tank
Size (mm)
The Minimum
Salt
Consumption
for
Regeneration
（Kg）
Injector
Model
φ500×1800
200
5.0
φ740×1275
30.00
7401
φ600×1800
300
7.0
φ740×1275
45.00
7403
φ750×1800
450
11.0
φ840×1335
67.50
7404
Attention: The flow rate calculation is based on linear velocity 25 m/hr; the
minimum salt consumption for regeneration calculation is based on salt
consumption 150 g /L (Resin).

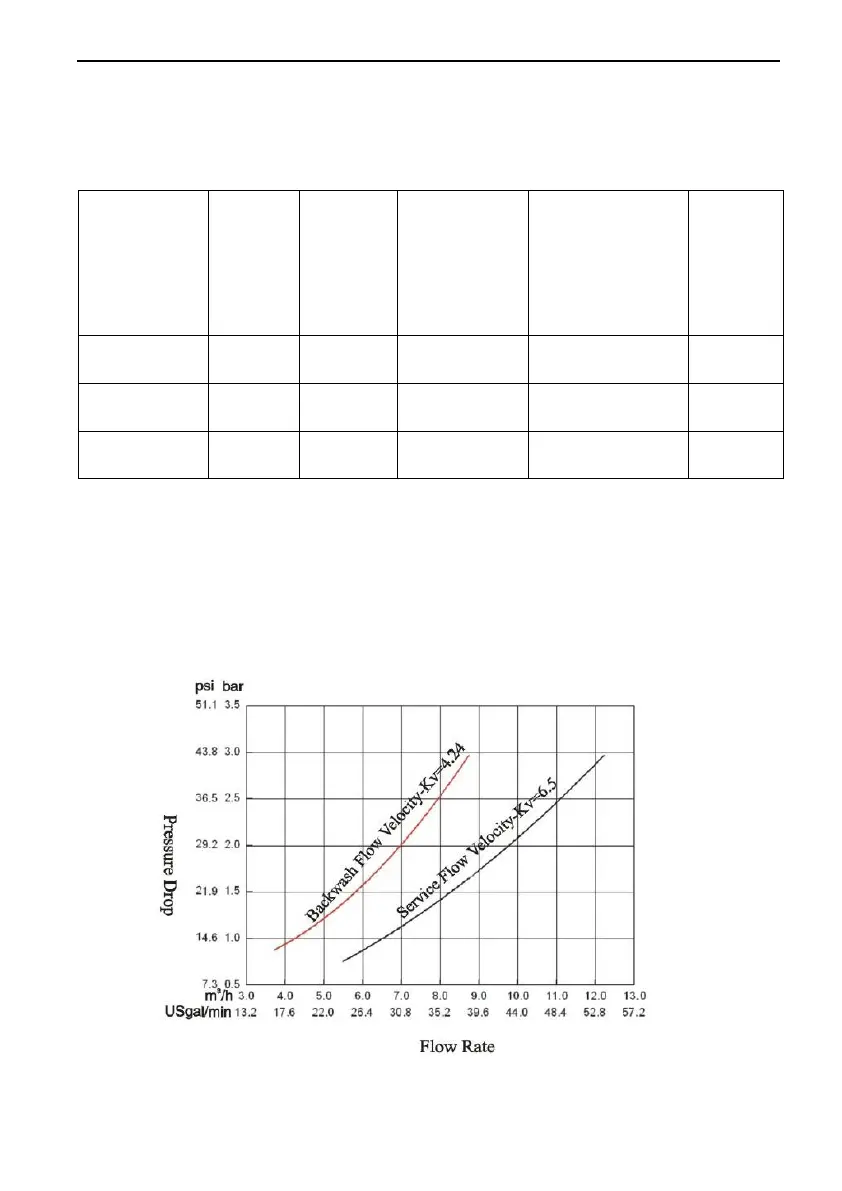

B. Flow Rate Characteristic
1) Pressure-flow rate curve
2）Injector parameter table
