Russound D250LS - Front and Rear Panel

5
Russound D250LS Installation Manual
Rev. 2

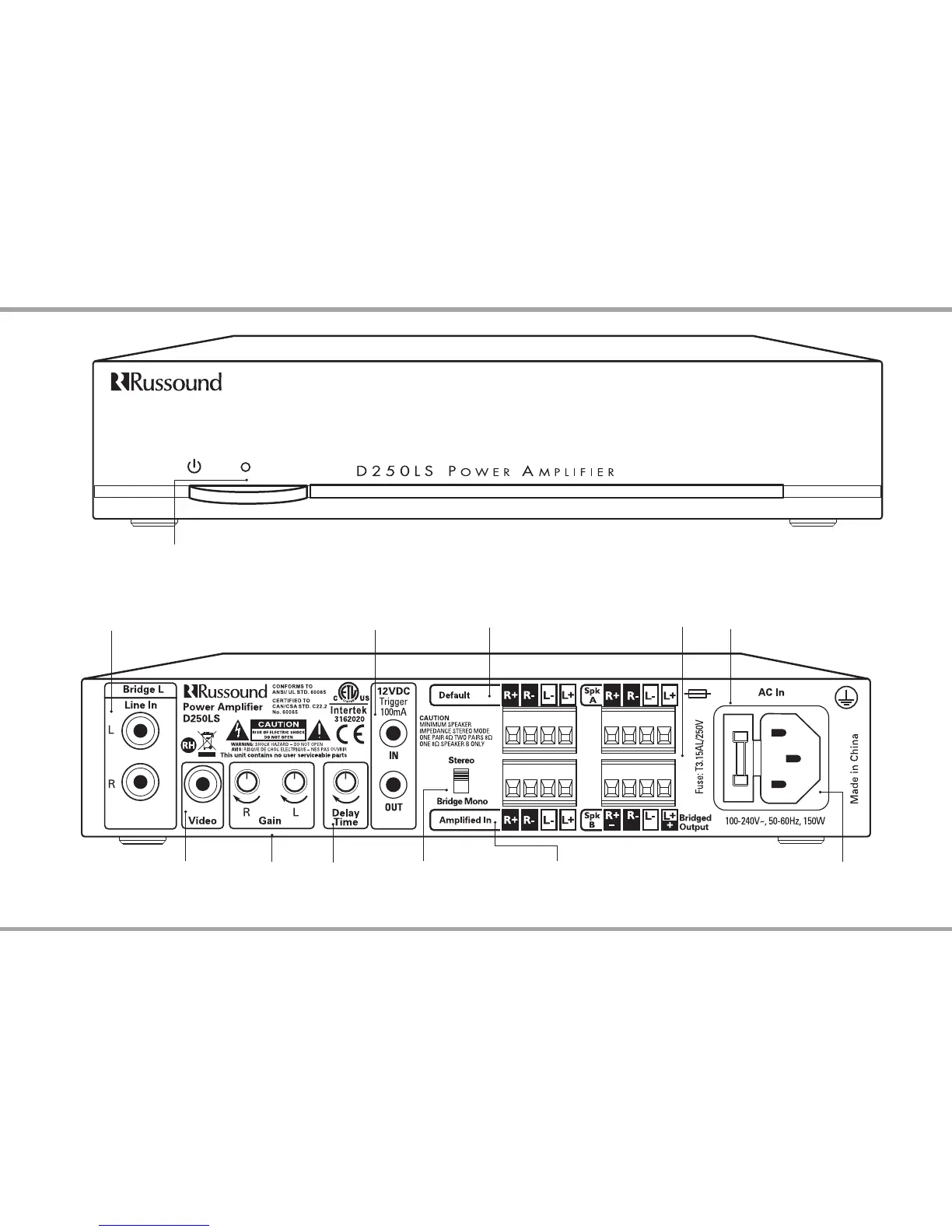

FRONT AND REAR PANEL
Speaker Outputs
Fuse Receptacle
Line Input
Delay Time
Gain Controls
Stereo/Bridge Switch
D250LS Rear Panel
12VDC Trigger in/out
D250LS Front Panel
Power Switch / LED
AC Input
Video Input
Default Input
Amplied In
