INSTALLATION OPTIONS
The D250LS amplier can be set on a tabletop or wall-mounted with screws
or hook and loop tape. Rack-mounting ears are included to install either one
D250LS in a 1U space or two units in a 1U space.
Wall Mounting
The amplier comes with two wall mounting brackets and attachment
screws. There are two attachment locations on each side of the amplier for
more mounting options. Hook and loop tape can be used as well.
Rack Mounting
The rack mounting ears support either one or two amps in a single rack
space.
To install one amplier in a rack space, use the long ear and one of the wall-
mount brackets. The unit can be mounted either to the left or right side of the
rack space.
For two units in one rack space, use the at plate to support and connect
them, and use one wall-mount bracket on each outer side of the units.
When using the two-unit mounting option, the small side ventilation slots on
the amps will be next to one another in the middle of the rack space. To avoid
overheating situations, make sure the copious top panel ventilation holes are
not blocked.

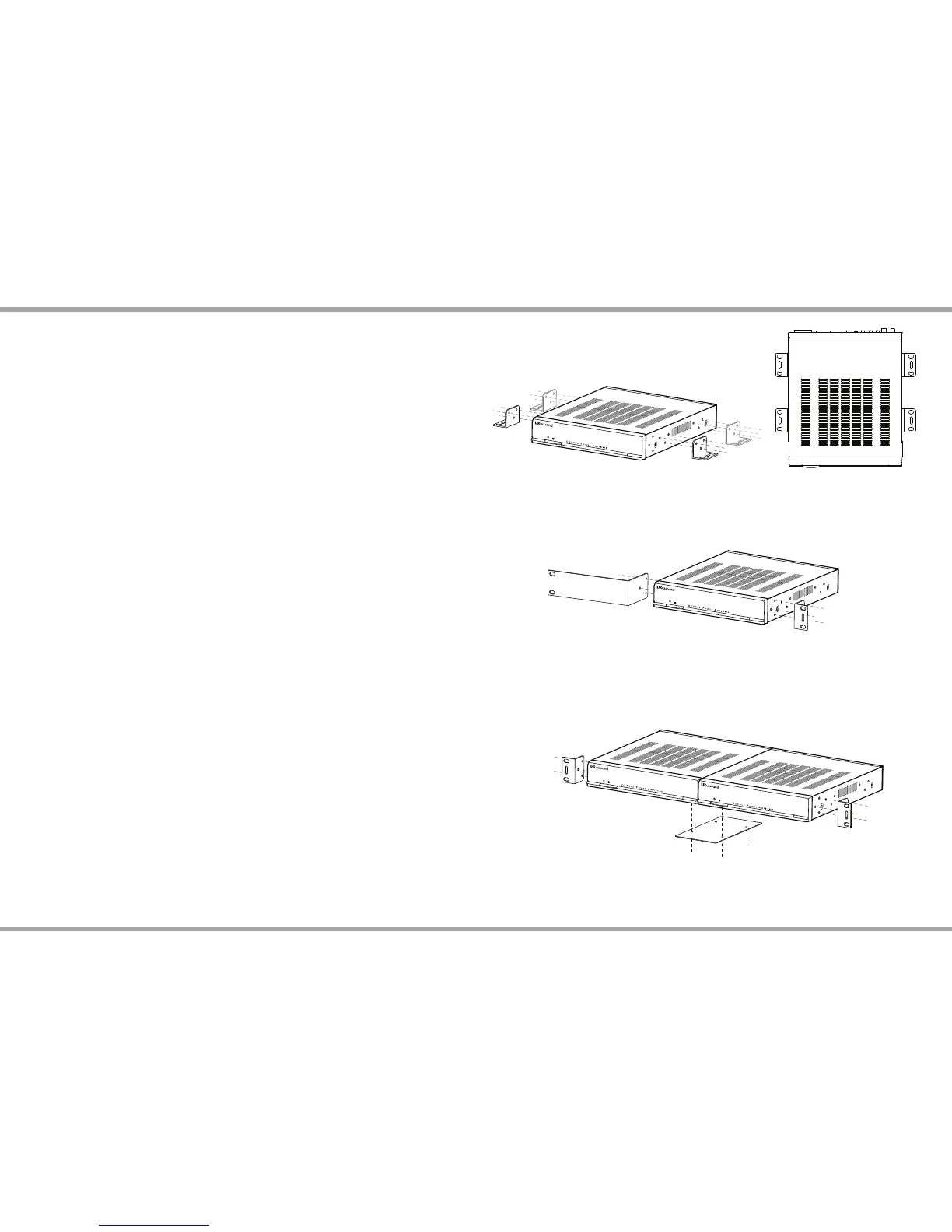

Wall mounting option
Single unit rack mounting option
Dual unit rack mounting option
