Russound D250LS - LOCAL SOURCE System CONFIGURATION

8 Russound D250LS Installation Manual Rev. 2
LOCAL SOURCE SYSTEM CONFIGURATION

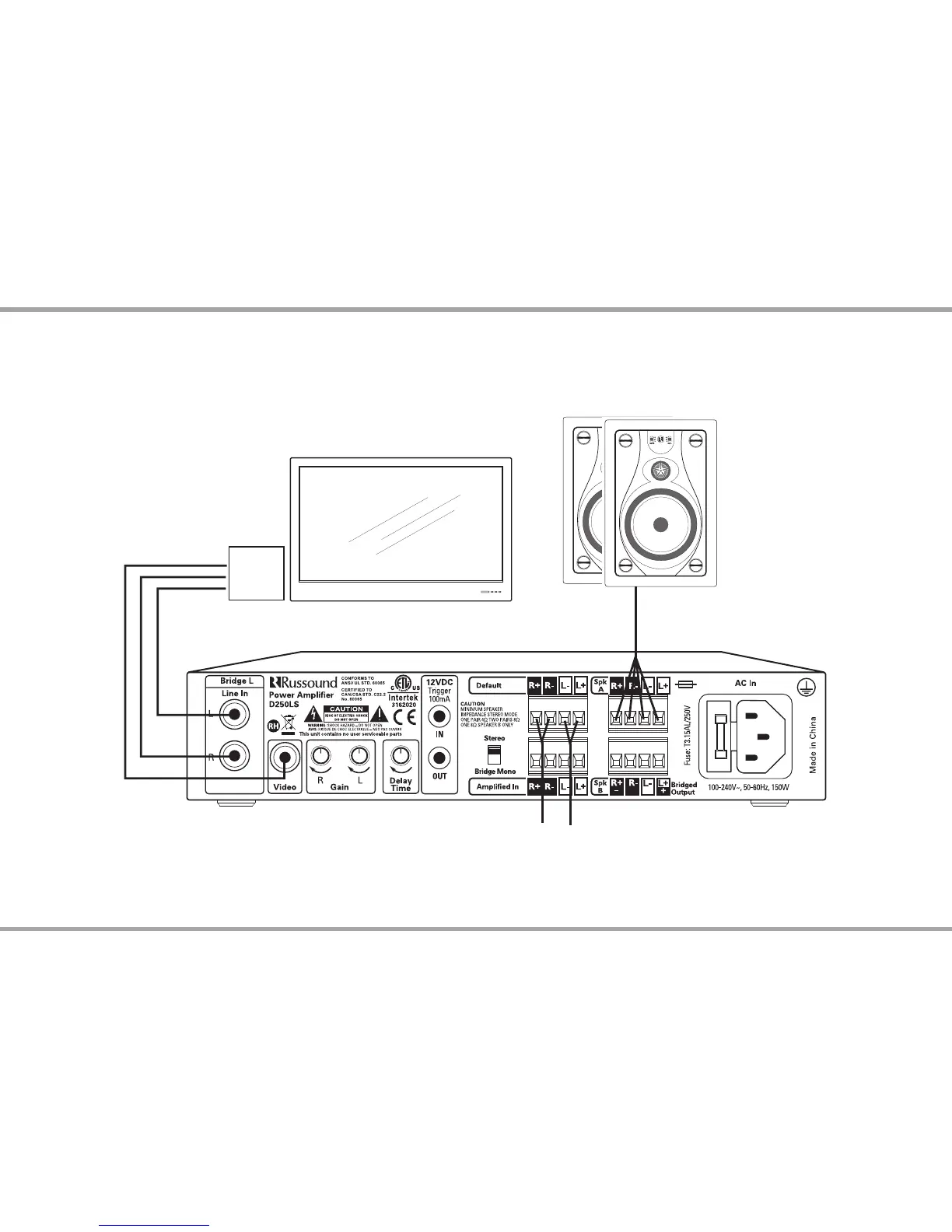

Connections for local source override of whole-house system
A/V RCA Cables
4-8 Ohm Speakers
Speaker
Cable
D250LS Amplifier
Amplified output
to room speakers
Line Outputs
Video
Right
Left
Amplified input
from audio
distribution system
Optional video sensing
Local Source (TV)
The D250LS can be used as a single-source two-channel zone amplier, or
as a local-source amplier that automatically switches between a default
source (e.g., a whole-house audio distribution system) and a local source (e.g.,
a television set in the bedroom or a PC in the oce).
