4 Operating elements and
displays
BA.GB.12-27409-05-07-FTA-jr
RUTHMANN-Steiger
®
TB270
4-3

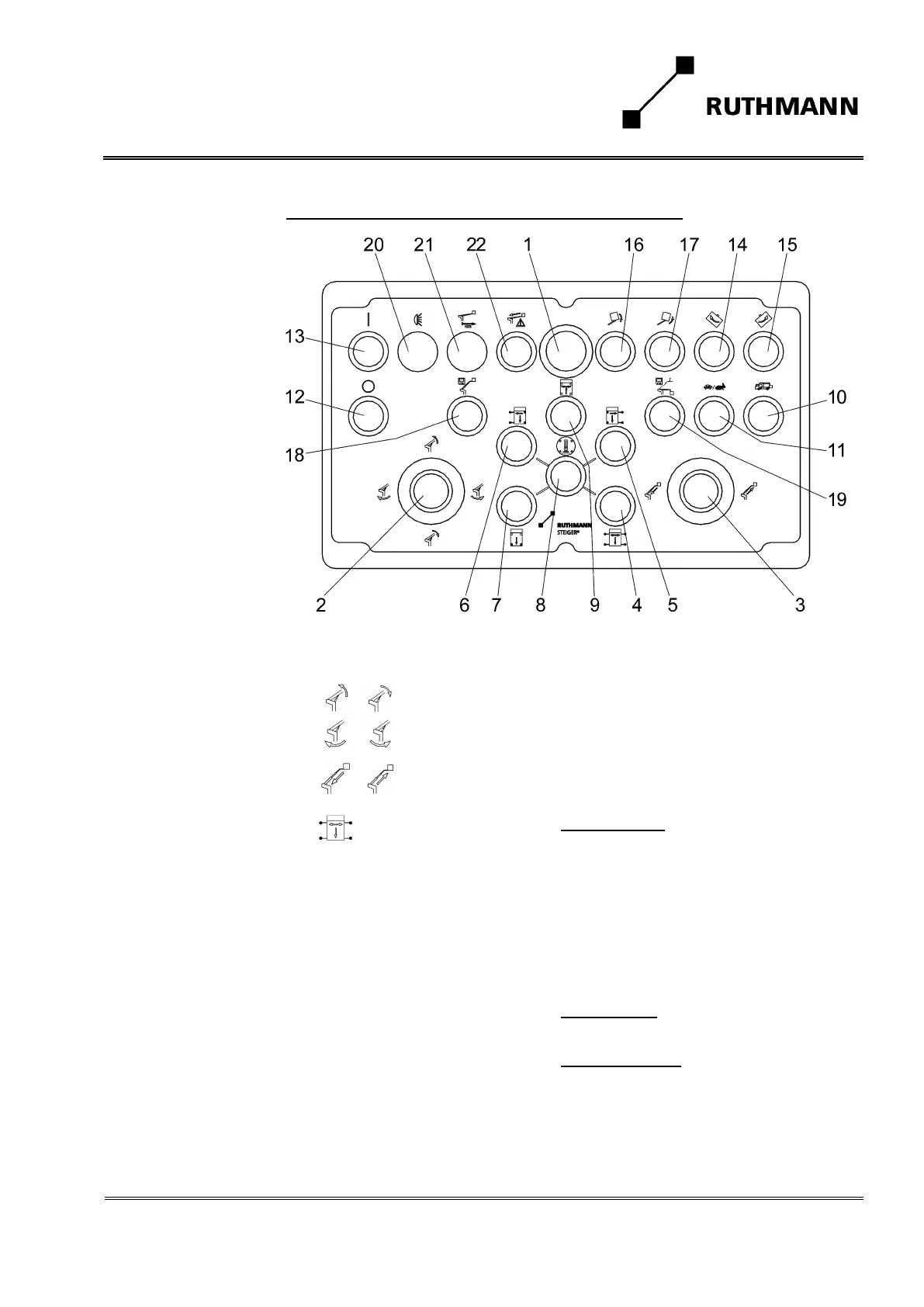

4.3.2 Control panel at switch box on working cage
1.
Push button, red
„Emergency Cut-Off“
 interrupts immediately the electrical
selection of the Steiger movements.
1.
Joystick
 Control lever for Steiger movements:
- Boom up / down
- Boom rotation left / right
1.
Joystick
 Control lever for Steiger movements:
- Telescope in / out.
1.
Luminous push but-
ton „Full jacking“ /
„Jack rear right“
 Push function:
- Jacking-variant with stabilizing jacks
extended horizontically on the left
and right.
- Jacking on both sides within vehicle
profile after having reached the min-
imum jacking.
- Activates push button „Jack vertical
down“ for control of rear right jack.
 Blinking light:
- Jack has ground contact.
 Permanent light:
- With minimum jacking, only two lu-
minous push button for jacks illumi-
nate simultaneously: „Jack rear
right“ and „Jack rear left“.
- All illuminated push buttons for
