HEAVY DUTY
SOD CUTTER
22

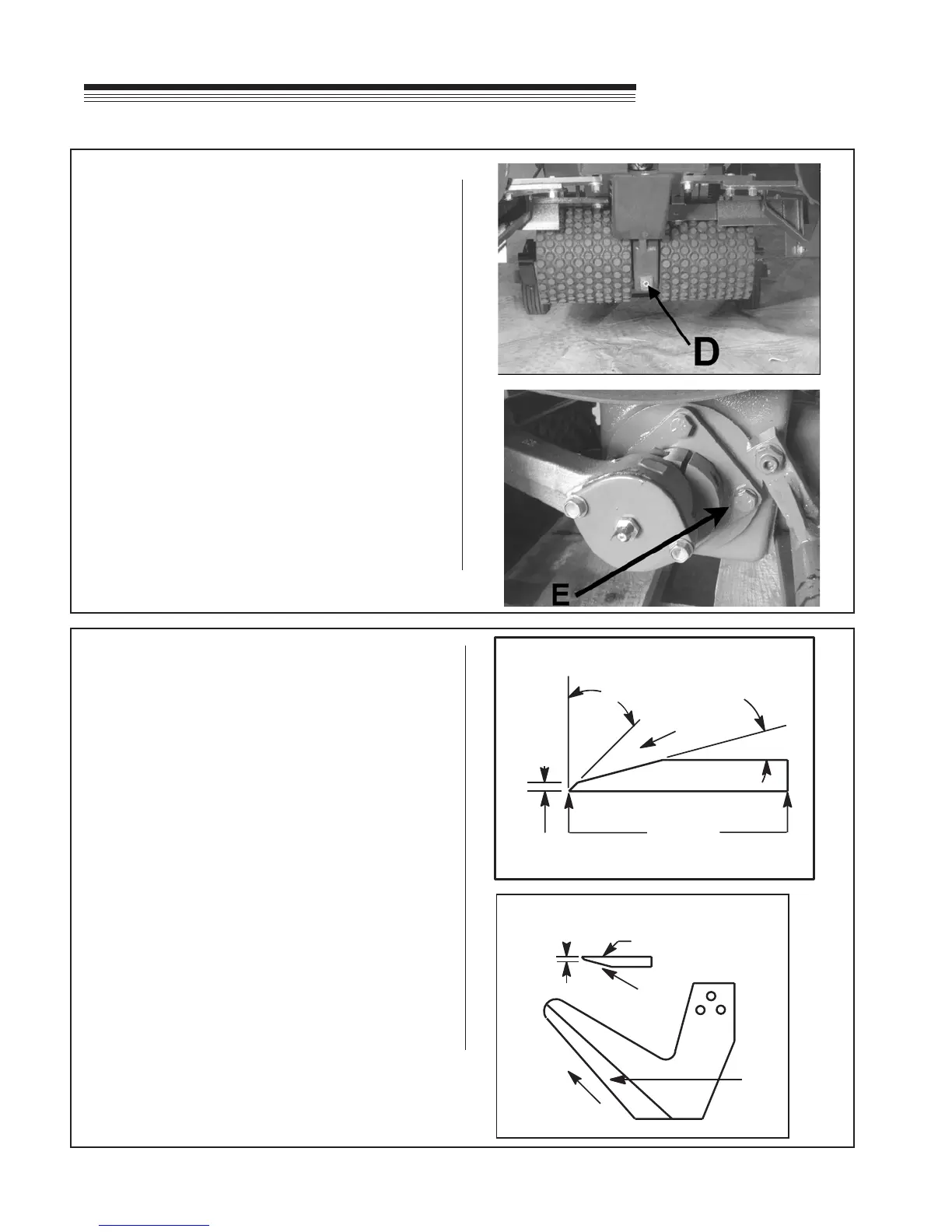

BLADE SHARPENING
1. Hand le bottom blade at 45
O
angle until no at
remains.
2. To keep cutting edge less than 1/16" (1.5mm)
on 45
O
angle, grind milled surface back at 15
O
to
less than 1/16"(1.5mm).
3. Hand le side blades at 45
O
until no at remains.
4. To keep cutting edge less than 1/16"(1.5mm) on
45
O
angle, grind milled surface back at 15
O
to
less than 1/16"(1.5mm).
THIS
1/16"
Maximum
45
O
15
O
FILE
DIRECTION
SURFACE
SMOOTH
(No Burrs)
BOTTOM BLADE
(1.5mm)
MILLED
EDGE
FILE
DIRECTION
1/16" MAX
THIS SURFACE SMOOTH
(No Burrs)
FILE
DIRECTION
SIDE BLADE
(1.5mm)
LUBRICATION CON'TD:
Gear Case:
The gear case is initially lled with 3 1/2 pints (1.7L)
of EP 140 Gear Lube. Do not add to this amount
unless the oil is changed or lost through leakage.
Gear case drain plug D.
Check gear case lubricant level by removing one of
the rear pitman bearing cap screws E. Add EP 140
gear lube through the pipe plug opening in the
gear case cover until oil comes out of the pitman cap
screw hole.
Drive Chain:
Oil every 25 hours.
MAINTENANCE / SERVICE
